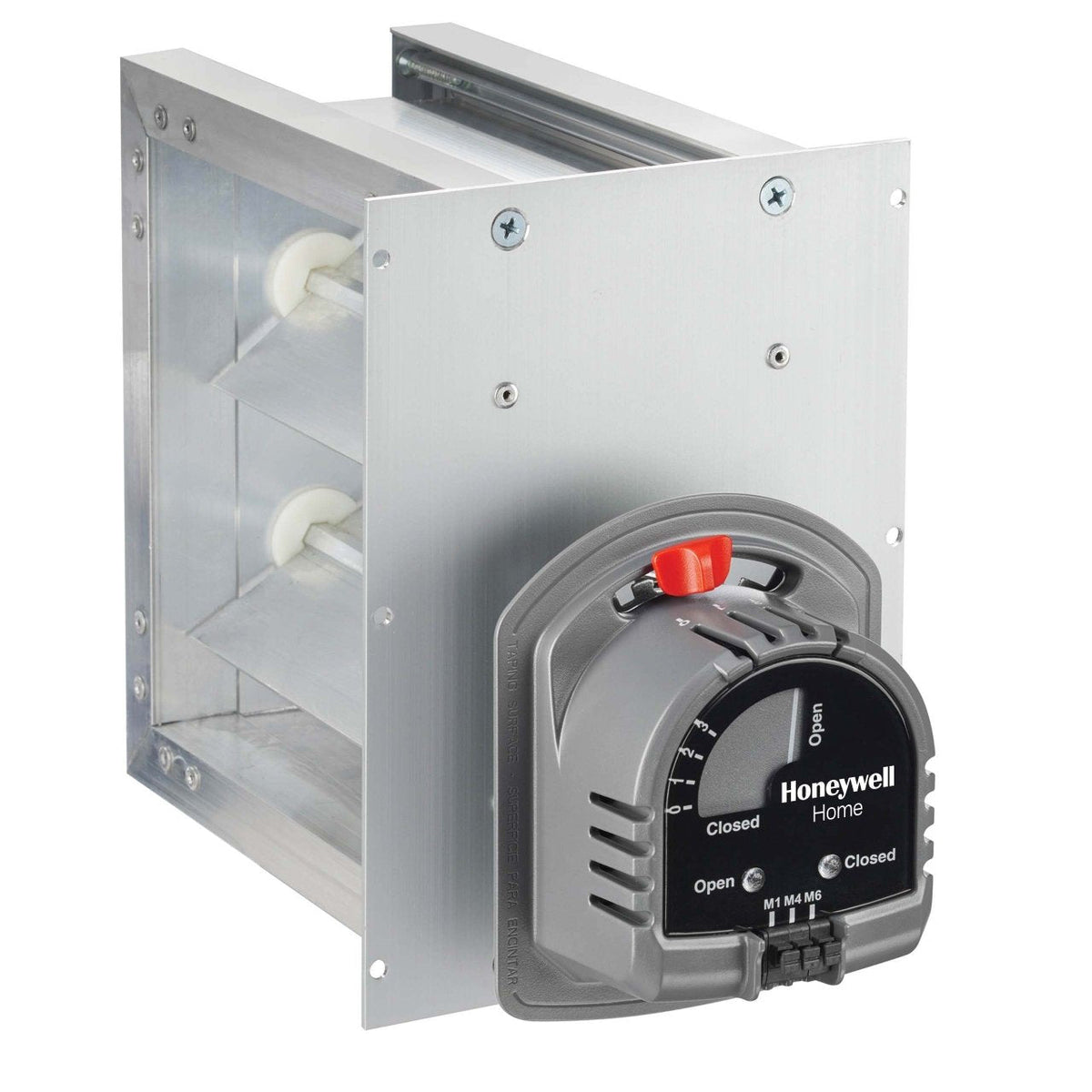

ZD22X8TZ/U TrueZONE Parallel Blade Zone Damper, 22 in x 8 in

ZD22X8TZ/U TrueZONE Parallel Blade Zone Damper, 22 in x 8 in

Part #
ZD22X8TZ/U
UPC
085267730778
$282.87

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Finish
Aluminum

Full specifications 6 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

ZD22X8TZ/U — TrueZONE Parallel Blade Zone Damper, 22 in x 8 in.

Motorized and bypass dampers with zone panels that divide a forced-air system into independently controlled zones.

Specifications

Part Number ZD22X8TZ/U
Damper Duct Shape Type Rectangular
Damper Type Zone
Application Parallel Blade Damper
Damper Material Aluminum
Manufacturer Warranty 5 Years
Product Height 8 in
Product Length 22 in
Product Width 4 in
Color Aluminum
Activation Electric
Actuator Housing Material Molded Plastic
Actuator Power Consumption 8 VA
Actuator Torque 71 in-oz
Blade Material Aluminum
Leakage Less than 1% at 0.5 in WC
Position Indicator Included Yes
Position Indicator Type Damper Position Range Stops, LED indication light for open and close
Range Stop Yes
Range Stop Options 4
UPC 085267730778
Country of Origin MX
