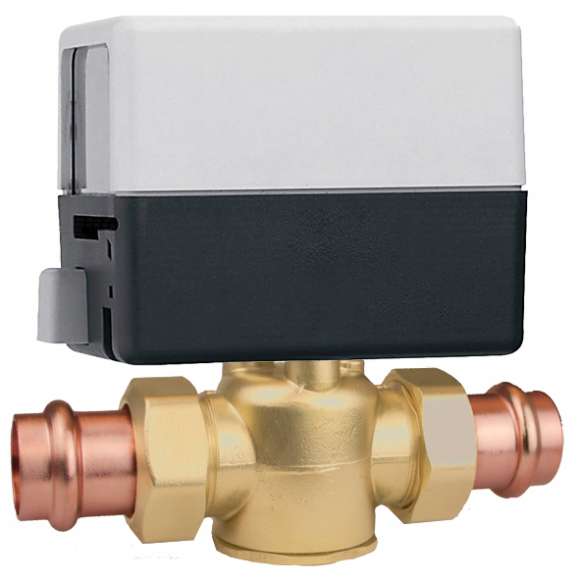

Z44P Z-One 2-Way Zone Valve 1/2" Press, 24V Normally Closed with Auxiliary Switch, 2.5 Cv
- Part #
- Z44P
- UPC
- 8016615551051
- Type
- 2-Way Zone Valve
$235.99
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Size
- 1/2"
- Connection
- Union press
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
Z44P — Z-One 2-Way Zone Valve 1/2" Press, 24V Normally Closed with Auxiliary Switch, 2.5 Cv.
Motorized 2-way and 3-way zone valves, replacement heads and actuators that let one boiler heat several zones independently.
Specifications
| Part Number | Z44P |
|---|---|
| Series | Z-One |
| Type | 2-Way Zone Valve with Actuator |
| Body Pattern | Straight-through, 2-way |
| Size | 1/2" |
| Connections | Union press |
| Voltage | 24V |
| Position | Normally Closed |
| End Switch | Yes |
| Flow Capacity (Cv) | 2.5 |
| Max Close-Off Pressure | 30 psi |
| Max Temperature | 240°F |
| Wiring | 18" leads |
| UPC | 8016615551051 |
Ratings & details
- Technical Data Sheet (PDF)
- Installation & Operation Manual (PDF)
- Submittal Sheet (PDF)
- Technical Bulletin (PDF)
