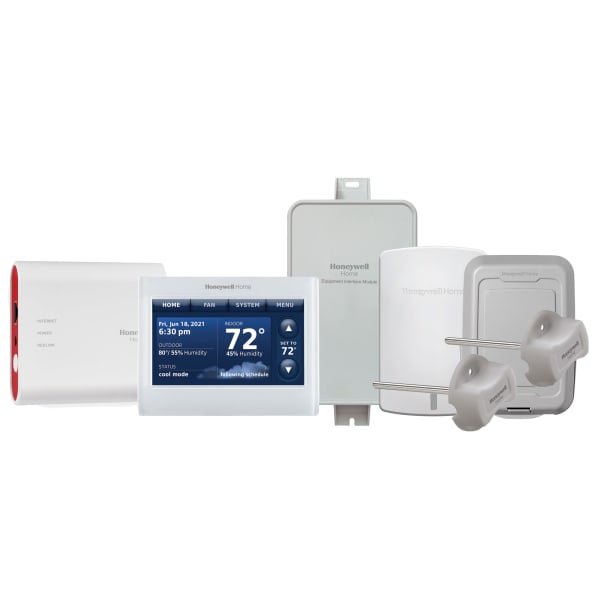

YTHX9421R7001WW/U Prestige® 2-Wire IAQ Kit, HD Color Touchscreen Thermostat, White, with RedLINK® and Sensors

YTHX9421R7001WW/U Prestige® 2-Wire IAQ Kit, HD Color Touchscreen Thermostat, White, with RedLINK® and Sensors

Part #
YTHX9421R7001WW/U
UPC
085267966276
$574.10

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Finish
Front: White, Side: White

Full specifications 6 manufacturer documents

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

YTHX9421R7001WW/U — Prestige® 2-Wire IAQ Kit, HD Color Touchscreen Thermostat, White, with RedLINK® and Sensors.

Smart Wi-Fi, programmable, non-programmable and line-voltage thermostats. Check your system type (conventional, heat pump, millivolt or line voltage) and whether you have a C-wire.

Specifications

Part Number YTHX9421R7001WW/U
Type Prestige thermostat kit
Stages Up to 4 Heat/2 Cool Heat Pumps; Up to 3 Heat/2 Cool Conventional Systems
Supply voltage 18 to 30 Vac
System switch HEAT-OFF-COOL-AUTO-EM.HEAT
Application Up to 3 Heat/2 Cool Conventional Systems; Up to 4 Heat/2 Cool Heat Pumps
Used with RedLINK™ accessories
Dimensions 3 1/2 in High, 4 1/2 in Wide, 7/8 in Deep
UPC 085267966276
Product Features Thermostat is also available in kits for zoned and non-zoned systems
Thermostat Type Programmable, Digital, Low Voltage, RedLINK
Approvals and Standards UL Listed 9R12, File Number: E183695, cCSAus, File Number: LR76030; Compliant to CAN/CSA-C828-06
Smart Home Integration No
Display Type Touch Screen
Display Size 8.06 sq in
Touchscreen Yes
Display Language Display selectable for English, French, or Spanish
Modes of Operation Heating, Cooling
Program Type 7-Day Programmable, Manual / Not Programmed
Energy Star Certified Yes
Alerts and Reminders Filter Change 1, UV Bulb 1
Heat-Cool Changeover Auto, Manual
Power Source Battery Operated
Frequency 50 Hz, 60 Hz
Number of Batteries 1
Battery Size CR2032
Battery Type Lithium Ion
Manufacturer Warranty 5 Years
For Use With RedLINK® accessories
Communication Type RedLINK, WiFi
WiFi No
WiFi Specifications Internet Gateway THM6000R7001/U Provides WiFi Capabilities
Z-Wave No
Z-Wave Specifications Not Applicable
RedLINK Yes
Color Front: White, Side: White
Ambient Operating Temperature (Max) 120 °F, 49 °C
Ambient Operating Temperature (Min) 32 °F, 0 °C
Differential Temperature ± 1 °F, ± 0.5 °C
Backlight Options Adjustable
Fan Function On, Auto, Circulating
Clock Type Year Clock
Demand Response No
Mounting Type Horizontal Mount
Number of Wires 4
Product Height 3.56 in, 91 mm
Product Width 5.81 in, 147 mm
Product Depth 1.5 in, 38 mm
Bulb Diameter Not Applicable
Bulb Length Not Applicable
Capillary Diameter Not Applicable
Hazmat Information LITHIUM METAL BATTERIES in compliance with Section II of PI970
Features ENERGY STAR Certified, Smart Response

Ratings & details

  • Portable Comfort Control (REM5000R1001/U)

Manufacturer documents
