YTH6320R1001/U Thermostat with Air Sensor and Equipment Module
- Part #
- YTH6320R1001/U
- UPC
- 085267329408
$391.90
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Finish
- Premier White®
Full specifications 2 manufacturer documents
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details

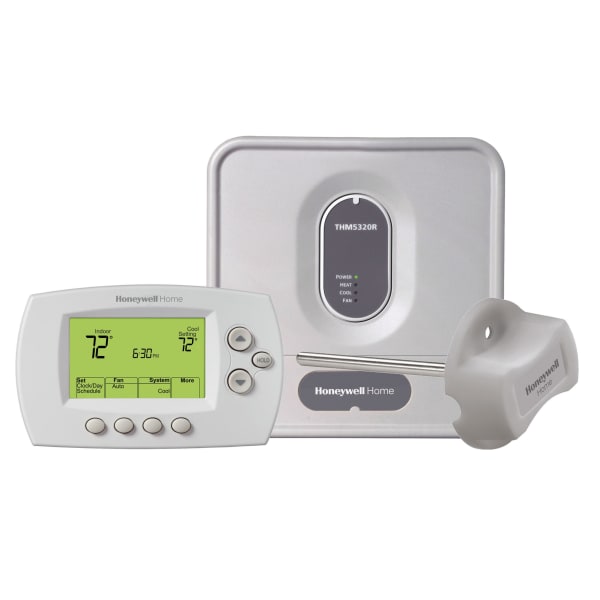

YTH6320R1001/U — Thermostat with Air Sensor and Equipment Module.
Smart Wi-Fi, programmable, non-programmable and line-voltage thermostats. Check your system type (conventional, heat pump, millivolt or line voltage) and whether you have a C-wire.
Specifications
| Part Number | YTH6320R1001/U |
|---|---|
| Type | Programmable thermostat |
| Stages | Up to 3 Heat / 2 Cool Heat Pump or Up to 2 Heat / 2 Cool Conventional |
| Application | Gas, oil, electric, heat pump, forced warm air, hot water, steam or gravity |
| UPC | 085267329408 |
| Thermostat Type | Programmable; Low Voltage; Digital; RedLINK |
| WiFi | No |
| WiFi Specifications | Internet Gateway THM6000R7001/U Provides WiFi Capabilities |
| Color | Premier White® |

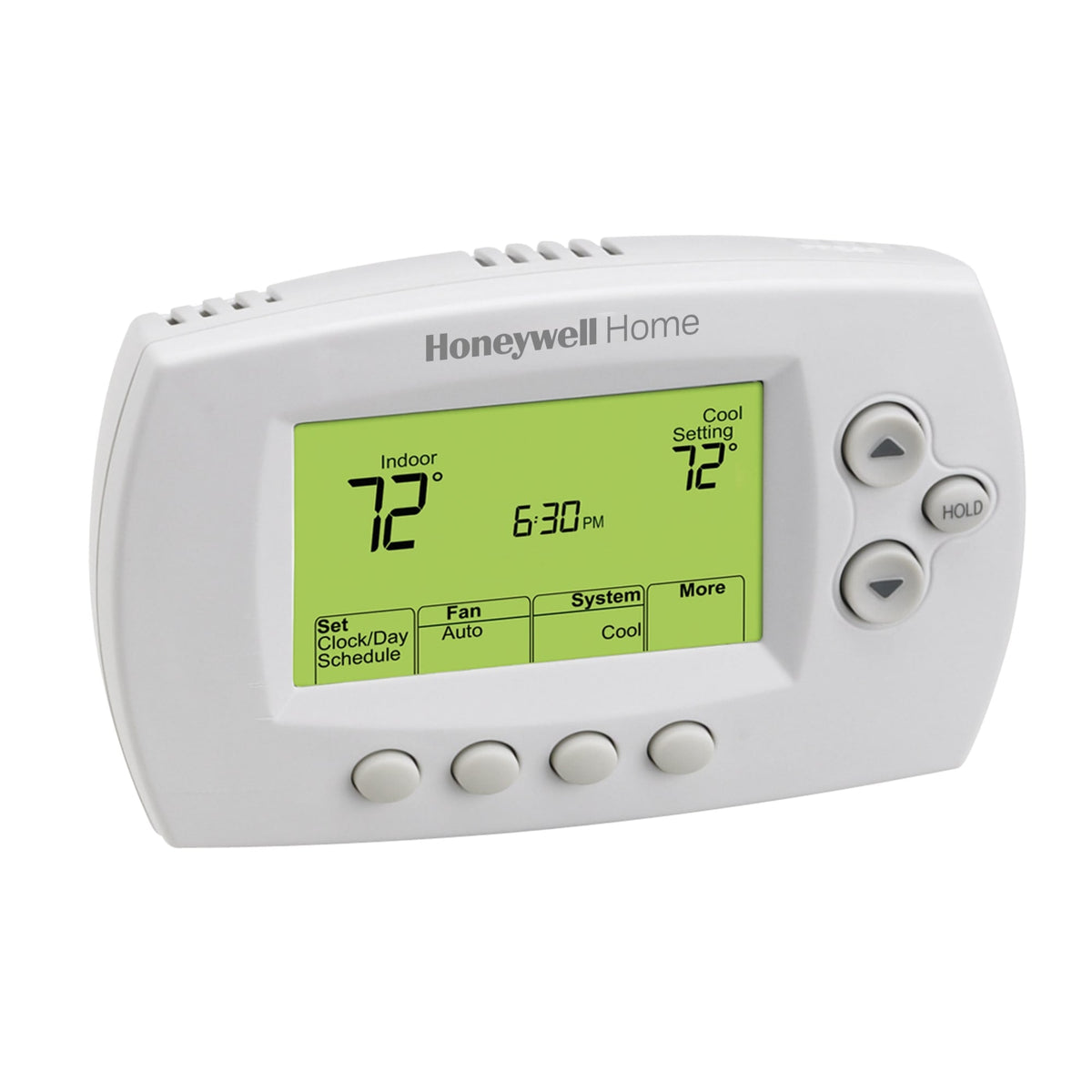

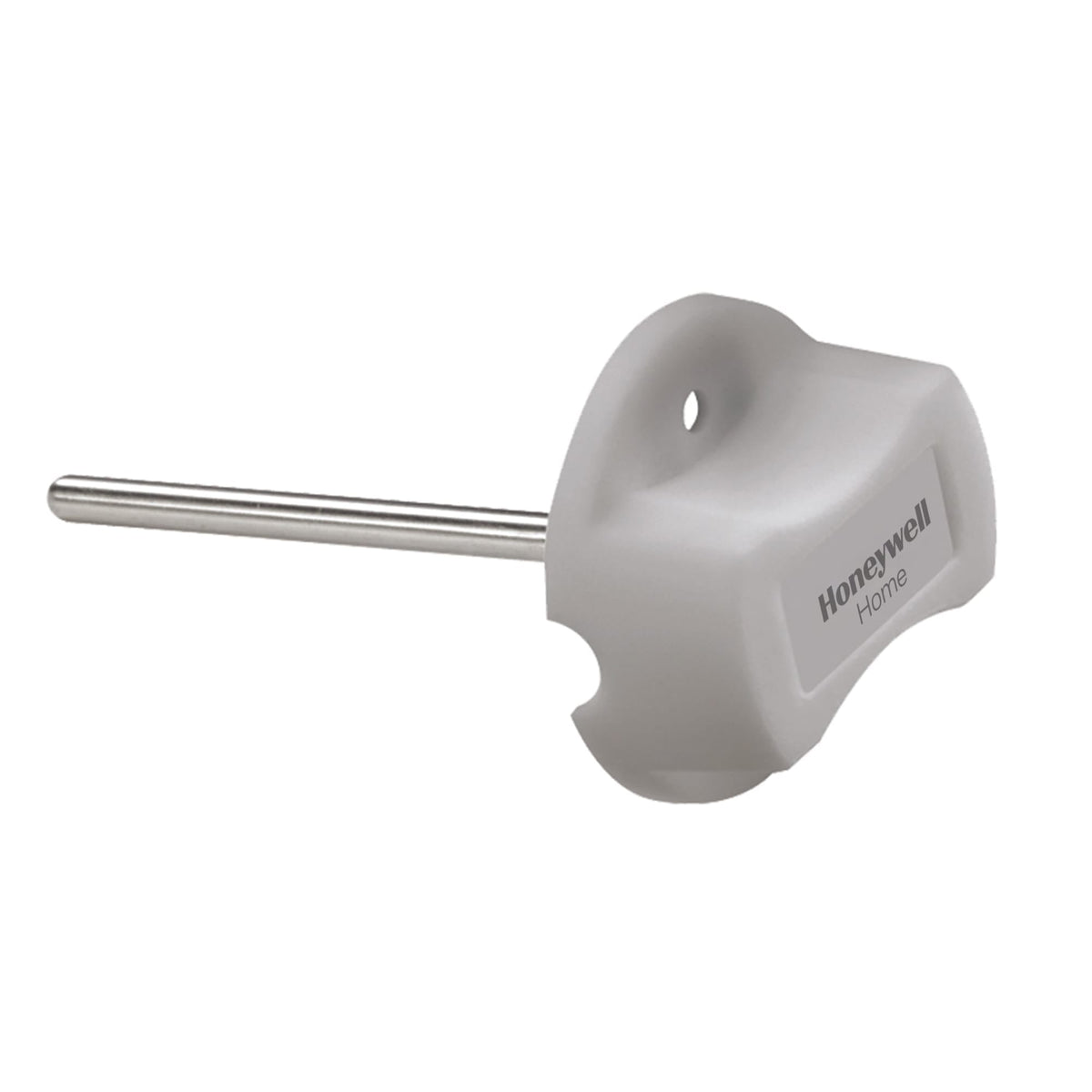

| Includes | C7735A1000 Return Air Sensor; THM5320R1000 Equipment Interface Module; TH6320R1004 Wireless FocusPRO® 5-1-1 Programmable Thermostat |
| Modes of Operation | Heat; Cool; Auto; Off; Emergency Heat |
| Program Type | 5-1-1 Programmable; 5-2 Programmable |
| Alerts and Reminders | Battery Replacement; High Indoor Temperature; Low Indoor Temperature |
| Displayed Information | Indoor Temperature; Status Display |
| Energy Star Certified | No |
| Product Height | 3.56 in; 91 mm |
| Product Width | 5.81 in; 147 mm |
| Product Depth | 1.5 in; 38 mm |
| Manufacturer Warranty | 5 Years |
