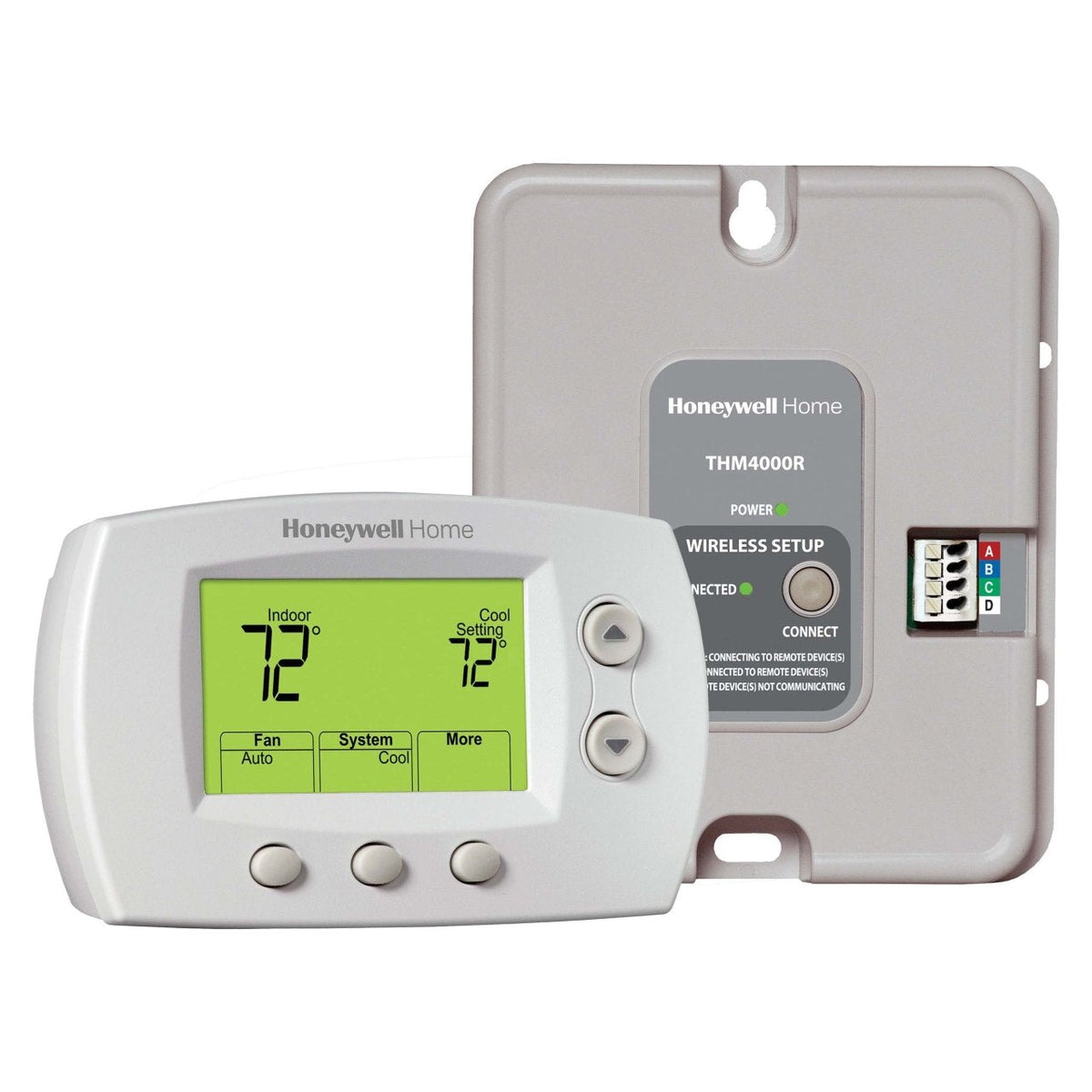

YTH5320R1025/U Wireless Zoning Adapter Kit with Wireless FocusPRO Non-Programmable Thermostat

YTH5320R1025/U Wireless Zoning Adapter Kit with Wireless FocusPRO Non-Programmable Thermostat

Part #
YTH5320R1025/U
UPC
085267331289
$281.36

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Finish
Premier White®

Full specifications 5 manufacturer documents

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

YTH5320R1025/U — Wireless Zoning Adapter Kit with Wireless FocusPRO Non-Programmable Thermostat.

Smart Wi-Fi, programmable, non-programmable and line-voltage thermostats. Check your system type (conventional, heat pump, millivolt or line voltage) and whether you have a C-wire.

Specifications

Part Number YTH5320R1025/U
Application Conventional systems, Heat Pump systems
Thermostat Type Digital, Low Voltage, RedLINK
Stages Up to 3 Heat/2 Cool Heat Pump Systems, Up to 2 Heat/2 Cool Conventional Systems
Display Type LCD Screen
Display Size 7.27 sq in
Touchscreen No
Display Language English
Displayed Information Indoor Temperature, Status Display
Modes of Operation Heat, Cool, Auto, Off, Emergency Heat
Program Type Manual / Not Programmed
Energy Star Certified No
Alerts and Reminders Battery Replacement
Heat-Cool Changeover Auto, Manual
Power Supply Battery
Battery Type Alkaline
Power Source Battery Operated
Battery Life 1 Year
Battery Size AA
Manufacturer Warranty 5 Years
Includes TH5320R1002 Wireless FocusPRO® Non-Programmable Thermostat, THM4000R1000 Wireless Adapter
Communication Type RedLINK
WiFi No
WiFi Specifications Internet Gateway THM6000R7001/U Provides WiFi Capabilities
Z-Wave Specifications Not Applicable
RedLINK Yes
Color Premier White®
Sensor Type Thermistor
Ambient Operating Temperature (Max) 102 °F, 39 °C
Ambient Operating Temperature (Min) 37 °F, 2.8 °C
Operating Relative Humidity (Max) 90% RH non-condensing
Operating Relative Humidity (Min) 5% RH non-condensing
Backlight Options Backlight
Button Color Gray
Running Current 1.0 A
Electrical Connection Type Screw terminals
Mounting Type Horizontal Mount
Number of Fan Speeds 1
Power Supply Frequency 50 Hz, 60 Hz
Set point Temperature (Max) Heating: 90 °F, Cooling: 99 °F, Heating: 32 °C, Cooling: 37 °C
Set point Temperature (Min) Heating: 40 °F, Cooling: 50 °F, Heating: 4.5 °C, Cooling: 10 °C
Shipping and Storage Temperature (Max) 120 °F, 49 °C
Shipping and Storage Temperature (Min) 20 °F, -29 °C
Mounting Location Wall, Internal
Product Height 3.56 in, 91 mm
Product Width 5.81 in, 147 mm
Product Depth 1.5 in, 38 mm
UPC 085267331289
Country of Origin MX
Product Features Smart Home Integration: When used with a RedLINK Gateway it works on the TCC app and has the Smart Home partners for that app., Large display size 5.09 sq. in.

Ratings & details

  • Large display size 5.09 sq. in
