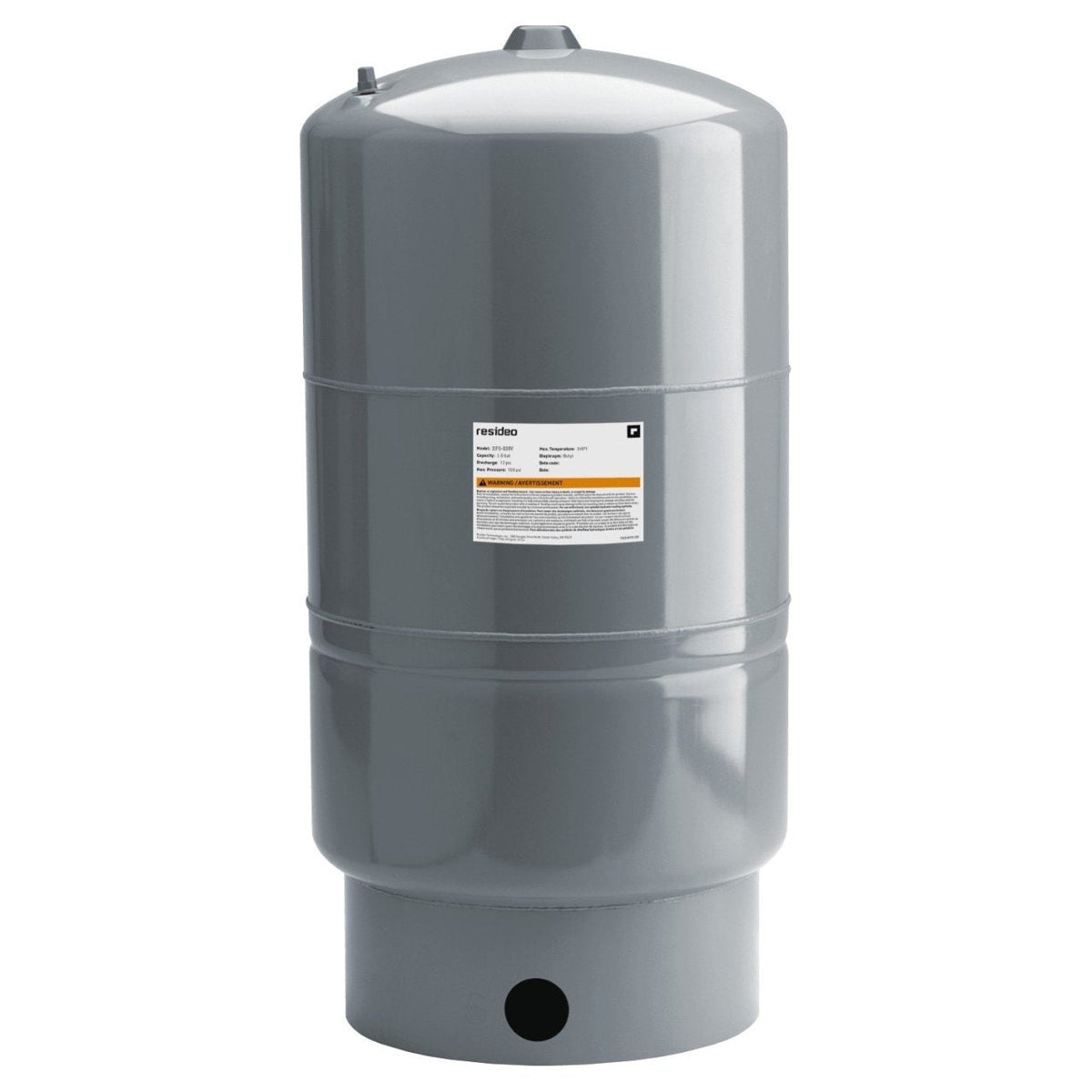

XPS-030V/U XPS Series Thermal Expansion Tank, 14 Gallon Vertical, 1 in Female NPT
- Part #
- XPS-030V/U
- UPC
- 085267260541
$303.01
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Size
- 1 in
- Material
- Steel
- Connection
- Female NPT
- Finish
- Gray
Full specifications 1 manufacturer document
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
XPS-030V/U — XPS Series Thermal Expansion Tank, 14 Gallon Vertical, 1 in Female NPT.
Air and dirt separators, hydraulic separators, magnetic filters, vents, expansion tanks, fill systems and system treatment that protect a hydronic loop.
Specifications
| Part Number | XPS-030V/U |
|---|---|
| Application | Hydronic Volume Expansion |
| Compatible With | Closed Heating Systems |
| Operating Temperature (Max) | 240 °F, 115 °C |
| Tank Safe Operating Pressure (Max) | 100 psi, 689 kPa |
| Connection Size | 1 in |
| Connection Type | Female NPT |
| Connector Type | Female |
| Manufacturer Warranty | 1 Year |
| Color | Gray |
| Body Material | Steel |
| Diaphragm Material | Butyl/EPDM Compound |
| Maximum Acceptance Volume | 11.3 gal, 42.8 L |
| Product Height | 23.88 in, 606 mm |
| Product Weight | 25 lb, 11.4 kg |
| Pre-Charge Pressure | 12 psi, 83 kPa |
| UPC | 085267260541 |
