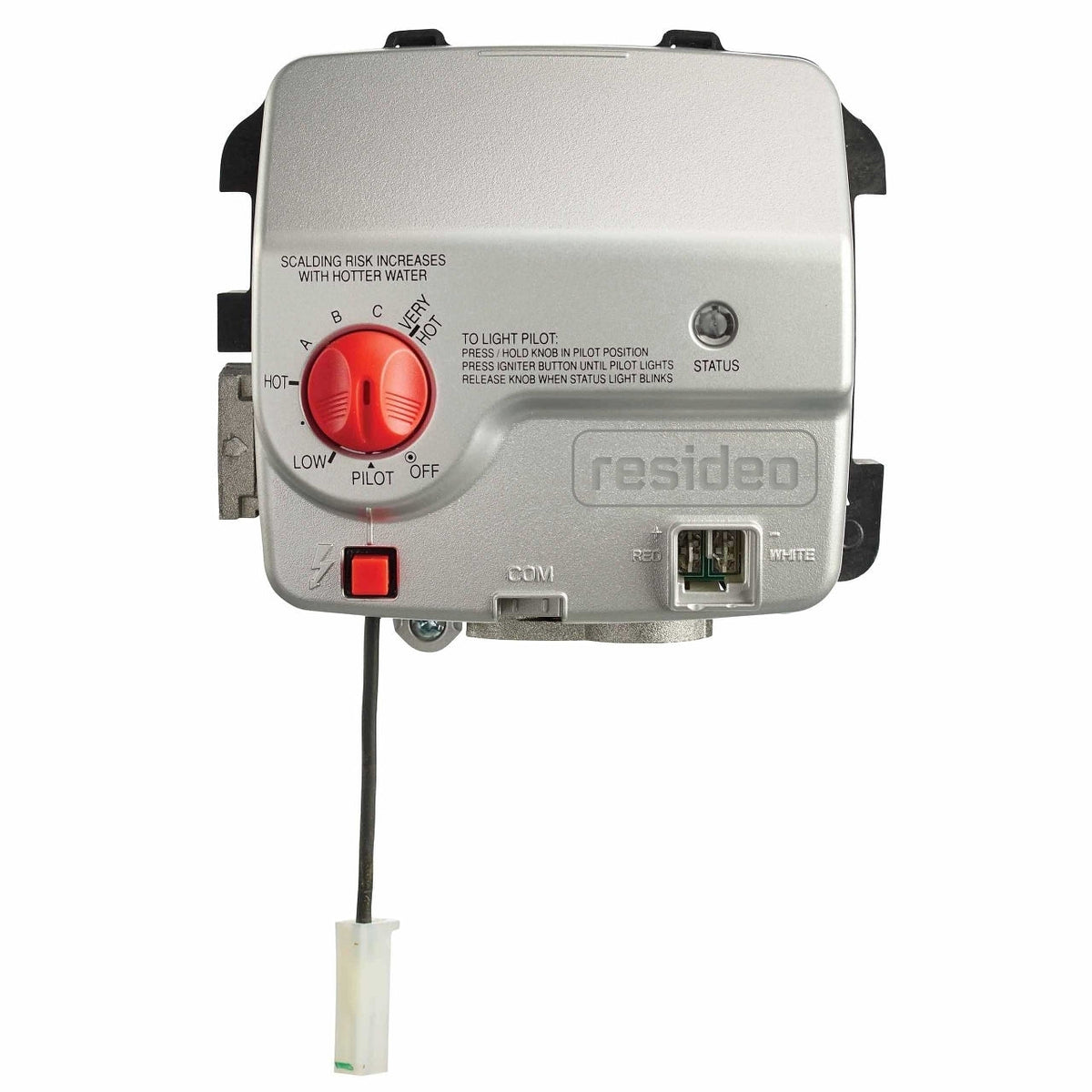

WT8860A1000/U Water Heater Gas Valve for Bradford White Ultra Low NOx Atmospheric, 2 in Well
- Part #
- WT8860A1000/U
- UPC
- 194159003514
- Type
- Gas Valves
$252.27
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Finish
- Silver
Full specifications 2 manufacturer documents
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
WT8860A1000/U — Water Heater Gas Valve for Bradford White Ultra Low NOx Atmospheric, 2 in Well.
Gas valves, ignition modules, igniters, flame sensors, thermocouples and oil primary controls. Match fuel type, voltage and inlet/outlet size.
Specifications
| Part Number | WT8860A1000/U |
|---|---|
| Application | Water Heater Control |
| Approvals and Standards | CSA Certified: ANSI Z21.20, ANSI Z21.23, ANSI Z21.78, ANSI Z21.87, CAN/CSA-C22.2 No. 199-M89, CAN1-6.6-M78, CSA 4.6, CSA 6.20 |
| Compatible With | Standing Pilots |
| Capacity (Min) | 30 Btuh |
| Capacity (Max) | 100 Btuh |
| Ignition Type | Standing Pilot with Peizo |
| Type of Fuel | Natural Gas |
| Sensor Type | NTC thermistor |
| Body Pattern | 90 degree |
| Inlet Pressure (Max) | 5.0 in w.c. |
| Control Input Voltage (Min) | 850 mV dc, open circuit |
| Control Input Voltage (Max) | 350 mV dc, open circuit |
| Mounting Type | Mount in the upright position |
| Inlet Connection Size | 1/2 in |
| Inlet Connection Type | NPT |
| Outlet Connection Size | 1/2 in |
| Outlet Connection Type | Inverted Flare |
| Set point Temperature (Min) | 55 °F, 13 °C |
| Set point Temperature (Max) | 155 °F, 68 °C |
| TCO Cutout Temperature | 189 °F, 87 °C |
| Shipping and Storage Temperature (Min) | 32 °F, 0 °C |
| Ambient Operating Temperature (Max) | 150 °F, 66 °C |
| Ambient Operating Temperature (Min) | 32 °F, 0 °C |
| Shipping and Storage Temperature (Max) | 150 °F, 66 °C |
| Operating Relative Humidity (Max) | 95% Non-condensing at 104 °F, 95% Non-condensing at 40 °C |
| Manufacturer Warranty | 1 Year |
| Color | Silver |
| Product Weight | 2.17 lb |
| UPC | 194159003514 |
| Country of Origin | MX |
| Product Features | ULN water heaters are primarily sold in CA and UT |
