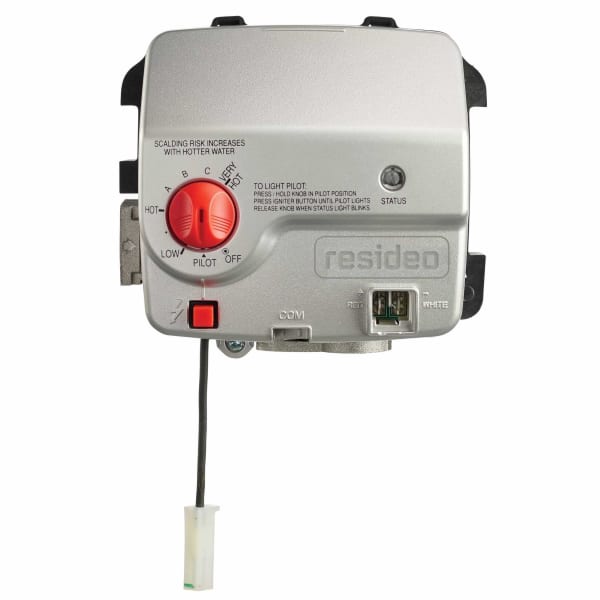

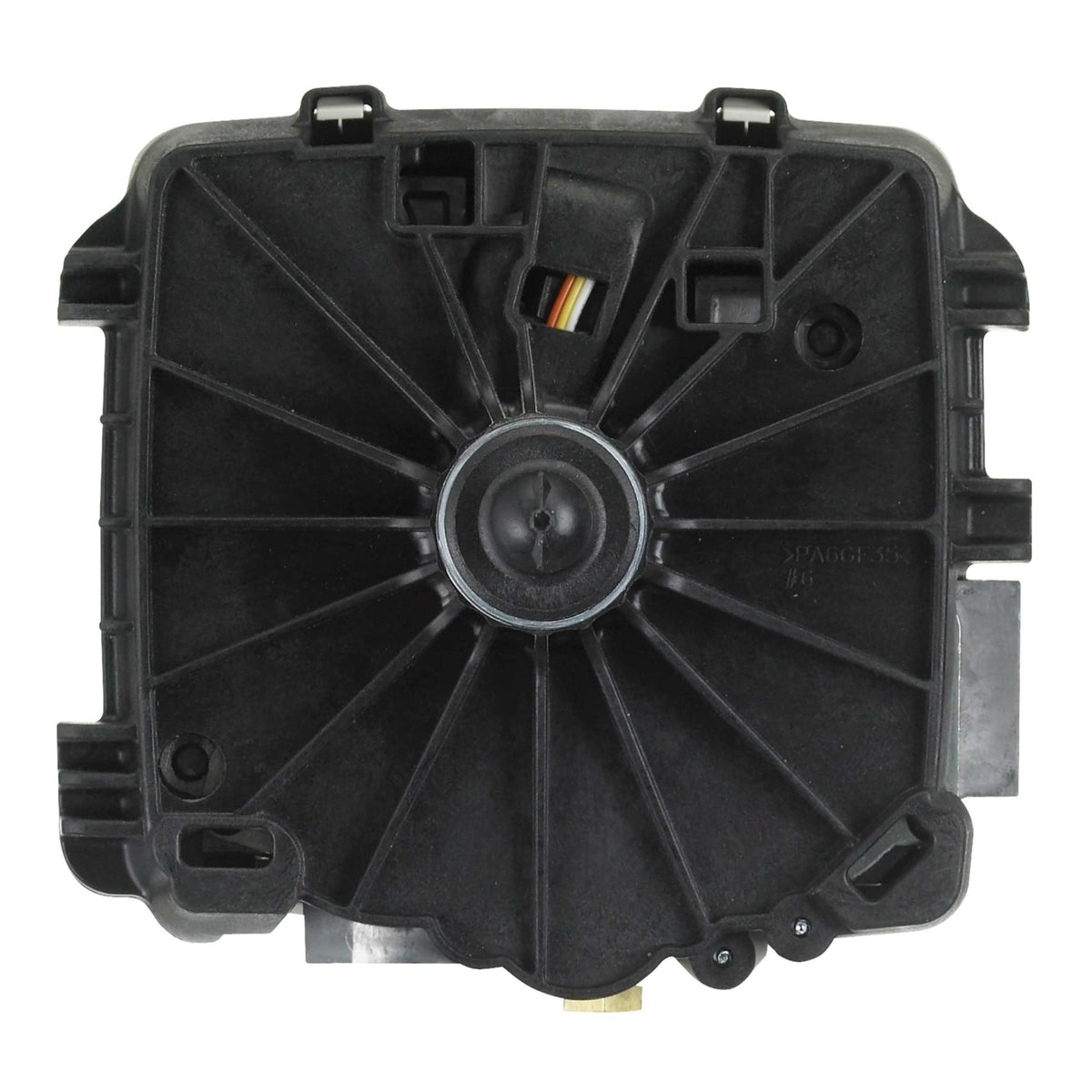

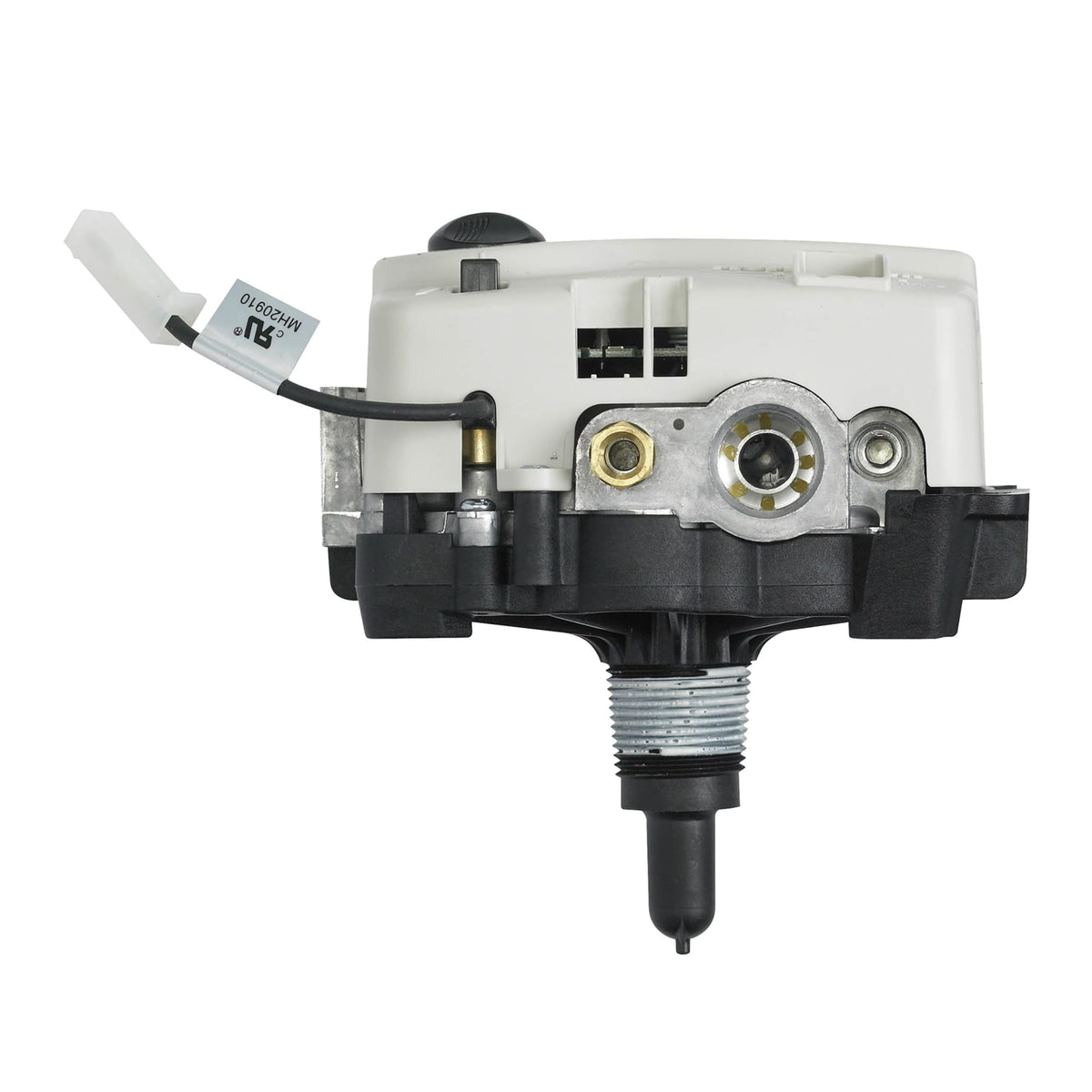

WT8840A1500/U Replacement Valve for Bradford Standard NoX Water Heaters
WT8840A1500/U Replacement Valve for Bradford Standard NoX Water Heaters
WT8840A1500/U Replacement Valve for Bradford Standard NoX Water Heaters

WT8840A1500/U Replacement Valve for Bradford Standard NoX Water Heaters

Part #
WT8840A1500/U
UPC
085267600972
$210.23

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Finish
Silver

Full specifications 5 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

WT8840A1500/U — Replacement Valve for Bradford Standard NoX Water Heaters.

Gas valves, ignition modules, igniters, flame sensors, thermocouples and oil primary controls. Match fuel type, voltage and inlet/outlet size.

Specifications

Part Number WT8840A1500/U
Type Water heater gas control valve
Fits Bradford White
Emissions Standard NOx
UPC 085267600972
Application Water Temperature Sensing
Product Features Replaces WV8840A1050, WV8840A1051, 222-47463-02A, 222-47463-02E, or 239-47463-02
Approvals and Standards CSA Certified: ANSI Z21.20, ANSI Z21.23, ANSI Z21.78, ANSI Z21.87, CAN/CSA-C22.2 No. 199-M89, CAN1-6.6-M78, CSA 4.6, CSA 6.20
Compatible With Standing Pilots
Includes NTC Temperature Sensor
Capacity (Min) 30 Btuh
Capacity (Max) 75 Btuh
Ignition Type Standing Pilot with Peizo
Type of Fuel Natural Gas
Sensor Type NTC thermistor
Body Pattern 90 degree
Inlet Pressure (Max) 0.5 psi, 14.0 in w.c.
Control Input Voltage (Min) 850 mV dc, open circuit
Control Input Voltage (Max) 350 mV dc, open circuit
Mounting Type Mount in the upright position
Inlet Connection Size 1/2 in
Inlet Connection Type NPT
Outlet Connection Size 1/2 in
Outlet Connection Type Inverted Flare
Set point Temperature (Min) 55 °F, 13 °C
Set point Temperature (Max) 155 °F, 68 °C
TCO Cutout Temperature 189 °F, 87 °C
Ambient Operating Temperature (Max) 150 °F, 66 °C
Ambient Operating Temperature (Min) 32 °F, 0 °C
Operating Relative Humidity (Max) 95% Non-condensing at 104 °F, 95% Non-condensing at 40 °C
Manufacturer Warranty 1 Year
Color Silver
Product Weight 2.2 lb
