VU54S2024/B Three-Way Fan Coil Valve, 1 in Sweat, 7.0 Cv
- Part #
- VU54S2024/B
$100.39
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Material
- Brass
- Connection
- Sweat
Full specifications 2 manufacturer documents
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details

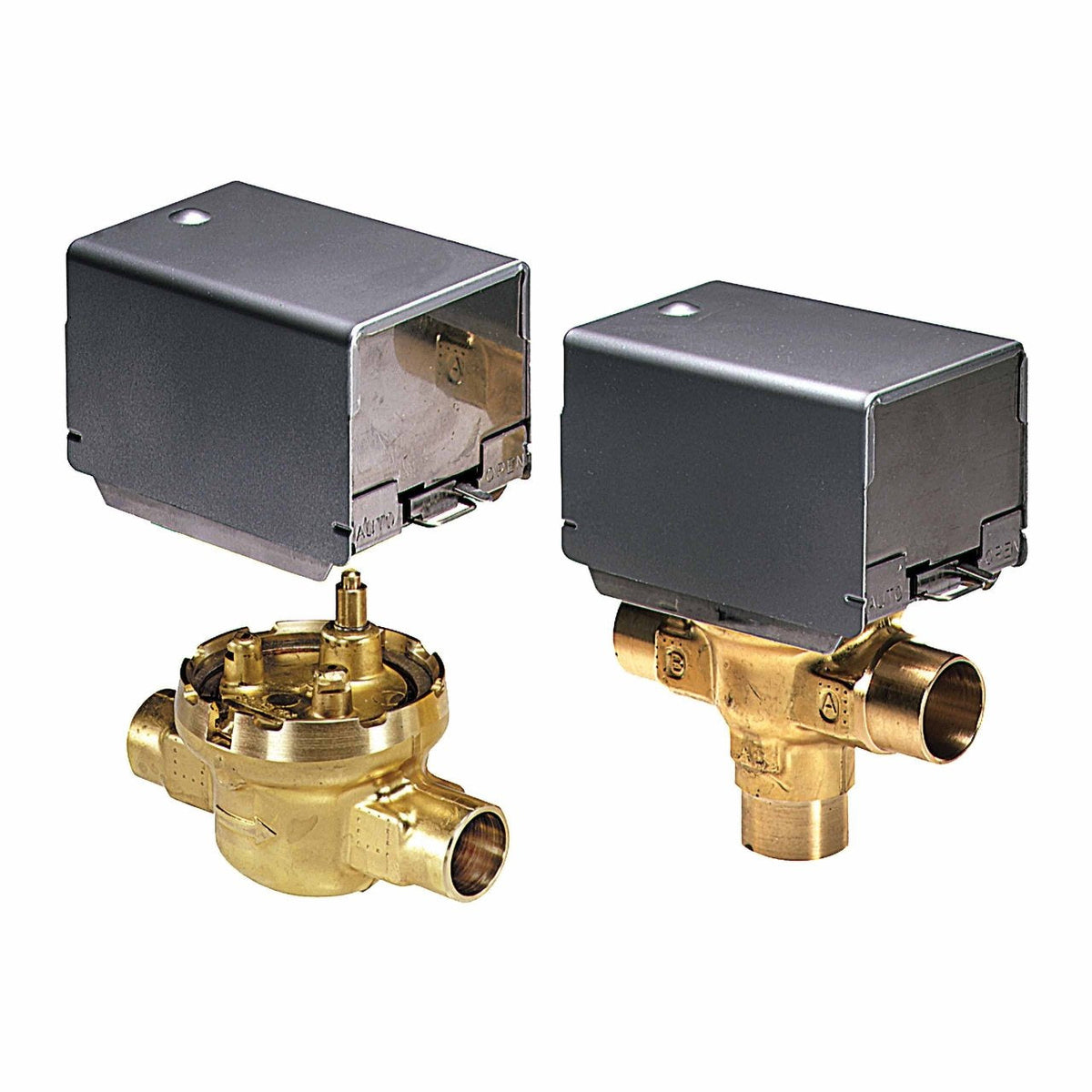

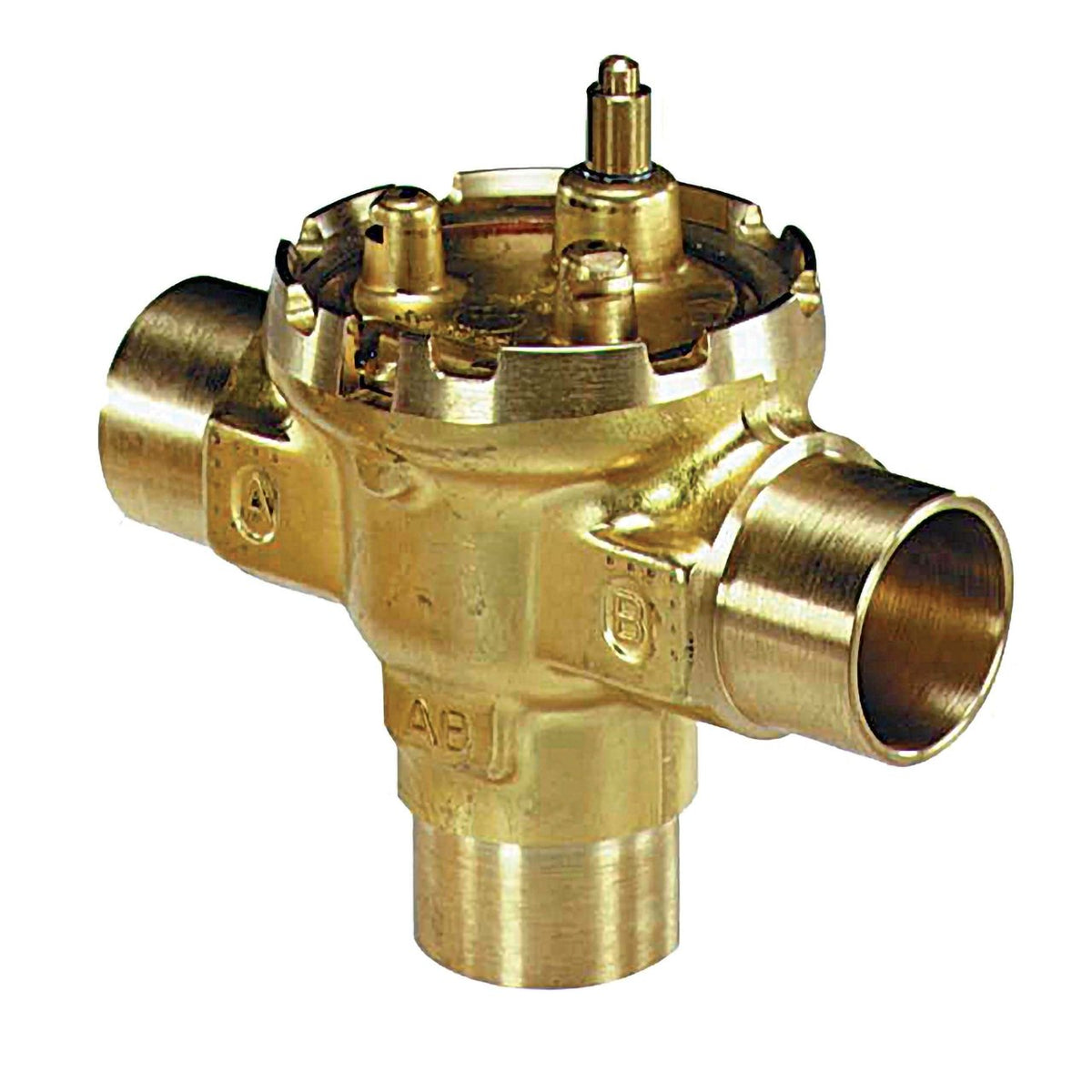

VU54S2024/B — Three-Way Fan Coil Valve, 1 in Sweat, 7.0 Cv.
Motorized 2-way and 3-way zone valves, replacement heads and actuators that let one boiler heat several zones independently.
Specifications
| Part Number | VU54S2024/B |
|---|---|
| Valve Ball Material | Buna-N (NBR) Rubber |
| Valve Disc Material | Buna-N (NBR) Rubber |
| Connection Type | Sweat |
| Differential pressure for close-off (Max) | 10 psi, 69 kPa |
| Flow Coefficient | 7.0 Cv; 6.5 Kvs |
| Media Temperature (Min) | 34 °F at 200 °F Fluid, 1 °C at 94°C Fluid |
| Media Temperature (Max) | 125 °F at 200 °F Fluid, 52 °C at 94°C Fluid |
| Operating Pressure (Max) | 300 psi, 2000 kPA, PN20 |
| Valve Body Material | Brass |
| Valve Body Pattern | Three-way, A-AB-B |
| Valve Flow Characteristic | Quick Opening |
| Valve Seat Material | Brass |
| Valve Start Position | Diverting |
| Valve Stem Material | Brass |
| Country of Origin | HU |
