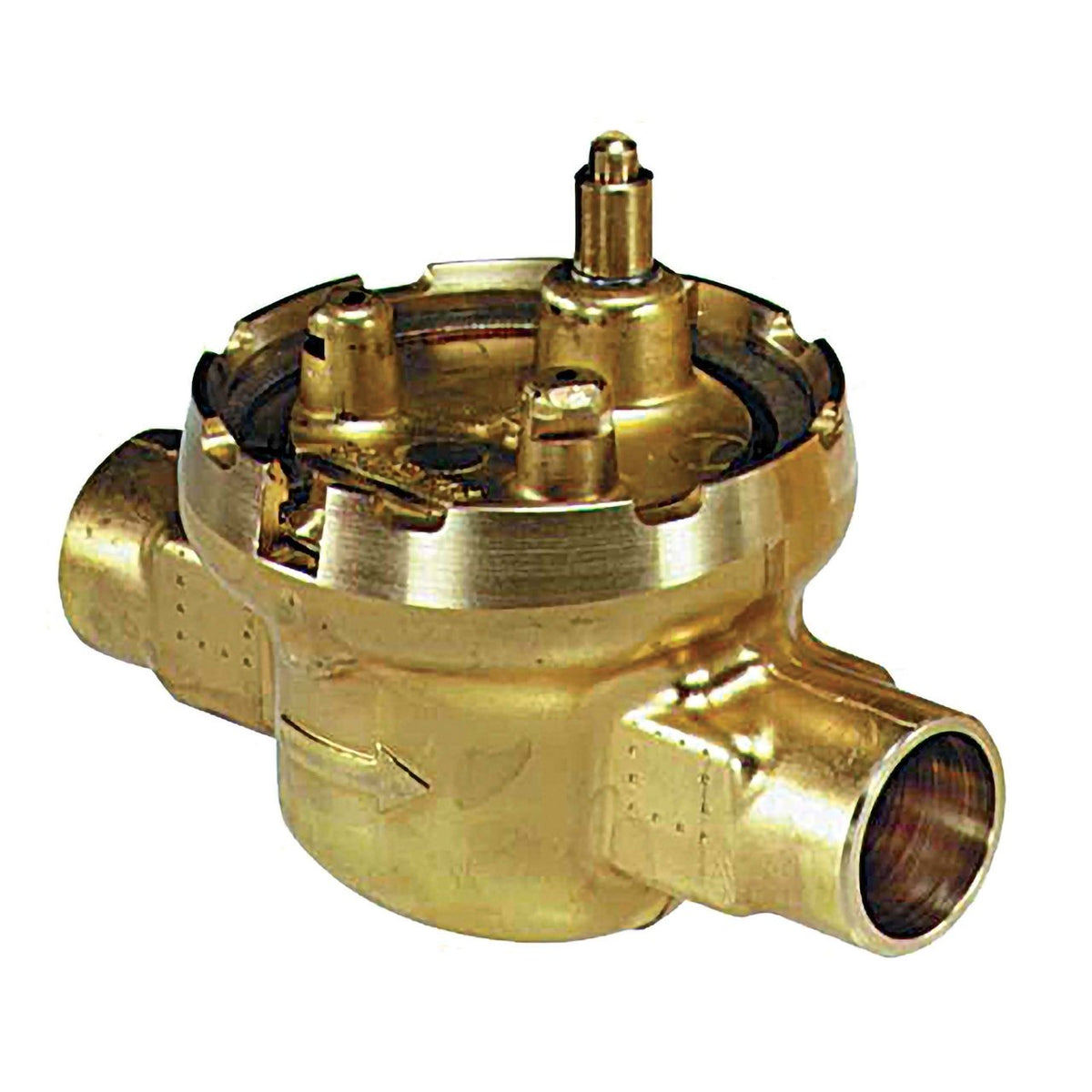

VU53N1041/U Two-Way Fan Coil Valve, 1/2 in NPT, 1.0 Cv
- Part #
- VU53N1041/U
- UPC
- 085267831390
$49.67
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Material
- Brass
- Connection
- Female NPT
Full specifications 2 manufacturer documents
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
VU53N1041/U — Two-Way Fan Coil Valve, 1/2 in NPT, 1.0 Cv.

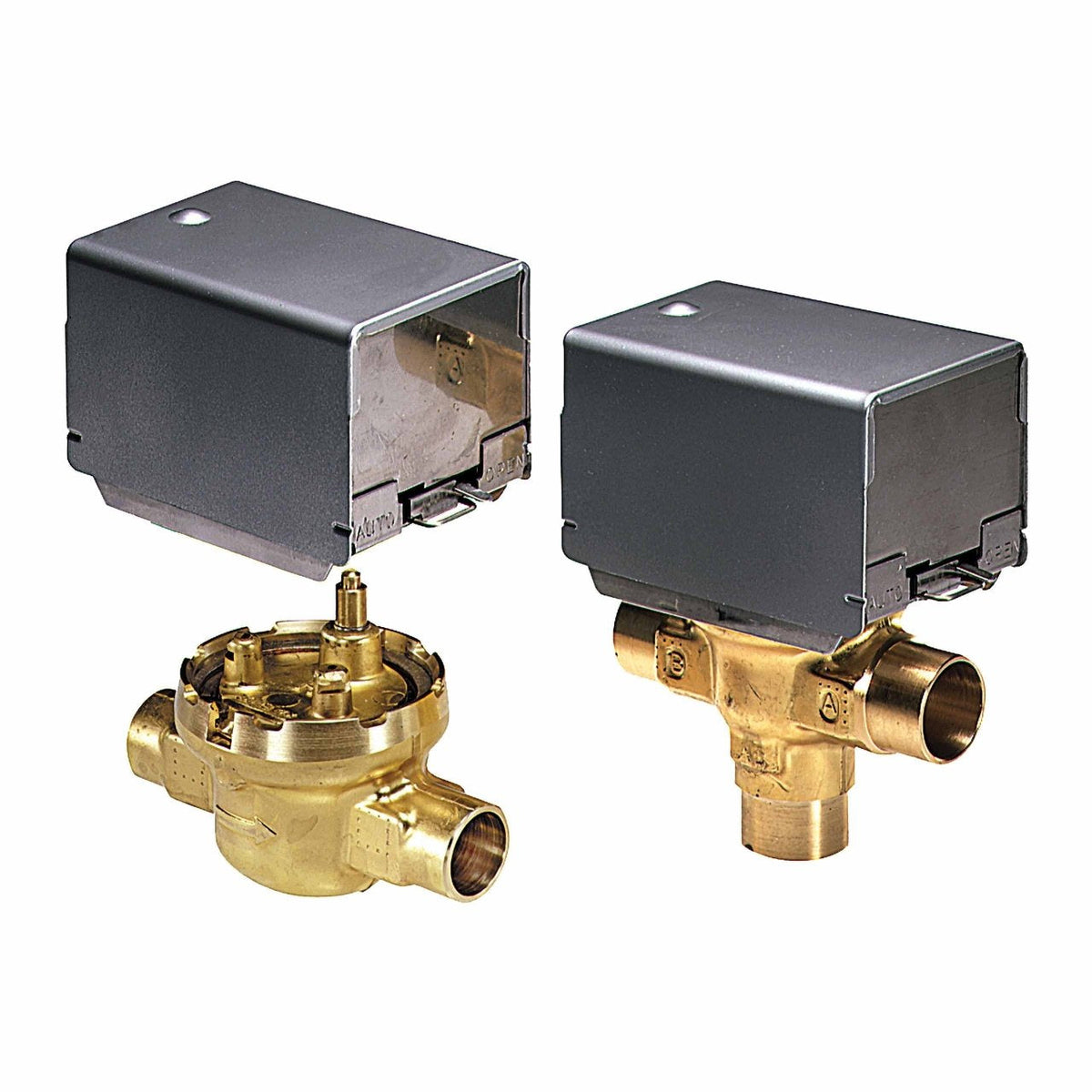

Motorized 2-way and 3-way zone valves, replacement heads and actuators that let one boiler heat several zones independently.
Specifications
| Part Number | VU53N1041/U |
|---|---|
| Valve Ball Material | Buna-N (NBR) Rubber |
| Valve Disc Material | Buna-N (NBR) Rubber |
| Connection Type | Female NPT |
| Differential pressure for close-off (Max) | 50 psi, 345 kPa |
| Flow Coefficient | 1.0 Cv; 0.9 Kvs |
| Media Temperature (Min) | 34 °F at 200 °F Fluid, 1 °C at 94°C Fluid |
| Media Temperature (Max) | 125 °F at 200 °F Fluid, 52 °C at 94°C Fluid |
| Operating Pressure (Max) | 300 psi, 2000 kPA, PN20 |
| Valve Body Material | Brass |
| Valve Body Pattern | Two-way, Straight Through |
| Valve Flow Characteristic | Quick Opening |
| Valve Seat Material | Brass |
| Valve Start Position | Normally Closed |
| Valve Stem Material | Brass |
| UPC | 085267831390 |
| Country of Origin | HU |
