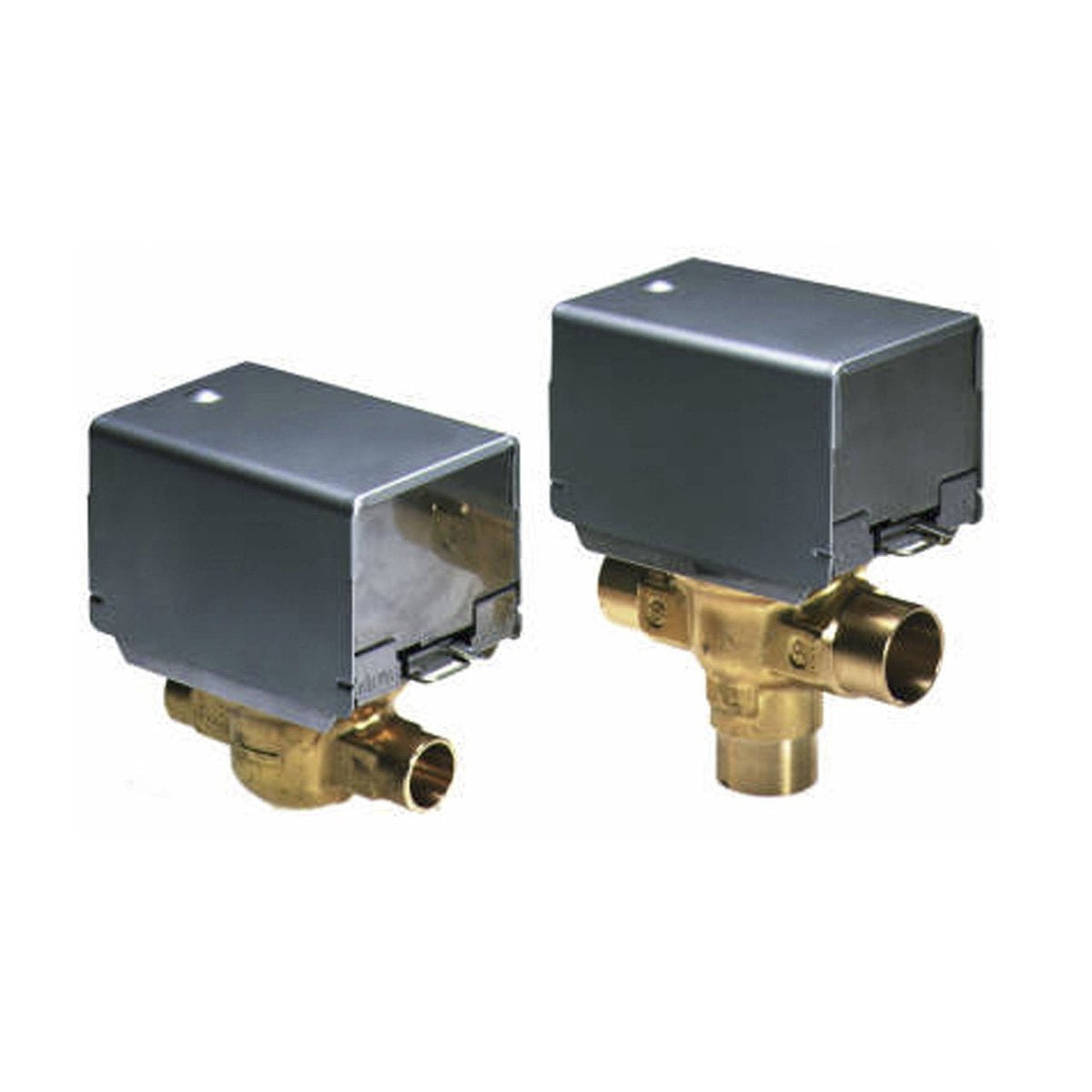

VU444A1155/U Two-Position Actuator for VU52 N.O. and VU54 Valves, 120 VAC 60 Hz, Nickel-Plated Motor
- Part #
- VU444A1155/U
- UPC
- 085267834520
$146.66
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Connection
- Leads
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
VU444A1155/U — Two-Position Actuator for VU52 N.O. and VU54 Valves, 120 VAC 60 Hz, Nickel-Plated Motor.
Motorized 2-way and 3-way zone valves, replacement heads and actuators that let one boiler heat several zones independently.
Specifications
| Part Number | VU444A1155/U |
|---|---|
| Application | For controlling the flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors |
| For Use With | 2-Way NO (VU52), 3-Way VU Valve Body (VU54) |
| Compatible With | VU52, VU53, and VU54 Fan Coil Valves |
| Control Signal | Two position; SPST |
| Ambient Operating Temperature (Min) | 34 °F at 200 °F Fluid, 1 °C at 93 °C Fluid |
| Ambient Operating Temperature (Max) | 125 °F at 200 °F Fluid, 52 °C at 93 °C Fluid |
| Shipping and Storage Temperature (Min) | 40 °F, -40 °C |
| Shipping and Storage Temperature (Max) | 150 °F, 65 °C |
| Fail-Safe Operation Type | Spring Return |
| Spring Return Timing | 6 Sec |
| Supply Voltage | 120 V AC |
| Power Supply Frequency | 60 Hz |
| Current Draw | 0.07 A |
| Fire and Smoke Rated | No |
| Manual Override Included | Yes |
| Connection Length | 6 in, 0.15 m |
| Connection Type | Leads |
| Stroke (Max) | 45 ° |
| Product Height | 2.38 in, 62 mm |
| Product Width | 3.5 in, 88 mm |
| Product Depth | 2 3/8 in, 60 mm |
| Housing Material | Stainless Steel Case, Aluminum Cover |
| UPC | 085267834520 |
| Country of Origin | HU |
| Number of Internal Auxiliary Switches | 0 |
Ratings & details
- Compact construction for easy installation
- One-button, quick release
- Secure 3-point, metal latch to valve body
- Spring return operation
- Stainless steel case and aluminum cover
- Rust-proof nickel-plated motors available
- Line or low voltage, rust-resistant motors
