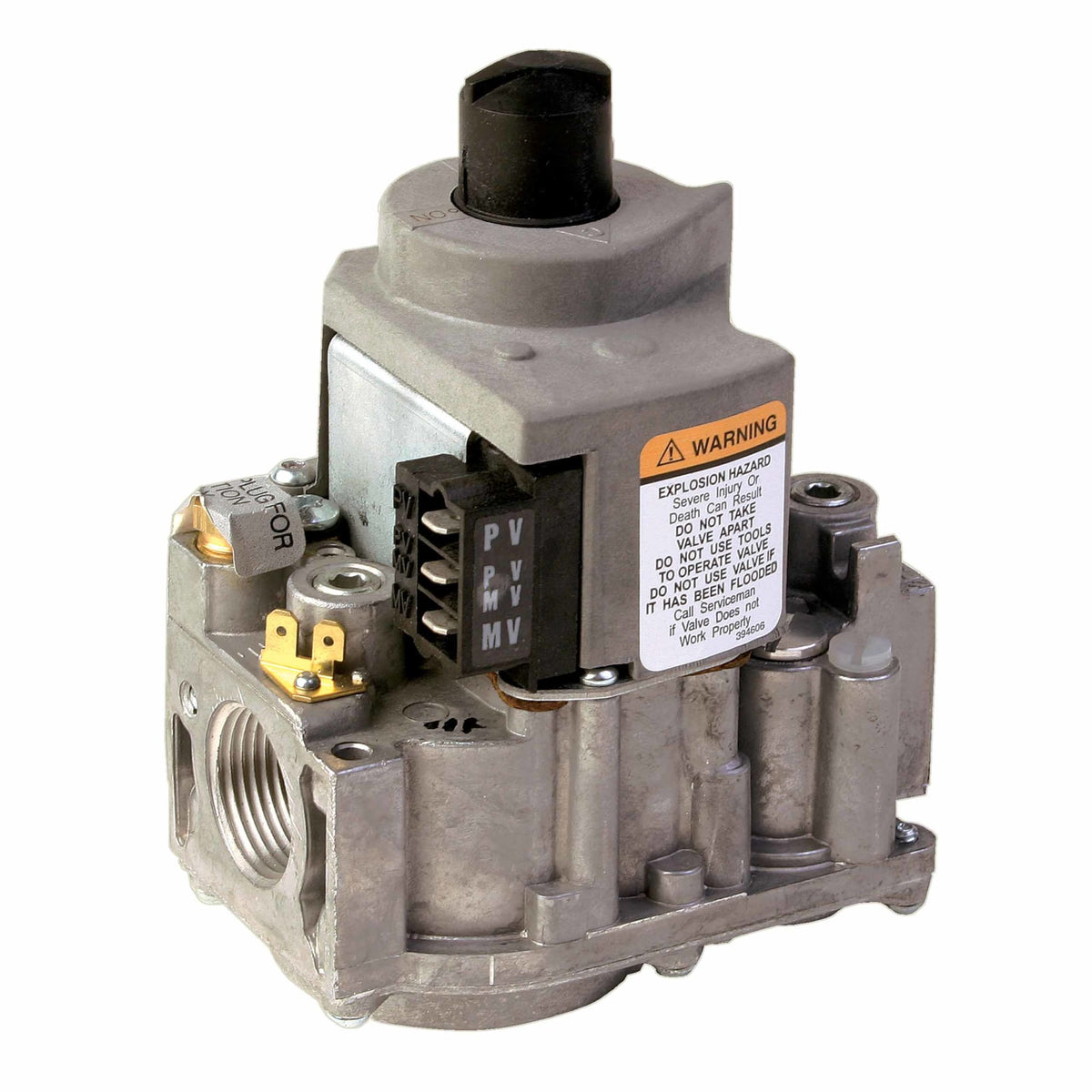

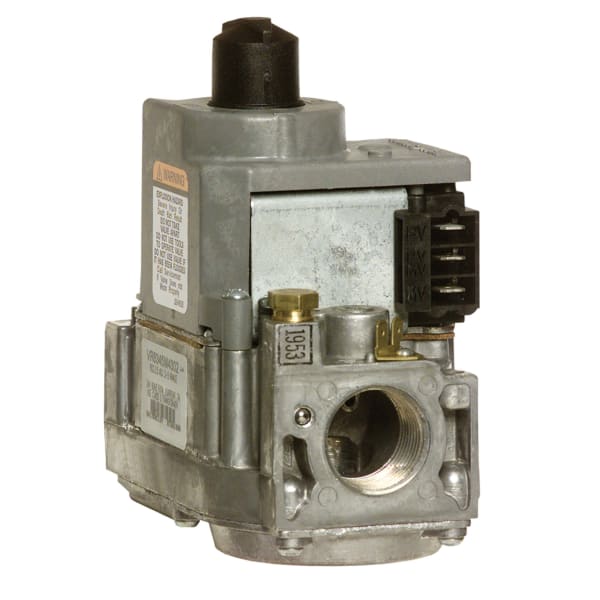

VR8345M4302/U Gas Valve for Direct Spark, Hot Surface or Intermittent Pilot Ignition
VR8345M4302/U Gas Valve for Direct Spark, Hot Surface or Intermittent Pilot Ignition

VR8345M4302/U Gas Valve for Direct Spark, Hot Surface or Intermittent Pilot Ignition

Part #
VR8345M4302/U
UPC
085267780117
$187.04

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Full specifications 8 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

VR8345M4302/U — Gas Valve for Direct Spark, Hot Surface or Intermittent Pilot Ignition.

Gas valves, ignition modules, igniters, flame sensors, thermocouples and oil primary controls. Match fuel type, voltage and inlet/outlet size.

Specifications

Part Number VR8345M4302/U
Type Gas control valve
Ignition system Universal
UPC 085267780117
Shipping Weight 2.0 lb
Application Slow Opening with Convertible Ignition
Ignition Type Intermittent Pilot, Direct Burner ignition
Type of Fuel Natural Gas, LP with included conversion kit
Regulator Standard
Capacity (Max) 415,000 BTU/h Natural Gas
Capacity (Min) 30,000 BTU/h Natural Gas
Operating Voltage 24 V AC
Inlet Connection Size 3/4 in
Outlet Connection Size 3/4 in
Regulation Type Standard Opening
For Use With Natural, manufactured, or liquefied petroleum gas
Includes Two 3/4 in x 1/2 in Reducer Brushings, Natural to LP Gas Conversion Kit
Valve Body Pattern Straight Through
Ambient Operating Temperature (Max) 175 °F, 79 °C
Ambient Operating Temperature (Min) 40 °F, -40 °C
Mounting Type 0° to 90° in any direction from the upright position of the gas control knob, including vertically
Operating Frequency 50 Hz, 60 Hz
Pilot Gas Outlet Compression fitting for 1/4 in. OD tubing
Product Height 5.38 in
Product Length 2.69 in
Product Width 4.06 in
