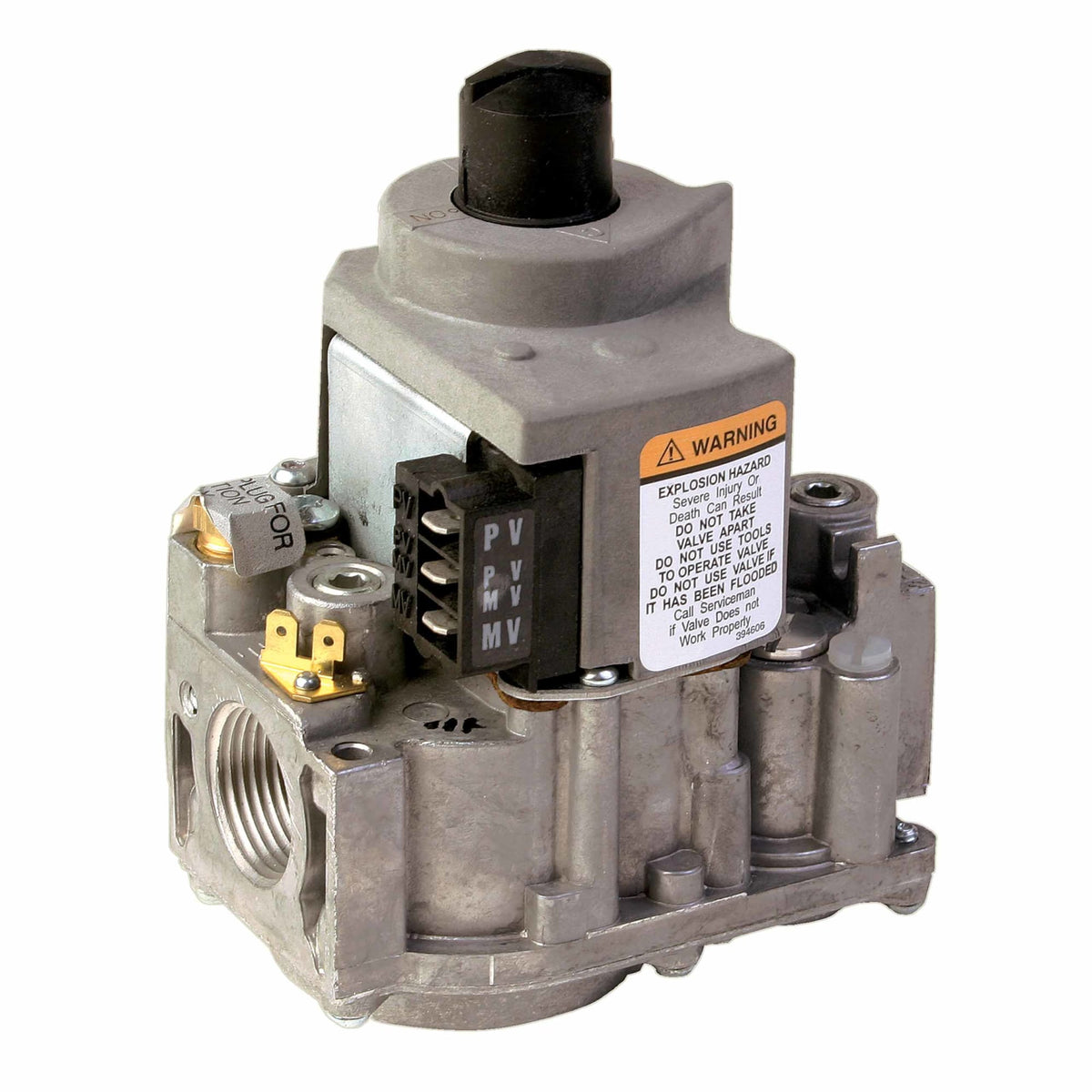

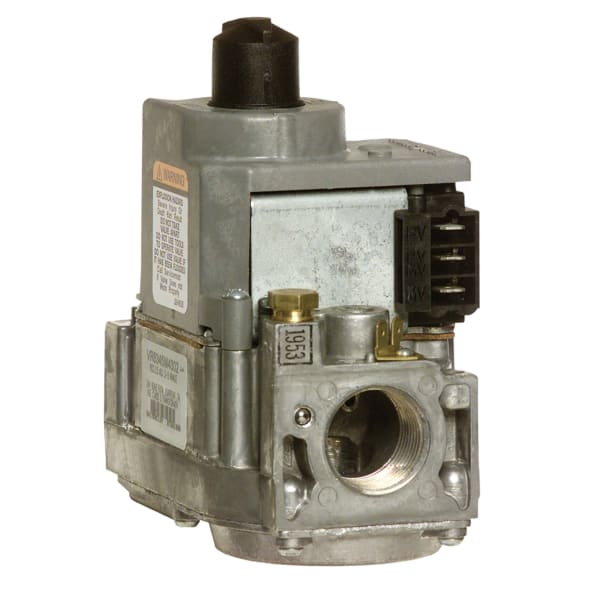

VR8345K4809/U Multisystem Slow Opening Intermittent and Direct Ignition Gas Valve
VR8345K4809/U Multisystem Slow Opening Intermittent and Direct Ignition Gas Valve

VR8345K4809/U Multisystem Slow Opening Intermittent and Direct Ignition Gas Valve

Part #
VR8345K4809/U
UPC
085267819794
$215.57

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Full specifications 8 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

VR8345K4809/U — Multisystem Slow Opening Intermittent and Direct Ignition Gas Valve.

Gas valves, ignition modules, igniters, flame sensors, thermocouples and oil primary controls. Match fuel type, voltage and inlet/outlet size.

Specifications

Part Number VR8345K4809/U
Type Gas control valve
Ignition system Universal
Opening rate Slow opening
UPC 085267819794
Ignition Type Intermittent Pilot, Direct Burner ignition
Type of Fuel Natural Gas
Regulator Slow
Capacity (Max) 415,000 BTU/h Natural Gas
Capacity (Min) 30,000 BTU/h Natural Gas
Operating Voltage 24 V AC
Inlet Connection Size 3/4 in
Outlet Connection Size 3/4 in
Regulation Type Slow Opening
Valve Body Pattern Straight Through
Ambient Operating Temperature (Max) 175 °F, 79 °C
Ambient Operating Temperature (Min) 40 °F, -40 °C
Mounting Type 0° to 90° in any direction from the upright position of the gas control knob, including vertically
Operating Frequency 50 Hz, 60 Hz
Pilot Gas Outlet Compression fitting for 1/4 in. OD tubing
Product Height 5.38 in
Product Length 2.69 in
Product Width 4.06 in

Ratings & details

  • 1/4 in Barbed Vent Fitting (392877/U)

Manufacturer documents
