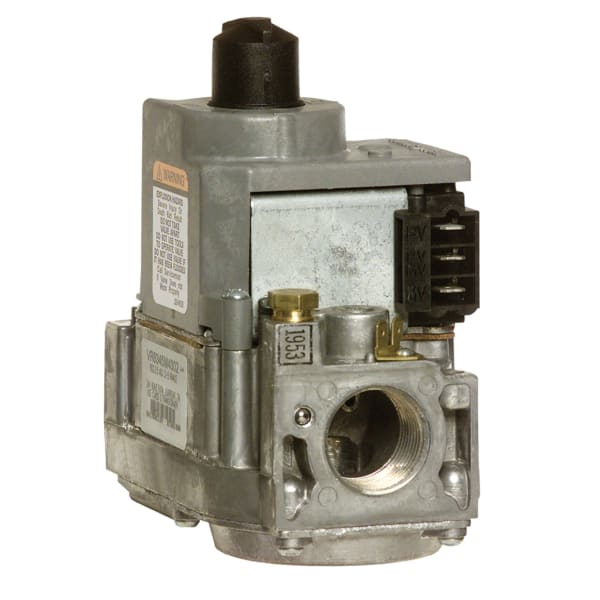

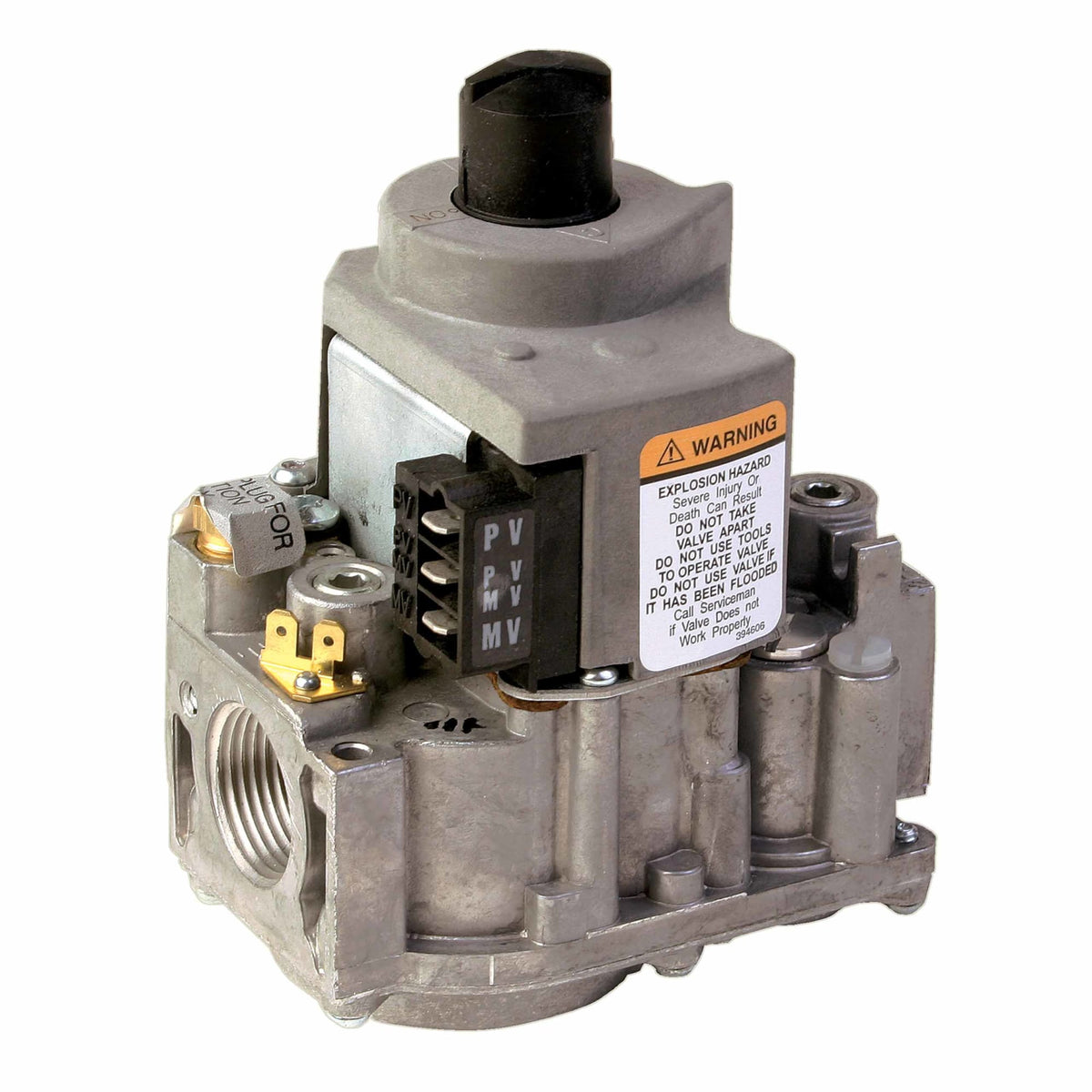

VR8345H4555/U Dual Direct Ignition/Intermittent Pilot Gas Valve
VR8345H4555/U Dual Direct Ignition/Intermittent Pilot Gas Valve

VR8345H4555/U Dual Direct Ignition/Intermittent Pilot Gas Valve

Part #
VR8345H4555/U
UPC
085267797313
$215.57

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Full specifications 8 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

VR8345H4555/U — Dual Direct Ignition/Intermittent Pilot Gas Valve.

Gas valves, ignition modules, igniters, flame sensors, thermocouples and oil primary controls. Match fuel type, voltage and inlet/outlet size.

Specifications

Part Number VR8345H4555/U
Type Gas control valve
Ignition system Universal
Staging Two-stage
UPC 085267797313
Shipping Weight 1.8 lb
Application Slow Opening with Convertible Ignition
Ignition Type Intermittent Pilot, Direct Burner ignition
Type of Fuel Natural Gas, LP with included conversion kit
Capacity (Min) 30,000 BTU/h
Operating Voltage 24 V AC
Inlet Connection Size 3/4 in
Outlet Connection Size 3/4 in
Regulation Type Slow Opening
For Use With Direct spark ignition, Hot surface ignition, Intermittent pilot ignition
Includes Natural to LP Conversion Kit, Two 3/4 in x 1/2 in Reducer Bushings
Valve Body Pattern Straight Through
Ambient Operating Temperature (Max) 175 °F, 79 °C
Ambient Operating Temperature (Min) 0 °F, -18 °C
Mounting Type 0° to 90° in any direction from the upright position of the gas control knob, including vertically
Operating Frequency 60 Hz
Product Height 5.38 in
Product Length 2.69 in
Product Width 4.06 in

Manufacturer documents
