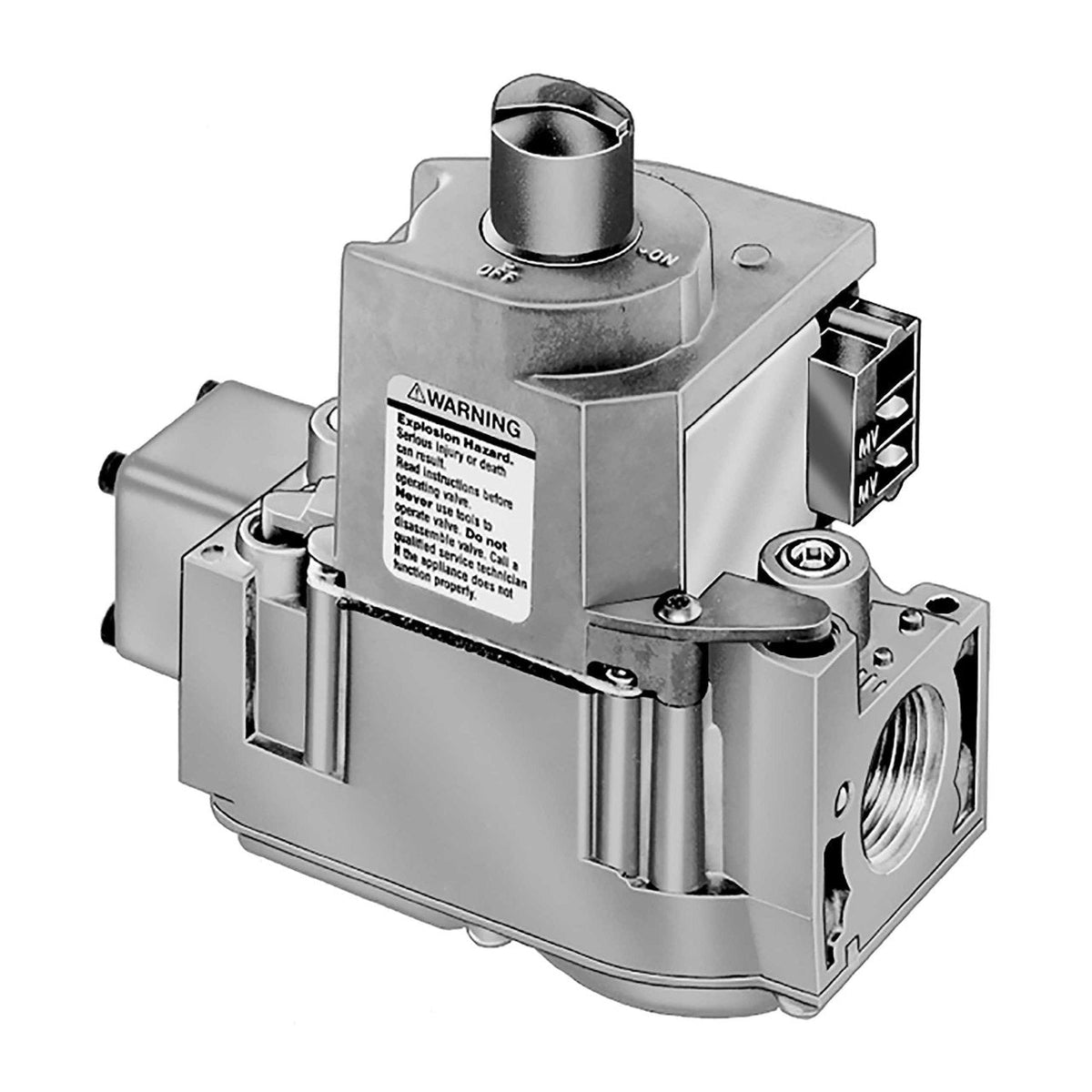

VR8305Q4153T/U Direct Ignition Two Stage Gas Valve, Standard Opening, 3/4 in x 3/4 in, 1.6/3.7 in WC

VR8305Q4153T/U Direct Ignition Two Stage Gas Valve, Standard Opening, 3/4 in x 3/4 in, 1.6/3.7 in WC

Part #
VR8305Q4153T/U
UPC
085267687850
$215.63

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Finish
Gray, Black

Full specifications 3 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

VR8305Q4153T/U — Direct Ignition Two Stage Gas Valve, Standard Opening, 3/4 in x 3/4 in, 1.6/3.7 in WC.

Gas valves, ignition modules, igniters, flame sensors, thermocouples and oil primary controls. Match fuel type, voltage and inlet/outlet size.

Specifications

Part Number VR8305Q4153T/U
Application Two-Stage Standard Opening Valve for Direct Burner Ignition
Ignition Type Direct Burner Ignition
Type of Fuel Natural Gas
Capacity (Min) 30,000 BTU/h
Operating Voltage 24 V AC
Inlet Connection Size 3/4 in
Outlet Connection Size 3/4 in
Regulation Type Standard Opening
Pressure Rating 1/2 psi, 3.5 kPa
For Use With S89C, S89E, S89F, S87 Series 5 and later
Includes 3/4 in to 1/2 in Reducer Bushings, 396021 LP Conversion Kit
Valve Body Pattern Straight Through
Ambient Operating Temperature (Max) 175 °F, 79 °C
Ambient Operating Temperature (Min) 40 °F, -40 °C
Color Gray, Black
Mounting Type 0° to 90° in any direction from the upright position of the gas control knob, including vertically
Operating Frequency 50 Hz, 60 Hz
Product Height 5.38 in, 135 mm
Product Weight 0.39 lb
Product Width 5.06 in, 129 mm
UPC 085267687850
Country of Origin MX

Ratings & details

  • 1/4 in Barbed Vent Fitting (392877/U)
