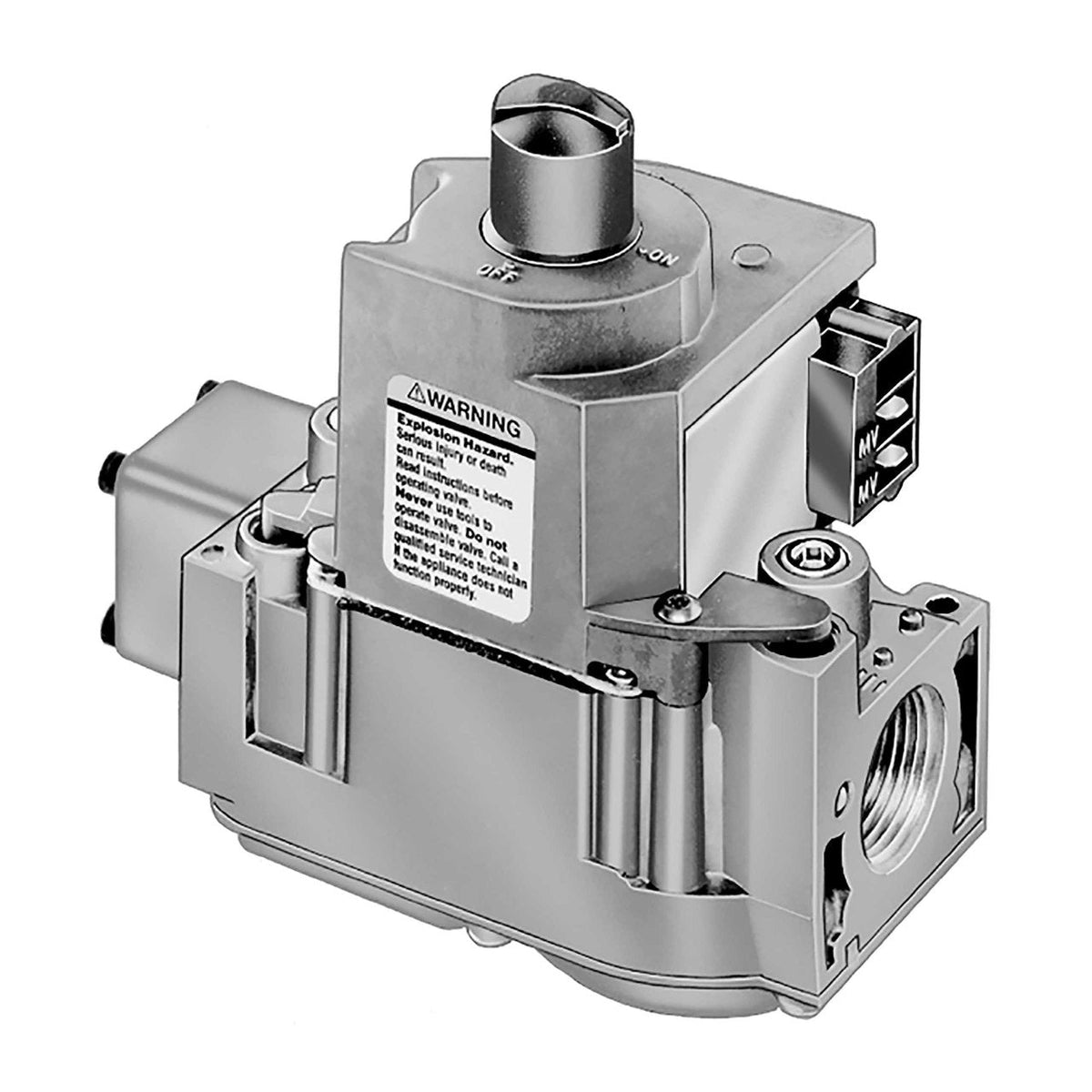

VR8305P4279/U Direct Ignition Gas Valve, Step Opening, 3/4 in x 3/4 in, 3.5 in WC Full Rate

VR8305P4279/U Direct Ignition Gas Valve, Step Opening, 3/4 in x 3/4 in, 3.5 in WC Full Rate

Part #
VR8305P4279/U
UPC
085267137782
$317.29

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Finish
Black, Gray

Full specifications 3 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

VR8305P4279/U — Direct Ignition Gas Valve, Step Opening, 3/4 in x 3/4 in, 3.5 in WC Full Rate.

Gas valves, ignition modules, igniters, flame sensors, thermocouples and oil primary controls. Match fuel type, voltage and inlet/outlet size.

Specifications

Part Number VR8305P4279/U
Application Single-Stage Step Opening for Direct Burner Ignition
Ignition Type Direct Burner Ignition
Type of Fuel Natural Gas
Regulator Step
Capacity (Max) 415,000 BTU/h
Capacity (Min) 30,000 BTU/h
Operating Voltage 24 V AC
Inlet Connection Size 3/4 in
Outlet Connection Size 3/4 in
Regulation Type Step Opening
Pressure Rating 1/2 psi, 3.5 kPa
Operating Pressure (Max) 1/2 psi
For Use With S89C, S89E, S89F, S87 Series 5 and later
Valve Body Pattern Straight Through
Ambient Operating Temperature (Max) 175 °F, 79 °C
Ambient Operating Temperature (Min) 40 °F, -40 °C
Color Black, Gray
Mounting Type 0° to 90° in any direction from the upright position of the gas control knob, including vertically
Operating Frequency 60 Hz
Product Height 5.38 in, 135 mm
Product Width 4.06 in, 104 mm
UPC 085267137782
Country of Origin MX
Pilot Gas Outlet None

Ratings & details

  • 1/4 in Barbed Vent Fitting (392877/U)
  • Two 3/4 in X 1/2 in Reducer Bushings (390427E/U)
