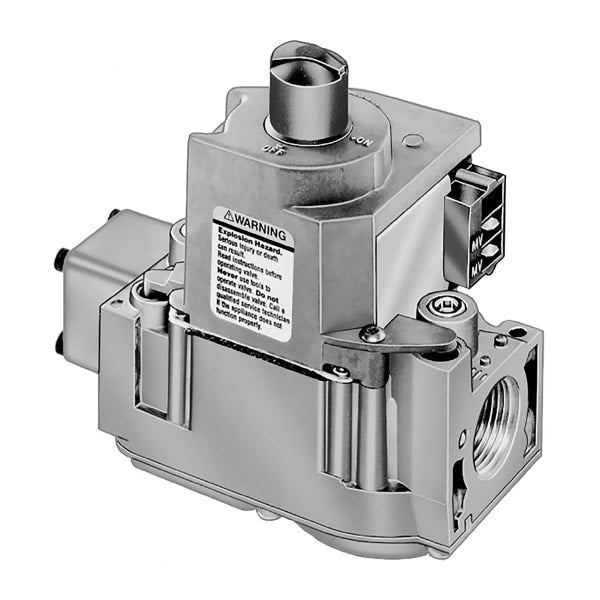

VR8305M3506/U Single Stage Gas Controls for Direct Ignition, 1/2 in x 3/4 in, Standard Opening, 24 V AC, Natural Gas
- Part #
- VR8305M3506/U
- UPC
- 085267114998
- Type
- Gas Valves
$221.39
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Finish
- Gray
Full specifications 3 manufacturer documents
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
VR8305M3506/U — Single Stage Gas Controls for Direct Ignition, 1/2 in x 3/4 in, Standard Opening, 24 V AC, Natural Gas.
Gas valves, ignition modules, igniters, flame sensors, thermocouples and oil primary controls. Match fuel type, voltage and inlet/outlet size.
Specifications
| Part Number | VR8305M3506/U |
|---|---|
| Type | Gas control valve |
| Ignition system | Direct ignition |
| Staging | Single-stage |
| Coil voltage | 24 Vac |
| Inlet x outlet | 1/2 in x 3/4 in |
| Opening rate | Standard opening |
| UPC | 085267114998 |
| Application | Single-Stage Standard Opening Valve for Direct Burner Ignition |
| Ignition Type | Direct Burner Ignition |
| Type of Fuel | Natural Gas |
| Regulator | Standard |
| Capacity (Max) | 370,000 BTU/h |
| Capacity (Min) | 30,000 BTU/h |
| Operating Voltage | 24 V AC |
| Inlet Connection Size | 1/2 in |
| Outlet Connection Size | 3/4 in |
| Regulation Type | Standard Opening |
| Pressure Rating | 1/2 psi, 3.5 kPa |
| Operating Pressure (Max) | 1/2 psi |
| For Use With | S89C, S89E, S89F, S87 Series 5 and later |
| Includes | 3/4 in Straight Flange, Natural to LP Conversion Kit, 3/4 in x 1/2 in Reducer Bushing |
| Valve Body Pattern | Straight Through |
| Ambient Operating Temperature (Max) | 175 °F, 79 °C |
| Ambient Operating Temperature (Min) | 40 °F, -40 °C |
| Color | Gray |
| Mounting Type | 0° to 90° in any direction from the upright position of the gas control knob, including vertically |
| Operating Frequency | 60 Hz |
| Pilot Gas Outlet | None |
| Product Height | 5.38 in, 135 mm |
| Product Width | 4.06 in, 104 mm |
Ratings & details
- 1/4 in Barbed Vent Fitting (392877/U)
