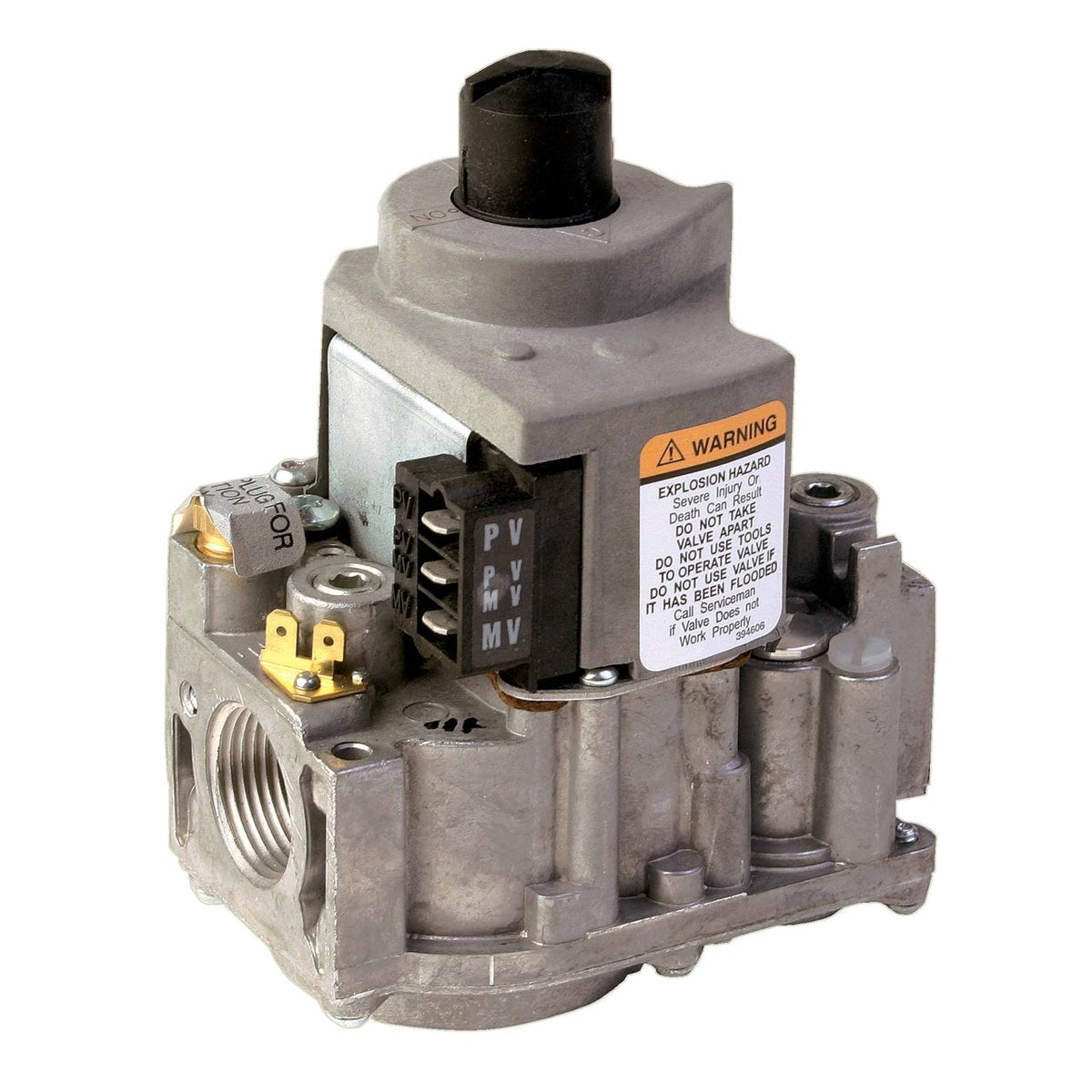

VR8304P4256T/U Intermittent Pilot Single Stage Gas Valve, Step Opening, 3/4 in x 3/4 in, 0.7/3.5 in WC

VR8304P4256T/U Intermittent Pilot Single Stage Gas Valve, Step Opening, 3/4 in x 3/4 in, 0.7/3.5 in WC

Part #
VR8304P4256T/U
UPC
085267993982
$293.16

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Finish
Black, Gray

Full specifications 5 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

VR8304P4256T/U — Intermittent Pilot Single Stage Gas Valve, Step Opening, 3/4 in x 3/4 in, 0.7/3.5 in WC.

Gas valves, ignition modules, igniters, flame sensors, thermocouples and oil primary controls. Match fuel type, voltage and inlet/outlet size.

Specifications

Part Number VR8304P4256T/U
Application Single-Stage Step Opening Valve for Intermittent Pilot
Ignition Type Intermittent Pilot
Type of Fuel Natural Gas
Capacity (Min) 30,000 BTU/h
Operating Voltage 24 V AC
Inlet Connection Size 3/4 in
Outlet Connection Size 3/4 in
Regulation Type Step Opening Single Stage
Pressure Rating 1/2 psi, 3.5 kPa
Operating Pressure (Max) 1/2 psi
For Use With S86F Control Module, S86H Control Module, S860D Control Module, S8600F Control Module, S8600H Control Module, S90A Control Module, S90B Control Module
Valve Body Pattern Straight Through
Ambient Operating Temperature (Max) 175 °F, 79 °C
Ambient Operating Temperature (Min) 40 °F, -40 °C
Approvals and Standards UL Component Recognized: MH8191, CSA International: 112395
Color Black, Gray
Mounting Type 0° to 90° in any direction from the upright position of the gas control knob, including vertically
Operating Frequency 60 Hz
Pilot Gas Outlet Compression Fitting for 1/4 in OD Tubing
Product Height 6.13 in, 155 mm
Product Weight 0.33 lb
Product Width 5.06 in, 129 mm
UPC 085267993982
Country of Origin MX

Ratings & details

  • 1/4 in Barbed Vent Fitting (392877/U)
  • Two 3/4 in X 1/2 in Reducer Bushings (390427E/U)
