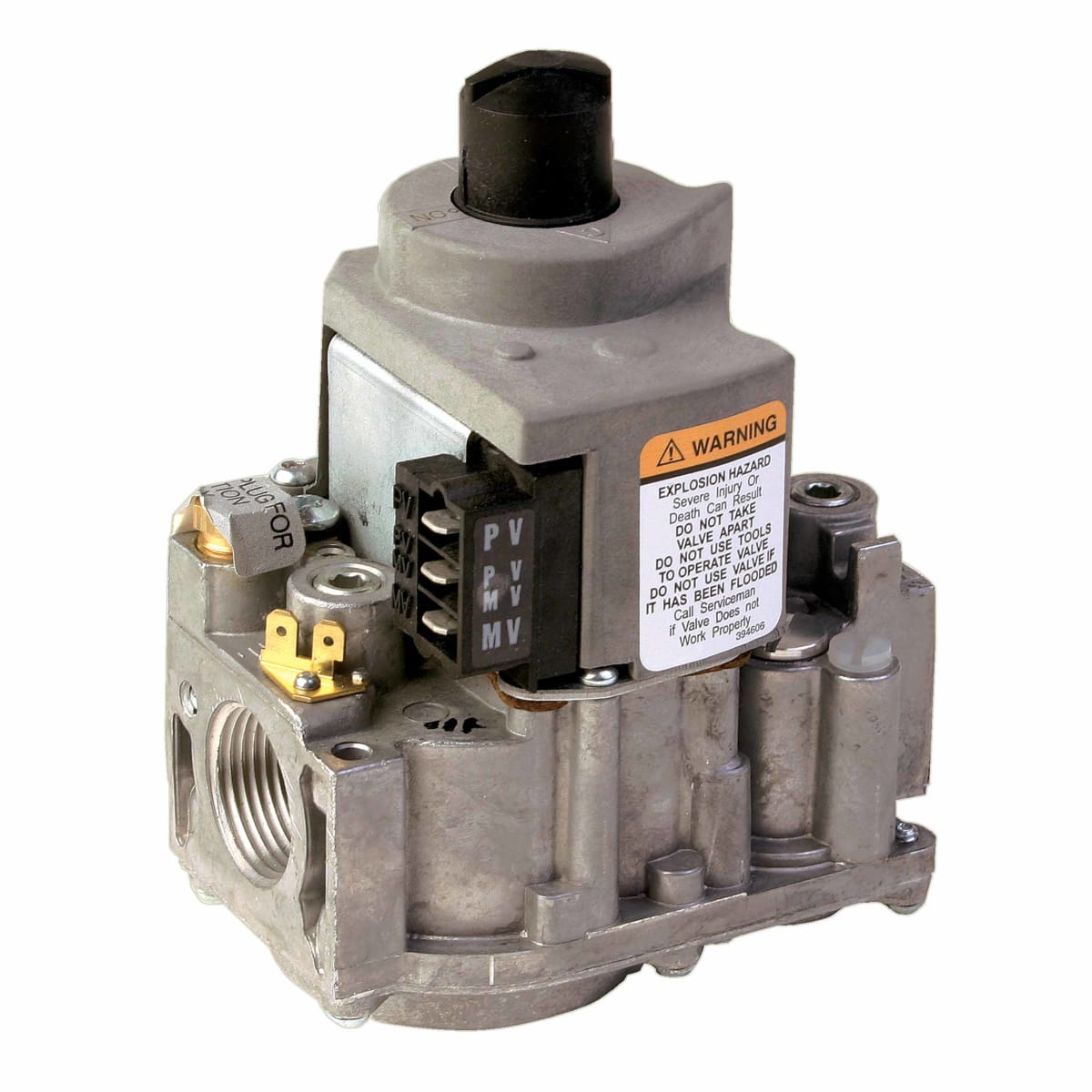

VR8304M4515/U Intermittent Pilot Gas Valve, 3/4 x 3/4 in, Standard Opening, 24 V

VR8304M4515/U Intermittent Pilot Gas Valve, 3/4 x 3/4 in, Standard Opening, 24 V

Part #
VR8304M4515/U
UPC
085267114684
$323.40

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Finish
Black; Gray

Full specifications 5 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

VR8304M4515/U — Intermittent Pilot Gas Valve, 3/4 x 3/4 in, Standard Opening, 24 V.

Gas valves, ignition modules, igniters, flame sensors, thermocouples and oil primary controls. Match fuel type, voltage and inlet/outlet size.

Specifications

Part Number VR8304M4515/U
Application Single Stage
Approvals and Standards UL Component Recognized MCCZ2.MH5323; CSA International: 112395
Color Black; Gray
Compatible With 24 V AC, gas-fired, standing pilot appliances with capacities from 30 to 415 cfh
For Use With S86F Control Module; S86H Control Module; S860D Control Module; S8600F Control Module; S8600H Control Module; S90A Control Module; S90B Control Module
Pressure Rating 1/2 psi; 3.5 kPa
Series VR8304
Manufacturer Warranty 1 Year
UPC 085267114684
Ignition Type Intermittent Pilot
Type of Fuel Natural Gas, LP with included conversion kit
Regulator Standard
Capacity (Max) 415,000 BTU/h
Capacity (Min) 30,000 BTU/h
Operating Voltage 24 V AC
Inlet Connection Size 3/4 in
Outlet Connection Size 3/4 in
Regulation Type Standard Opening
Operating Pressure (Max) 1/2 psi
Valve Body Pattern Straight Through
Ambient Operating Temperature (Max) 175 °F, 79 °C
Ambient Operating Temperature (Min) 40 °F, -40 °C
Mounting Type 0° to 90° in any direction from the upright position of the gas control knob, including vertically
Operating Frequency 60 Hz
Pilot Gas Outlet Compression Fitting for 1/4 in OD Tubing
Product Height 5.38 in, 135 mm
Product Width 5.06 in, 129 mm

Ratings & details

  • 1/4 in Barbed Vent Fitting (392877/U)
