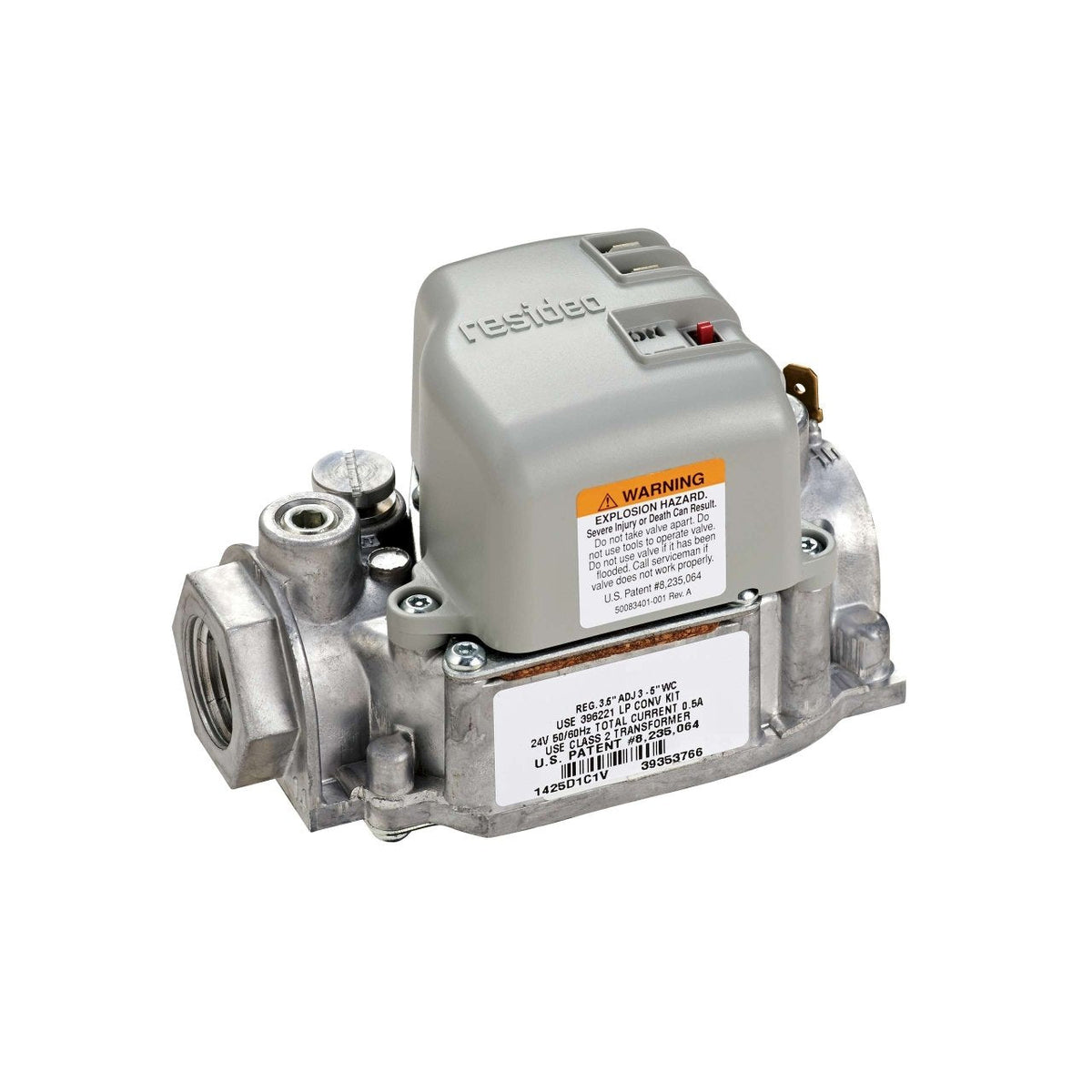

VR8215T1502/U Direct Ignition Gas Valve, Slow Opening, 1/2 in x 1/2 in, 3.5 in WC, Multipoise
VR8215T1502/U Direct Ignition Gas Valve, Slow Opening, 1/2 in x 1/2 in, 3.5 in WC, Multipoise
VR8215T1502/U Direct Ignition Gas Valve, Slow Opening, 1/2 in x 1/2 in, 3.5 in WC, Multipoise

VR8215T1502/U Direct Ignition Gas Valve, Slow Opening, 1/2 in x 1/2 in, 3.5 in WC, Multipoise

Part #
VR8215T1502/U
UPC
085267919159
$112.53

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Finish
Gray

Full specifications 5 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

VR8215T1502/U — Direct Ignition Gas Valve, Slow Opening, 1/2 in x 1/2 in, 3.5 in WC, Multipoise.

Gas valves, ignition modules, igniters, flame sensors, thermocouples and oil primary controls. Match fuel type, voltage and inlet/outlet size.

Specifications

Part Number VR8215T1502/U
Application Single-Stage Slow Opening Valve for Direct Burner Ignition
Ignition Type Direct Burner Ignition
Type of Fuel Natural Gas, LP with included conversion kit
Regulator Slow
Capacity (Max) 200,000 BTU/h
Capacity (Min) 15,000 BTU/h
Operating Voltage 24 V AC
Inlet Connection Size 1/2 in
Outlet Connection Size 1/2 in
Regulation Type Slow Opening
Pressure Rating 1/2 psi, 3.5 kPa
Operating Pressure (Max) 1/2 psi
Valve Body Pattern Straight Through
Ambient Operating Temperature (Max) 175 °F, 79 °C
Ambient Operating Temperature (Min) 40 °F, -40 °C
Approvals and Standards CSA International: 112395, Australian Gas Association: 7960
Color Gray
Mounting Type Any
Operating Frequency 50 Hz, 60 Hz
Product Height 3.38 in, 86 mm
Product Length 4.44 in, 113 mm
Product Width 2.7 in, 69 mm
UPC 085267919159
Country of Origin MX
Product Features ON-OFF Lighting Sequence
Pilot Gas Outlet None

Ratings & details

  • ON-OFF Lighting Sequence
