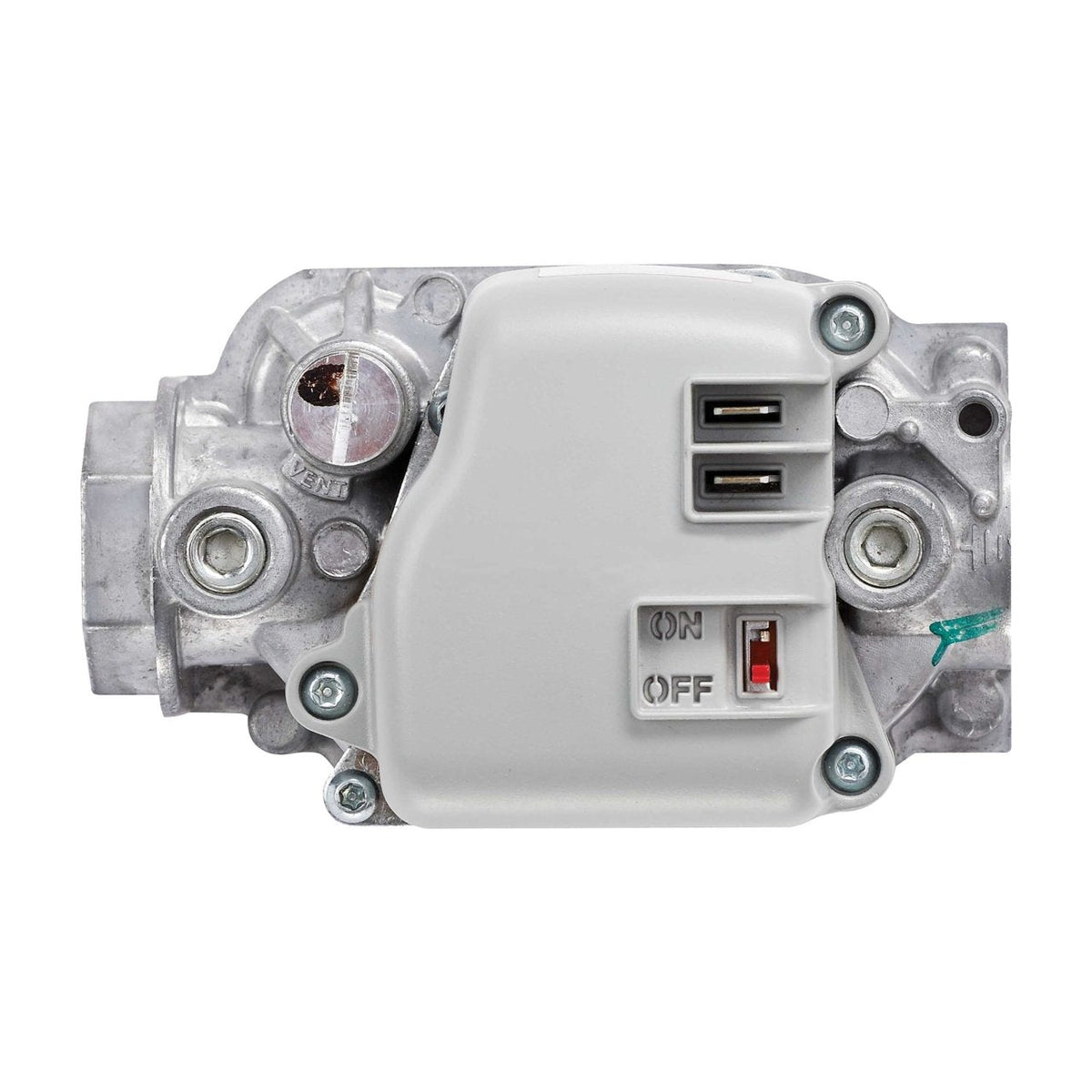

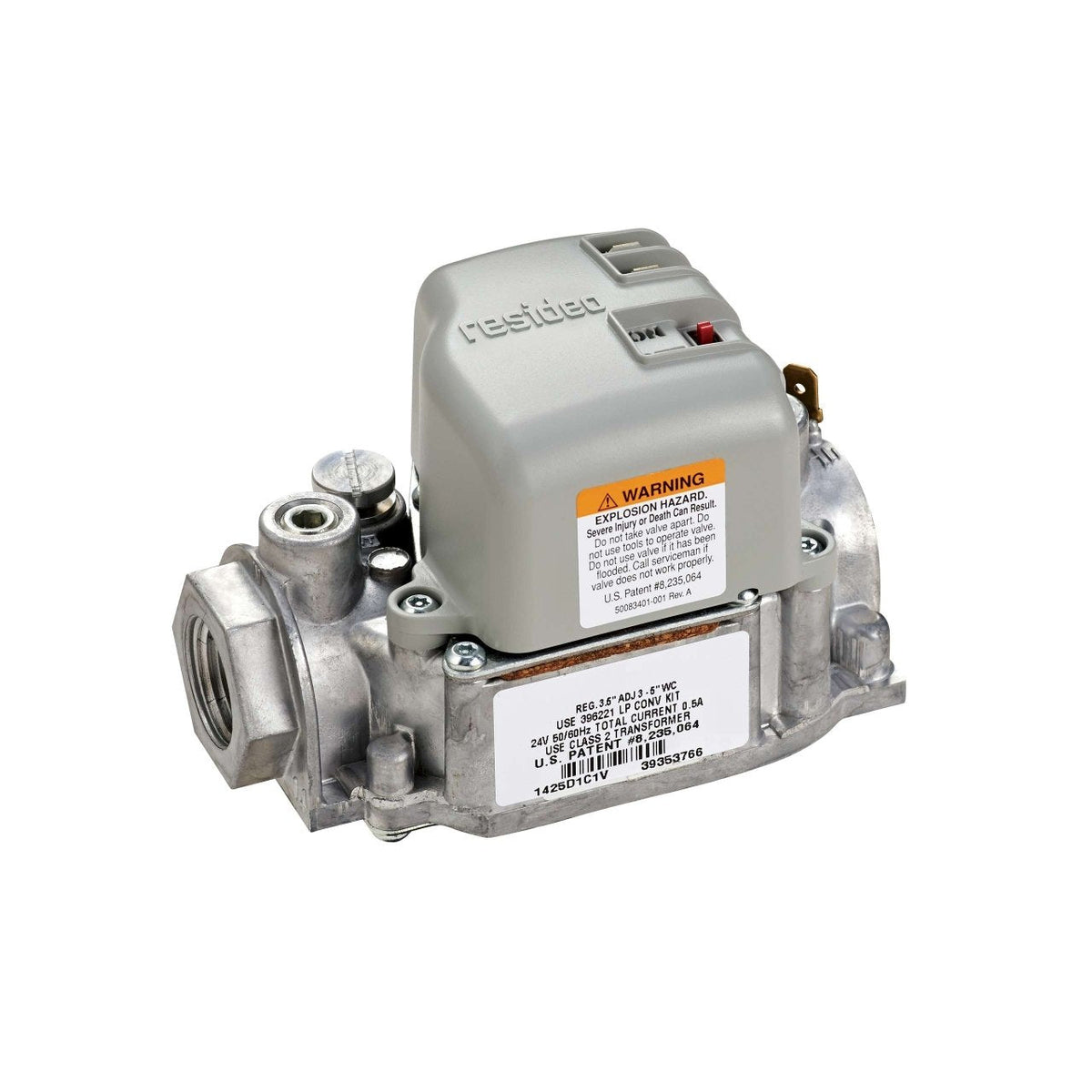

VR8215S1230T/U Direct Ignition Single Stage Gas Valve, Standard Opening, 1/2 in x 1/2 in, 3.5 in WC
VR8215S1230T/U Direct Ignition Single Stage Gas Valve, Standard Opening, 1/2 in x 1/2 in, 3.5 in WC
VR8215S1230T/U Direct Ignition Single Stage Gas Valve, Standard Opening, 1/2 in x 1/2 in, 3.5 in WC

VR8215S1230T/U Direct Ignition Single Stage Gas Valve, Standard Opening, 1/2 in x 1/2 in, 3.5 in WC

Part #
VR8215S1230T/U
UPC
085267196413
$109.57

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Finish
Gray

Full specifications 5 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

VR8215S1230T/U — Direct Ignition Single Stage Gas Valve, Standard Opening, 1/2 in x 1/2 in, 3.5 in WC.

Gas valves, ignition modules, igniters, flame sensors, thermocouples and oil primary controls. Match fuel type, voltage and inlet/outlet size.

Specifications

Part Number VR8215S1230T/U
Application Single-Stage Standard Opening Valve for Direct Burner Ignition
Ignition Type Direct Burner Ignition
Type of Fuel Natural Gas
Capacity (Max) 200,000 BTU/h
Capacity (Min) 15,000 BTU/h
Operating Voltage 24 V AC
Inlet Connection Size 1/2 in
Outlet Connection Size 1/2 in
Regulation Type Standard Opening
Regulation Range (Max) 3.5 in WC
Regulation Range (Min) 2.5 in WC
Pressure Rating 1/2 psi, 3.5 kPa
Operating Pressure (Max) 1/2 psi
Valve Body Pattern Straight Through
Ambient Operating Temperature (Max) 175 °F, 79 °C
Ambient Operating Temperature (Min) 40 °F, -40 °C
Approvals and Standards CSA International: 112395
Color Gray
Mounting Type Any
Operating Frequency 50 Hz, 60 Hz
Pilot Gas Outlet Pilot outlet are accessible from top of control
Product Height 3.38 in, 86 mm
Product Length 4.44 in, 113 mm
Product Width 2.7 in, 69 mm
UPC 085267196413
Country of Origin MX
Product Features ON-OFF Lighting Sequence

Ratings & details

  • ON-OFF Lighting Sequence
  • Two 3/4 in X 1/2 in Reducer Bushings (390427E/U)
