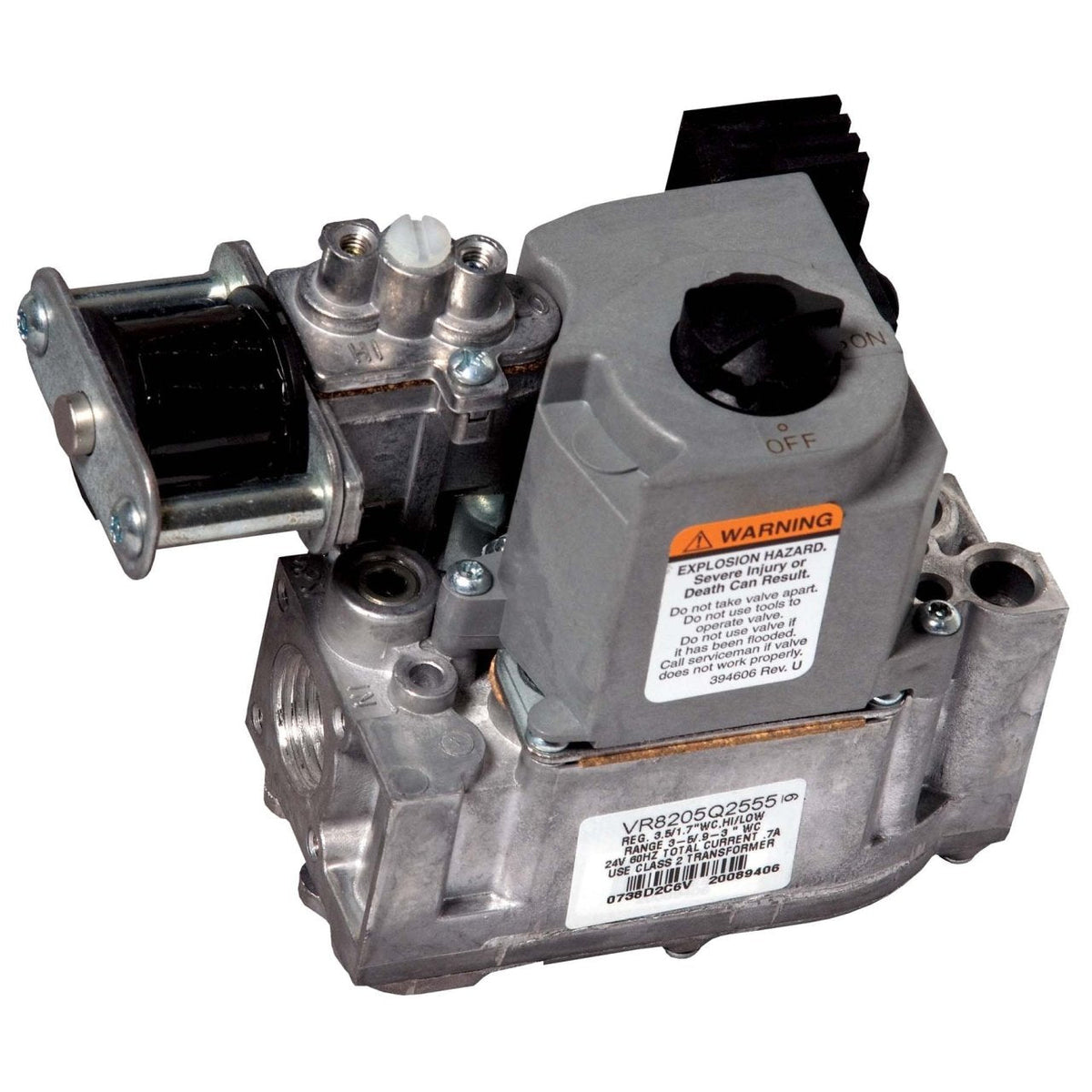

VR8205Q2555/U Direct Ignition Two Stage Gas Valve, Standard Opening, 1/2 in x 1/2 in, 1.7/3.5 in WC
- Part #
- VR8205Q2555/U
- UPC
- 085267795708
- Type
- Gas Valves
$247.71
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Finish
- Black, Gray
Full specifications 3 manufacturer documents
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
VR8205Q2555/U — Direct Ignition Two Stage Gas Valve, Standard Opening, 1/2 in x 1/2 in, 1.7/3.5 in WC.
Gas valves, ignition modules, igniters, flame sensors, thermocouples and oil primary controls. Match fuel type, voltage and inlet/outlet size.
Specifications
| Part Number | VR8205Q2555/U |
|---|---|
| Application | Two-Stage Standard Opening Valve for Direct Burner Ignition |
| Ignition Type | Direct Burner Ignition |
| Type of Fuel | Natural Gas |
| Operating Voltage | 24 V AC |
| Inlet Connection Size | 1/2 in |
| Outlet Connection Size | 1/2 in |
| Regulation Type | Standard Opening |
| Regulation Range (Max) | High 5.0 in WC, Low: 3 in WC |
| Regulation Range (Min) | High: 3.0 in WC, Low: 0.9 in WC |
| For Use With | S89C, S89E, S89F, S87 Series 5 and later |
| Includes | Natural to LP Conversion Kit, 1/2 in x 3/8 in Reducer Bushing |
| Valve Body Pattern | Straight Through |
| Ambient Operating Temperature (Max) | 175 °F, 79 °C |
| Ambient Operating Temperature (Min) | 40 °F, -40 °C |
| Approvals and Standards | CSA International: 112395 |
| Color | Black, Gray |
| Operating Frequency | 60 Hz |
| UPC | 085267795708 |
| Country of Origin | MX |
| Product Features | ON-OFF Lighting Sequence |
Ratings & details
- ON-OFF Lighting Sequence
- Two 3/4 in X 1/2 in Reducer Bushings (390427E/U)
