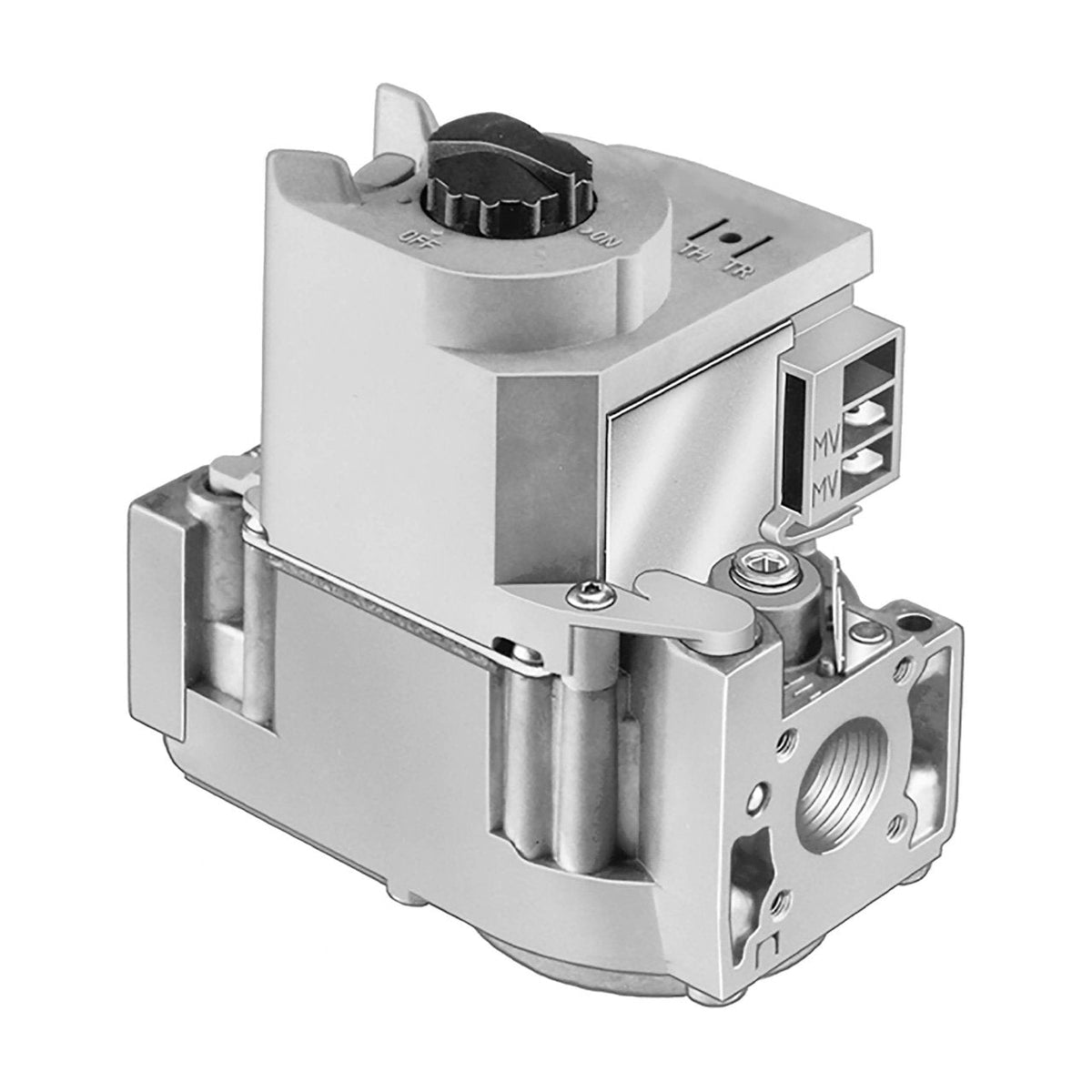

VR8205C1024/U Direct Ignition Gas Valve, 1/2 in x 1/2 in, Step Opening

VR8205C1024/U Direct Ignition Gas Valve, 1/2 in x 1/2 in, Step Opening

Part #
VR8205C1024/U
UPC
085267113373
$246.27

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Finish
Black, Gray

Full specifications 3 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

VR8205C1024/U — Direct Ignition Gas Valve, 1/2 in x 1/2 in, Step Opening.

Gas valves, ignition modules, igniters, flame sensors, thermocouples and oil primary controls. Match fuel type, voltage and inlet/outlet size.

Specifications

Part Number VR8205C1024/U
Application Single-Stage Step Opening for Direct Burner Ignition
Ignition Type Direct Burner Ignition
Type of Fuel Natural Gas
Operating Voltage 24 V AC
Inlet Connection Size 1/2 in
Outlet Connection Size 1/2 in
Regulation Type Step Opening
Operating Pressure (Max) 1/2 psi, 3.5 kPa
For Use With S89C, S89E, S89F, S87 Series 5 and later
Valve Body Pattern Straight Through
Ambient Operating Temperature (Max) 175 °F, 79 °C
Ambient Operating Temperature (Min) 0 °F, -18 °C
Approvals and Standards UL Component Recognized, CSA International: 112395
Color Black, Gray
Mounting Type 0° to 90° in any direction from the upright position of the gas control knob, including vertically
Operating Frequency 60 Hz
Product Height 4.94 in, 125 mm
Product Width 4.13 in, 104 mm
UPC 085267113373
Country of Origin MX
Product Features ON-OFF Lighting Sequence

Ratings & details

  • ON-OFF Lighting Sequence
  • 1/4 in Barbed Vent Fitting (392877/U)
  • Two 3/4 in X 1/2 in Reducer Bushings (390427E/U)
