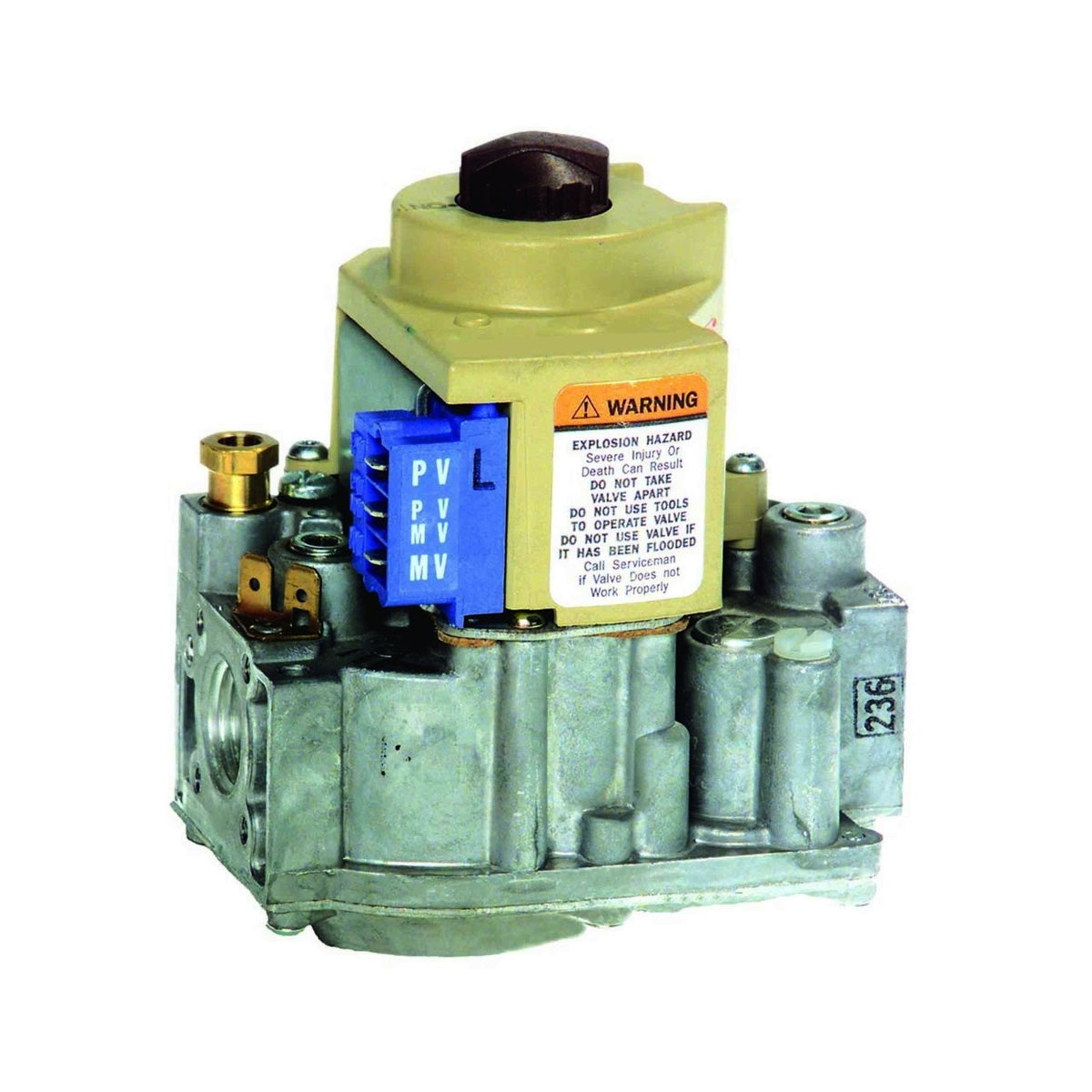

VR8204C1019/U Intermittent Pilot Gas Valve, 1/2 in x 1/2 in, Step Opening

VR8204C1019/U Intermittent Pilot Gas Valve, 1/2 in x 1/2 in, Step Opening

Part #
VR8204C1019/U
UPC
085267112819
$245.89

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Finish
Black, Gray

Full specifications 6 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

VR8204C1019/U — Intermittent Pilot Gas Valve, 1/2 in x 1/2 in, Step Opening.

Gas valves, ignition modules, igniters, flame sensors, thermocouples and oil primary controls. Match fuel type, voltage and inlet/outlet size.

Specifications

Part Number VR8204C1019/U
Application Single-Stage Step Opening Valve for Intermittent Pilot
Ignition Type Intermittent Pilot
Type of Fuel Natural Gas
Regulator Step
Capacity (Max) 200,000 BTU/h Natural Gas
Capacity (Min) 20,000 BTU/h Natural Gas
Operating Voltage 24 V AC
Inlet Connection Size 1/2 in
Outlet Connection Size 1/2 in
Regulation Type Step Opening
Pressure Rating 1/2 psi, 3.5 kPa
Operating Pressure (Max) 1/2 psi
For Use With S86F Control Modules, S86H Control Modules, S8600F Control Modules, S8600H Control Modules, S8610 Control Modules
Valve Body Pattern Straight Through
Ambient Operating Temperature (Max) 175 °F, 79 °C
Ambient Operating Temperature (Min) 0 °F, -18 °C
Approvals and Standards UL Component Recognized MCCZ2.MH5323, CSA International: 112395, Australian Gas Assoc. Design Certificate: 4752
Color Black, Gray
Mounting Type 0° to 90° in any direction from the upright position of the gas control knob, including vertically
Operating Frequency 60 Hz
Pilot Gas Outlet Compression Fitting for 1/4 in OD Tubing
Product Height 4.94 in, 125 mm
Product Width 4.13 in, 104 mm
UPC 085267112819
Country of Origin MX
Product Features ON-OFF lighting sequence

Ratings & details

  • ON-OFF lighting sequence
  • 1/4 in Barbed Vent Fitting (392877/U)
  • Two 3/4 in X 1/2 in Reducer Bushings (390427E/U)
