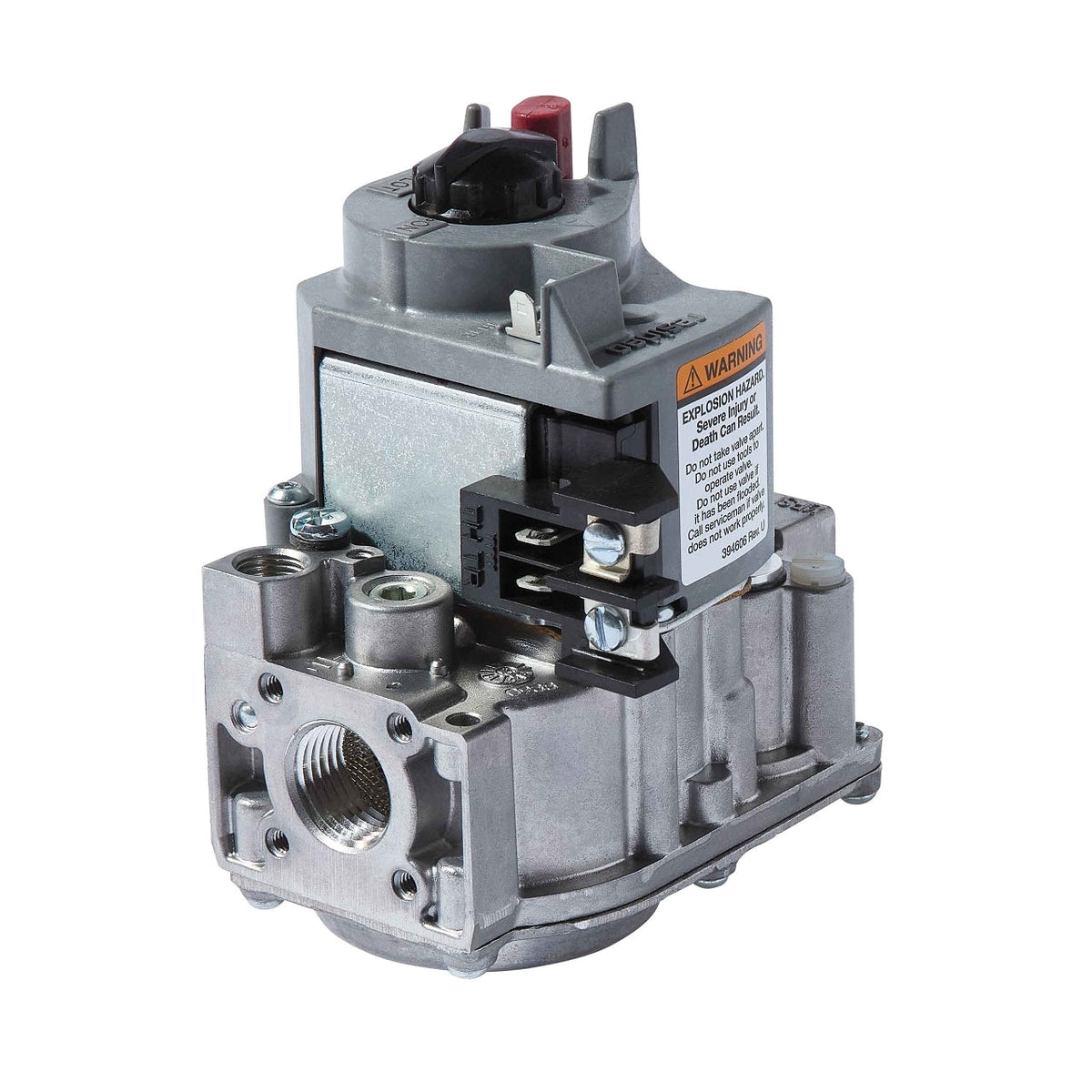

VR8200A2744/U Standing Pilot Gas Valve, 1/2 in x 1/2 in, Standard Opening, 3.5 in WC

VR8200A2744/U Standing Pilot Gas Valve, 1/2 in x 1/2 in, Standard Opening, 3.5 in WC

Part #
VR8200A2744/U
UPC
085267788021
$162.61

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Finish
Black, Gray

Full specifications 5 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

VR8200A2744/U — Standing Pilot Gas Valve, 1/2 in x 1/2 in, Standard Opening, 3.5 in WC.

Gas valves, ignition modules, igniters, flame sensors, thermocouples and oil primary controls. Match fuel type, voltage and inlet/outlet size.

Specifications

Part Number VR8200A2744/U
Application Single-Stage Standard Opening Valve for Standard Pilot
Ignition Type Standing Pilot
Type of Fuel Natural Gas, LP with included conversion kit
Regulator Standard
Capacity (Max) 200,000 BTU/h Natural Gas
Capacity (Min) 20,000 BTU/h Natural Gas
Operating Voltage 24 V AC
Inlet Connection Size 1/2 in
Outlet Connection Size 1/2 in
Regulation Type Standard Opening
Pressure Rating 1/2 psi
Operating Pressure (Max) 1/2 psi, 3.5 kPa
Includes One 3/4 in Straight Flange, One 3/4 in Elbow Flange, One 1/2 in x 3/8 in Reducer Bushings, Natural to LP Conversion Kit
Valve Body Pattern Straight Through
Ambient Operating Temperature (Max) 175 °F, 79 °C
Ambient Operating Temperature (Min) 0 °F, -18 °C
Approvals and Standards UL Component Recognized MCCZ2.MH5323, CSA International: 112395, Australian Gas Association 4752
Color Black, Gray
Mounting Type 0° to 90° in any direction from the upright position of the gas control knob, including vertically
Operating Frequency 60 Hz
Pilot Gas Outlet Compression Fitting for 1/4 in OD Tubing
Product Height 5.38 in, 135 mm
Product Width 4.06 in, 104 mm
UPC 085267788021
Country of Origin MX
Product Features Lite-Rite (OFF-PILOT-ON) lighting sequence

Ratings & details

  • Lite-Rite (OFF-PILOT-ON) lighting sequence
  • 1/4 in Barbed Vent Fitting (392877/U)
