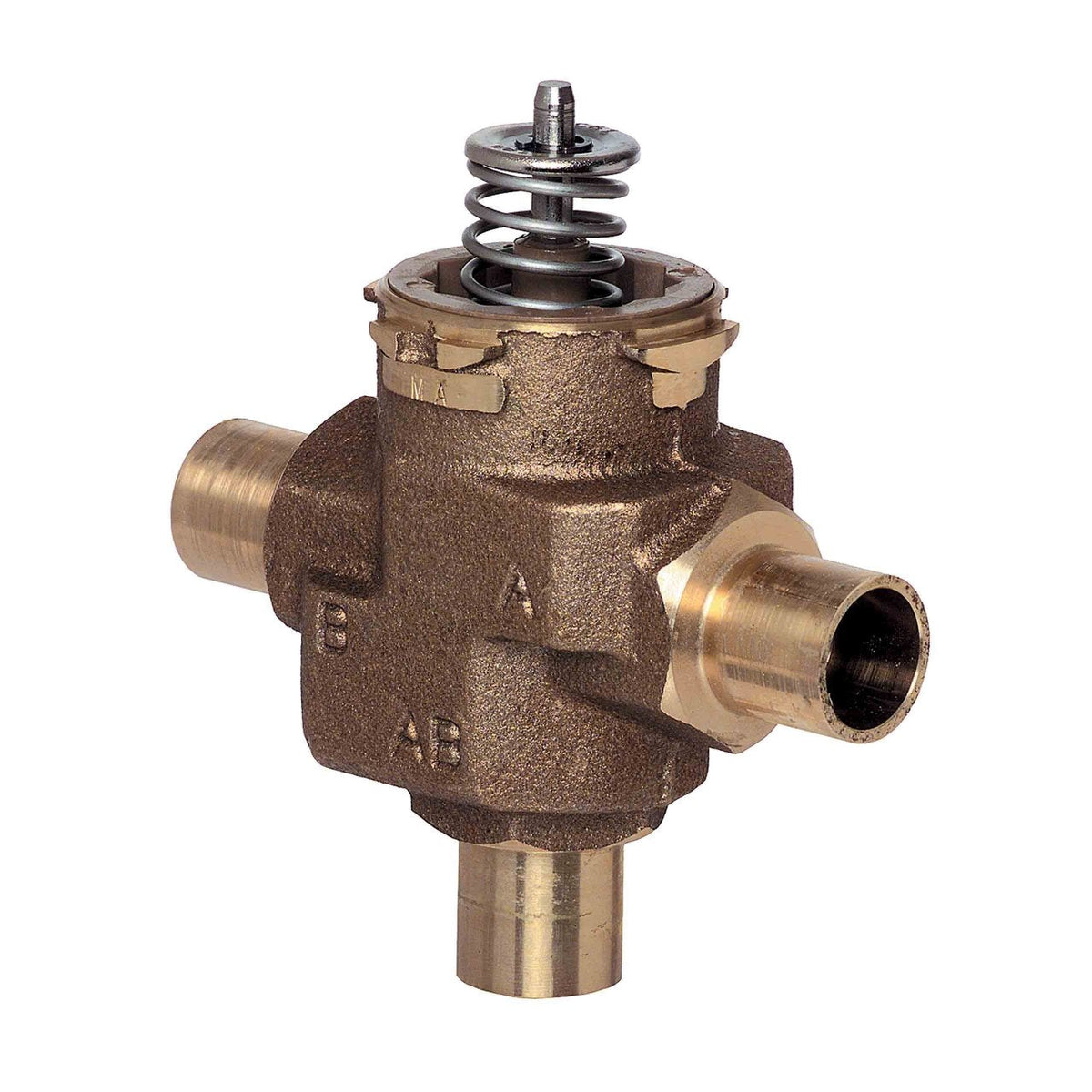

VCZMA6532/U VC 3-Way Equal Percentage Valve, 1/2 in, Trane
- Part #
- VCZMA6532/U
- UPC
- 085267832366
- Type
- 3-Way Zone Valve
$63.39
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Material
- Brass
- Connection
- Sweat
- Finish
- Bronze
Full specifications 1 manufacturer document
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
VCZMA6532/U — VC 3-Way Equal Percentage Valve, 1/2 in, Trane.
Motorized 2-way and 3-way zone valves, replacement heads and actuators that let one boiler heat several zones independently.
Specifications
| Part Number | VCZMA6532/U |
|---|---|
| Controlled Media | Water with max. 50 % glycol according to VDI 2035 |
| Approvals and Standards | CSA Certified |
| Color | Bronze |
| Includes | Valve, Cartridge Changing Tool |
| Product Weight | 0.5 lb |
| Manufacturer Warranty | 5 years |
| Ambient Operating Temperature (Min) | 32 °F, 0 °C |
| Ambient Operating Temperature (Max) | 150 °F, 65 °C |
| Connection Type | Sweat |
| Differential pressure for close-off (Max) | 60 psi, 414 kPa (4 bar) |
| Flow Coefficient | 0.6 Cvs; 0.5 Kvs |
| Media Temperature (Min) | 34 °F, 1 °C |
| Media Temperature (Max) | 203 °F, 95 °C |
| Operating Pressure (Max) | 300 psi, 2068 kPa (20 Bar) |
| Seal Material | EPDM Rubber |
| Shipping and Storage Temperature (Min) | 40 °F, -40 °C |
| Shipping and Storage Temperature (Max) | 150 °F, 65 °C |
| Static Pressure Rating | 300 psi, 2068 kPa (20 Bar) |
| Valve Body Material | Brass |
| Valve Body Pattern | Three-way, A-AB-B |
| Valve Cartridge | Yes |
| Valve Flow Characteristic | Equal percentage |
| Valve Seat Material | EPDM O-ring seals on Noryl piston |
| Valve Stem Material | Stainless Steel |
| Valve Stem Travel | 0.4 in, 10 mm |
| UPC | 085267832366 |
| Country of Origin | HU |
