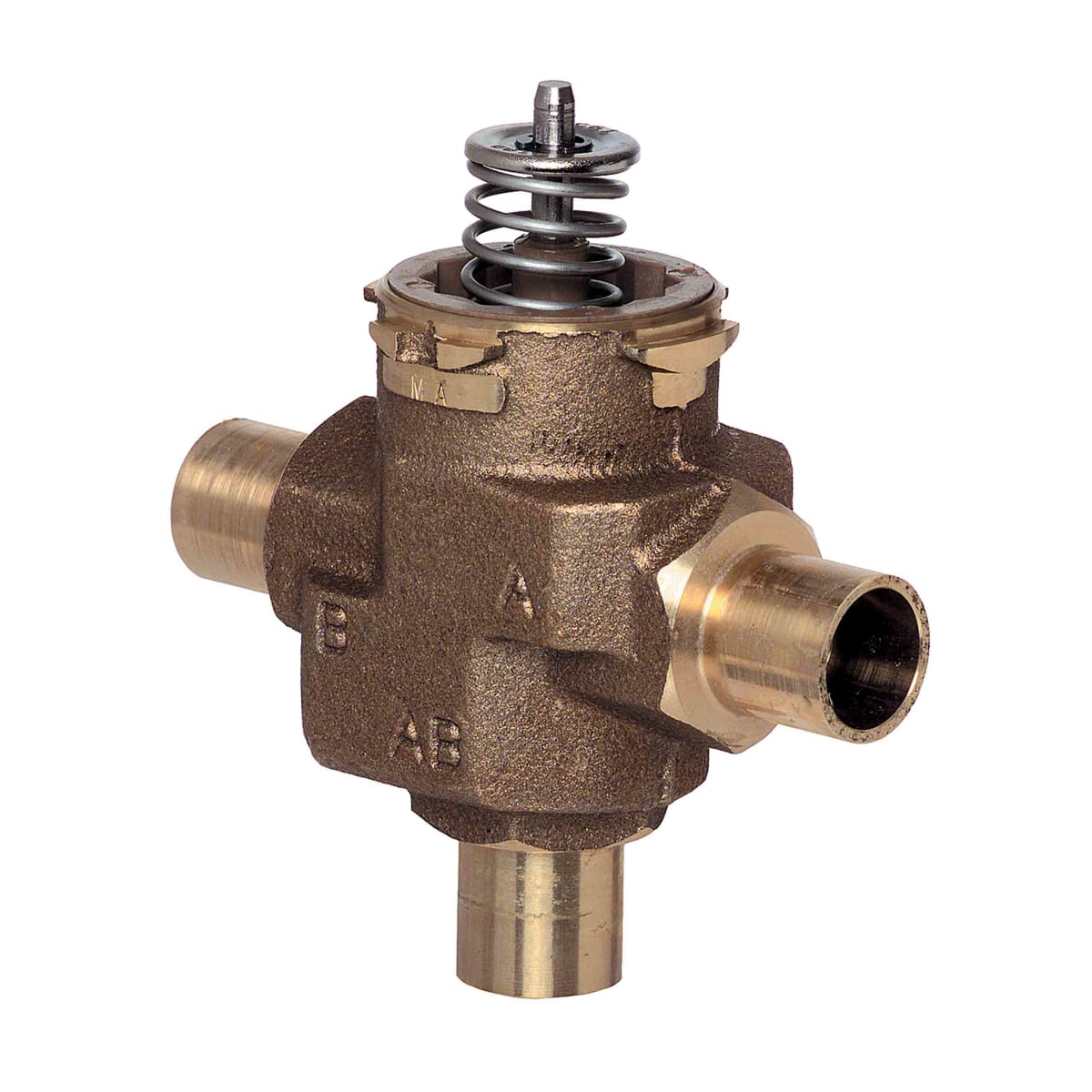

VCZMA6000/U VC 3-Way Valve Assembly, 1/2 in Sweat
- Part #
- VCZMA6000/U
- UPC
- 085267133463
- Type
- 3-Way Zone Valve
$61.71
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Size
- 1/2 in
- Material
- Brass
- Connection
- Sweat
- Finish
- Brass
Full specifications 1 manufacturer document
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
VCZMA6000/U — VC 3-Way Valve Assembly, 1/2 in Sweat.
Motorized 2-way and 3-way zone valves, replacement heads and actuators that let one boiler heat several zones independently.
Specifications
| Part Number | VCZMA6000/U |
|---|---|
| Configuration | 3-way |
| Size | 1/2 in |
| Connections | Sweat |
| UPC | 085267133463 |
| Country of Origin | HU |
| Controlled Media | Water with max. 50 % glycol according to VDI 2035 |
| Approvals and Standards | CSA Certified |
| Color | Brass |
| Includes | Valve, Cartridge Changing Tool |
| Product Weight | 0.5 lb |
| Manufacturer Warranty | 5 years |
| Ambient Operating Temperature (Min) | 32 °F, 0 °C |
| Ambient Operating Temperature (Max) | 150 °F, 65 °C |
| Connection Type | Sweat |
| Differential pressure for close-off (Max) | 60 psi, 414 kPa (4 bar) |
| Flow Coefficient | 4.2 Cvs; 3.6 Kvs |
| Media Temperature (Min) | 34 °F, 1 °C |
| Media Temperature (Max) | 203 °F, 95 °C |
| Operating Pressure (Max) | 300 psi, 2068 kPa (20 Bar) |
| Seal Material | EPDM Rubber |
| Static Pressure Rating | 300 psi, 2068 kPa (20 Bar) |
| Valve Body Material | Brass |
| Valve Body Pattern | Three-way, A-AB-B |
| Valve Cartridge | Yes |
| Valve Flow Characteristic | Quick Open |
| Valve Seat Material | EPDM O-ring seals on Noryl piston |
| Valve Stem Material | Stainless Steel |
| Valve Stem Travel | 0.4 in, 10 mm |
