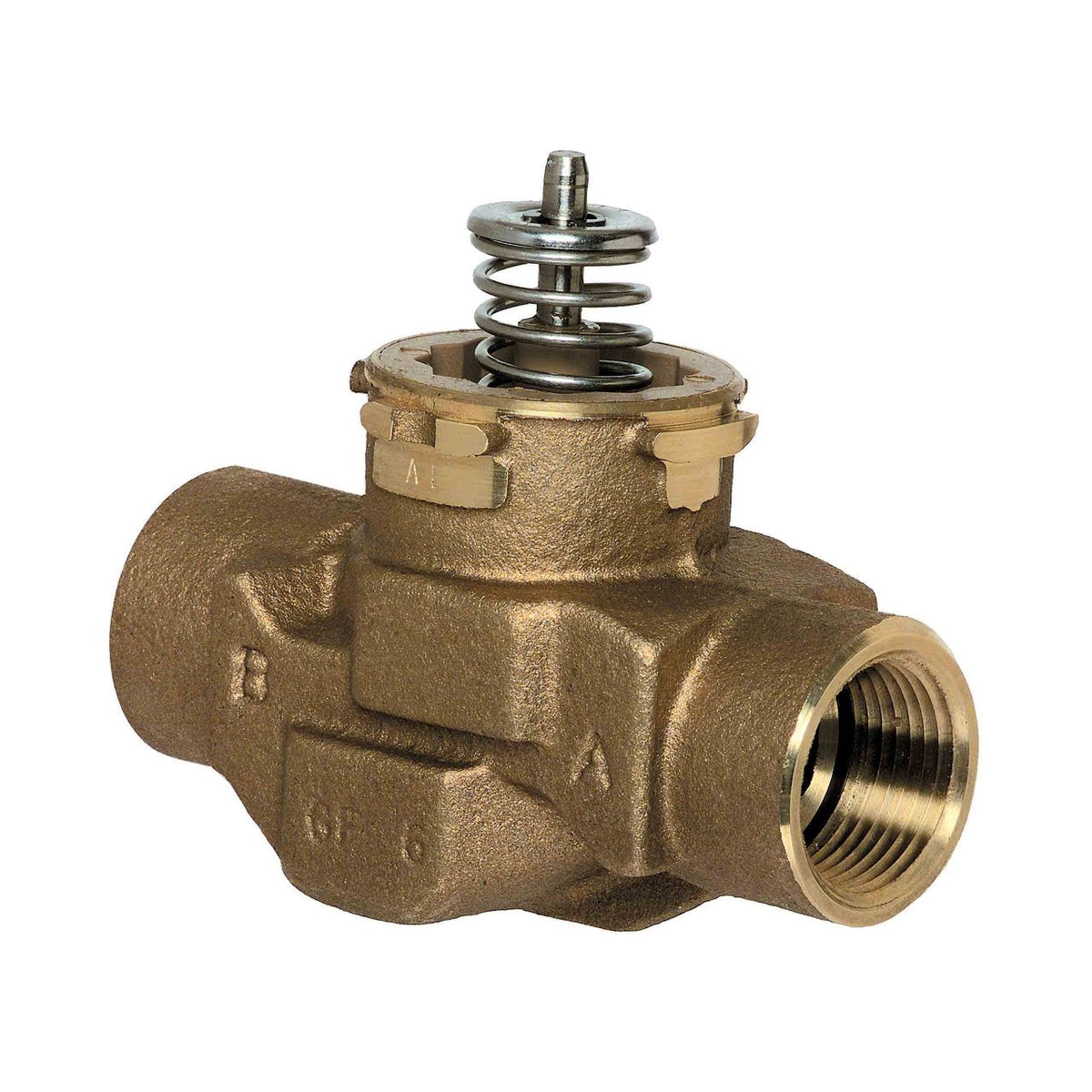

VCZAL1000/U VC 2-Way Valve Assembly, 3/4 in FNPT, 6.3 Cv, Quick Open
- Part #
- VCZAL1000/U
- UPC
- 085267811781
- Type
- 2-Way Zone Valve
$89.24
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Material
- Bronze
- Connection
- Female NPT
- Finish
- Bronze
Full specifications 1 manufacturer document
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
VCZAL1000/U — VC 2-Way Valve Assembly, 3/4 in FNPT, 6.3 Cv, Quick Open.
Motorized 2-way and 3-way zone valves, replacement heads and actuators that let one boiler heat several zones independently.
Specifications
| Part Number | VCZAL1000/U |
|---|---|
| Cartridge Material | Ryton and Noryl Plastic |
| Controlled Media | Water with max. 50 % glycol according to VDI 2035 |
| Approvals and Standards | CSA Certified |
| Color | Bronze |
| Includes | Valve, Cartridge Installation Wrench |
| Product Weight | 0.54 lb |
| Manufacturer Warranty | 5 years |
| Ambient Operating Temperature (Min) | 32 °F, 0 °C |
| Ambient Operating Temperature (Max) | 150 °F, 65 °C |
| Connection Type | Female NPT |
| Differential pressure for close-off (Max) | 60 psi, 414 kPa (4 bar) |
| Flow Coefficient | 6.3 Cv; 5.4 Kvs |
| Media Temperature (Min) | 34 °F, 1 °C |
| Media Temperature (Max) | 203 °F, 95 °C |
| Operating Pressure (Max) | 300 psi, 2068 kPa (20 Bar) |
| Seal Material | EPDM Rubber |
| Shipping and Storage Temperature (Min) | 40 °F, -40 °C |
| Static Pressure Rating | 300 psi, 2068 kPa (20 Bar) |
| Valve Body Material | Bronze |
| Valve Body Pattern | Two-way, Straight Through |
| Valve Cartridge | Yes |
| Valve Flow Characteristic | Quick Open |
| Valve Seat Material | EPDM O-ring seals on Noryl piston |
| Valve Stem Material | Stainless Steel |
| Valve Stem Travel | 0.4 in, 10 mm |
| UPC | 085267811781 |
| Country of Origin | HU |
