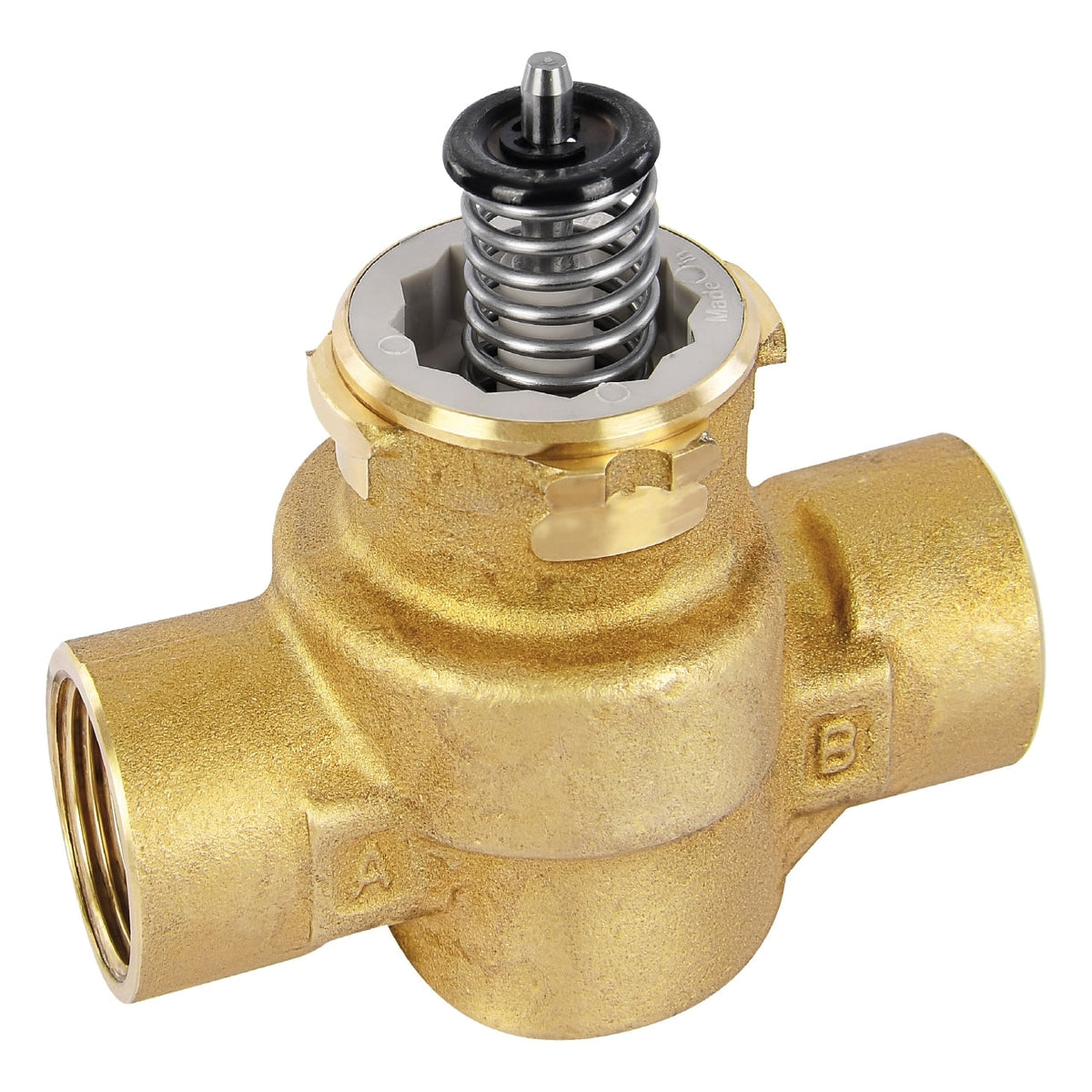

VCZAJ1000/E VC Valve
- Part #
- VCZAJ1000/E
- UPC
- 40085267815404
- Type
- 2-Way Zone Valve
$59.21
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Connection
- BSPP-INT
- Finish
- Bronze
Full specifications 1 manufacturer document
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
VCZAJ1000/E — VC Valve.
Motorized 2-way and 3-way zone valves, replacement heads and actuators that let one boiler heat several zones independently.
Specifications
| Part Number | VCZAJ1000/E |
|---|---|
| Cartridge Material | Ryton and Noryl Plastic |
| Controlled Media | Water with max. 50 % glycol according to VDI 2035 |
| Approvals and Standards | CSA Certified |
| Color | Bronze |
| Includes | Valves (10), Cartridge Installation Wrench |
| Product Weight | 0.5 lb |
| Manufacturer Warranty | 5 years |
| Ambient Operating Temperature (Min) | 32 °F, 0 °C |
| Ambient Operating Temperature (Max) | 150 °F, 65 °C |
| Connection Type | BSPP-INT |
| Differential pressure for close-off (Max) | 60 psi, 414 kPa (4 bar) |
| Media Temperature (Min) | 34 °F, 1 °C |
| Media Temperature (Max) | 203 °F, 95 °C |
| Operating Pressure (Max) | 300 psi, 2068 kPa (20 Bar) |
| Shipping and Storage Temperature (Min) | 40 °F, -40 °C |
| Valve Body Pattern | Two-way, Straight Through |
| Valve Cartridge | Yes |
| Valve Flow Characteristic | Quick Open |
| Valve Seat Material | EPDM O-ring seals on Noryl piston |
| Valve Stem Material | Stainless Steel |
| Valve Stem Travel | 0.4 in, 10 mm |
| UPC | 40085267815404 |
| Country of Origin | HU |
