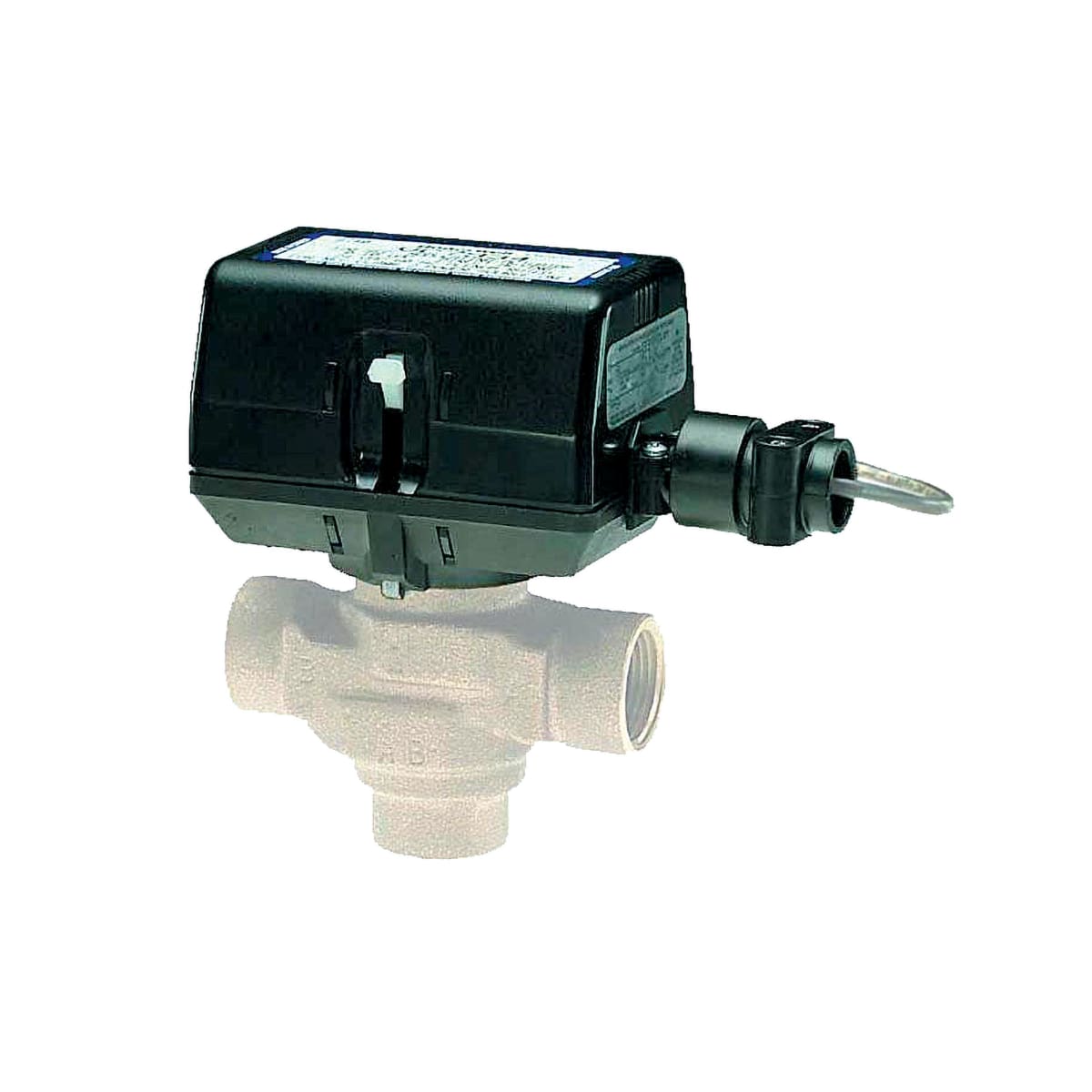

VC6934ZZ11/U VC Floating 3-Wire Actuator, Plenum Cable
- Part #
- VC6934ZZ11/U
- UPC
- 085267817288
$154.30
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Connection
- Plenum-rated cable
Full specifications 2 manufacturer documents
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
VC6934ZZ11/U — VC Floating 3-Wire Actuator, Plenum Cable.
Motorized 2-way and 3-way zone valves, replacement heads and actuators that let one boiler heat several zones independently.
Specifications
| Part Number | VC6934ZZ11/U |
|---|---|
| Fits | VC valve bodies |
| Control | Floating |
| Wiring | 3-wire |
| Cable | Plenum |
| UPC | 085267817288 |
| Country of Origin | HU |
| Application | HVAC |
| Approvals and Standards | Listed 94-5V, CSA Certified: LR1322-367, 89/336/ECC, 73/23/EEC |
| For Use With | 3000 Series 2-way, 7000 Series VC valve bodies only |
| Compatible With | Use in cold, warm, and hot water applications |
| Control Signal | SP3T (tri-state) Floating, 24 V AC |
| Manufacturer Warranty | 1 Year |
| Includes | Flexible conduit adapter |
| Media Temperature (Max) | 203 °F, 95 °C |
| Mounting Type | Direct Coupled |
| Ambient Operating Temperature (Min) | 32 °F, 0 °C |
| Ambient Operating Temperature (Max) | 150 °F, 65 °C |
| Operating Relative Humidity (Min) | 5% Non-condensing |
| Operating Relative Humidity (Max) | 95% Non-condensing |
| Protection Class | Double Insulated, IP40 |
| Fail-Safe Operation Type | Stays in place |
| Drive Time | 120 sec |
| Supply Voltage | 24 V AC |
| Power Supply Frequency | 50 Hz, 60 Hz |
| Power Consumption | 6 VA |
| Differential pressure for close-off (Max) | 60 psid, 400 kPa |
| Number of Internal Auxiliary Switches | 0 |
| Actuator Connection | Valve |
| Connection Length | 5 ft, 1.5 m |
| Connection Type | Plenum-rated cable |
| Stroke (Max) | 0.4 in, 10 mm |
| Product Height | 2.8 in, 70 mm |
| Product Weight | 0.84 lb, 0.38 kg |
| Product Width | 3.7 in, 94 mm |
| Product Depth | 2.7 in, 68 mm |
| Housing Material | Plastic |
