VC4013ZZ00/U VC Actuator
- Part #
- VC4013ZZ00/U
- UPC
- 085267132404
$82.66
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
Full specifications 1 manufacturer document
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details

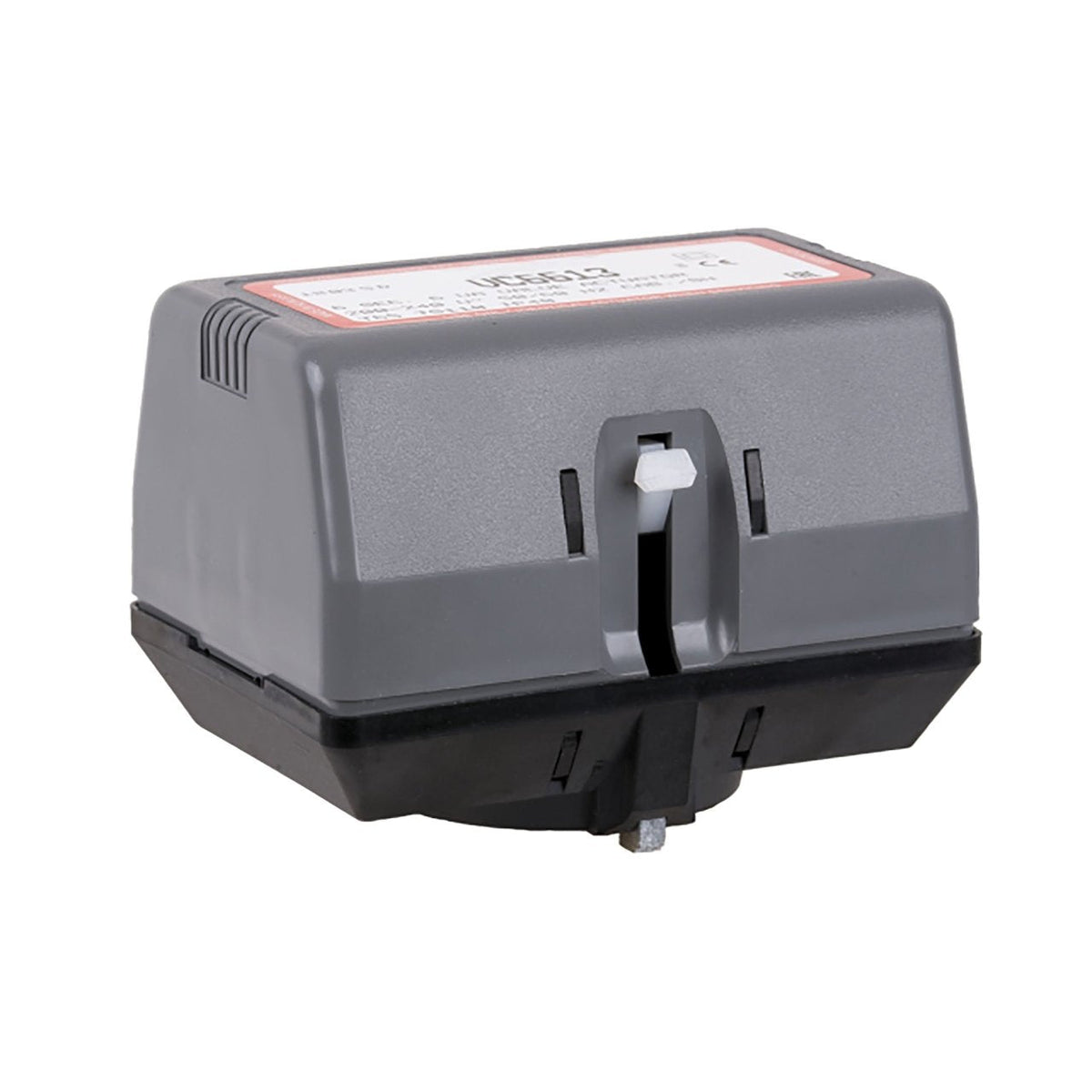

VC4013ZZ00/U — VC Actuator.
Motorized 2-way and 3-way zone valves, replacement heads and actuators that let one boiler heat several zones independently.
Specifications
| Part Number | VC4013ZZ00/U |
|---|---|
| Application | HVAC |
| For Use With | VC Series Valve |
| Control Signal | SPST |
| Manufacturer Warranty | 5 years |
| Includes | Valve body |
| Media Temperature (Max) | 203 °F, 95 °C |
| Shipping and Storage Temperature (Min) | 40 °F, -40 °C |
| Shipping and Storage Temperature (Max) | 150 °F, 65 °C |
| Fail-Safe Operation Type | Stays in place |
| Supply Voltage | 230 V, 50 - 60 Hz |
| Power Consumption | 6 VA |
| Differential pressure for close-off (Max) | 400 kPa |
| Product Height | 2.8 in, 70 mm |
| Product Weight | 0.73 lb, 0.33 kg |
| Product Width | 3.7 in, 94 mm |
| UPC | 085267132404 |
| Country of Origin | HU |
