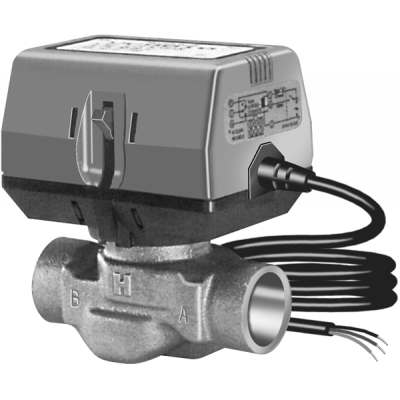

VC4011ZZ00/E VC Actuator, 120 VAC 50/60 Hz
- Part #
- VC4011ZZ00/E
- UPC
- 085267132176
$69.64
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Connection
- Cable
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
VC4011ZZ00/E — VC Actuator, 120 VAC 50/60 Hz.
Motorized 2-way and 3-way zone valves, replacement heads and actuators that let one boiler heat several zones independently.
Specifications
| Part Number | VC4011ZZ00/E |
|---|---|
| Voltage | 120 VAC, 50/60 Hz |
| UPC | 085267132176 |
| Country of Origin | HU |
| Application | HVAC |
| Approvals and Standards | UL Recognized, File# MH11826, CSA Certified: LR1322-367, 89/336/ECC, 73/23/EEC |
| For Use With | VC Series Valve |
| Compatible With | Use in cold, warm, and hot water applications |
| Control Signal | Two position, SPST |
| Manufacturer Warranty | 5 years |
| Includes | Valve body |
| Media Temperature (Max) | 203 °F, 95 °C |
| Mounting Type | Direct Coupled |
| Ambient Operating Temperature (Min) | 32 °F, 0 °C |
| Ambient Operating Temperature (Max) | 150 °F, 65 °C |
| Operating Relative Humidity (Min) | 5% Non-condensing |
| Operating Relative Humidity (Max) | 95% Non-condensing |
| Protection Class | IP40, Double Insulated |
| Fail-Safe Operation Type | Stays in place |
| Drive Time | 6 sec |
| Supply Voltage | 120 V AC |
| Power Supply Frequency | 50 Hz, 60 Hz |
| Power Consumption | 6 VA |
| Differential pressure for close-off (Max) | 60 psid, 400 kPa |
| Number of Internal Auxiliary Switches | 0 |
| Actuator Connection | Valve |
| Connection Length | 39 in, 1 m |
| Connection Type | Cable |
| Stroke (Max) | 0.4 in, 10 mm |
| Product Height | 2.8 in, 70 mm |
| Product Weight | 0.73 lb, 0.33 kg |
| Product Width | 3.7 in, 94 mm |
| Product Depth | 2.7 in, 68 mm |
| Housing Material | Plastic |
