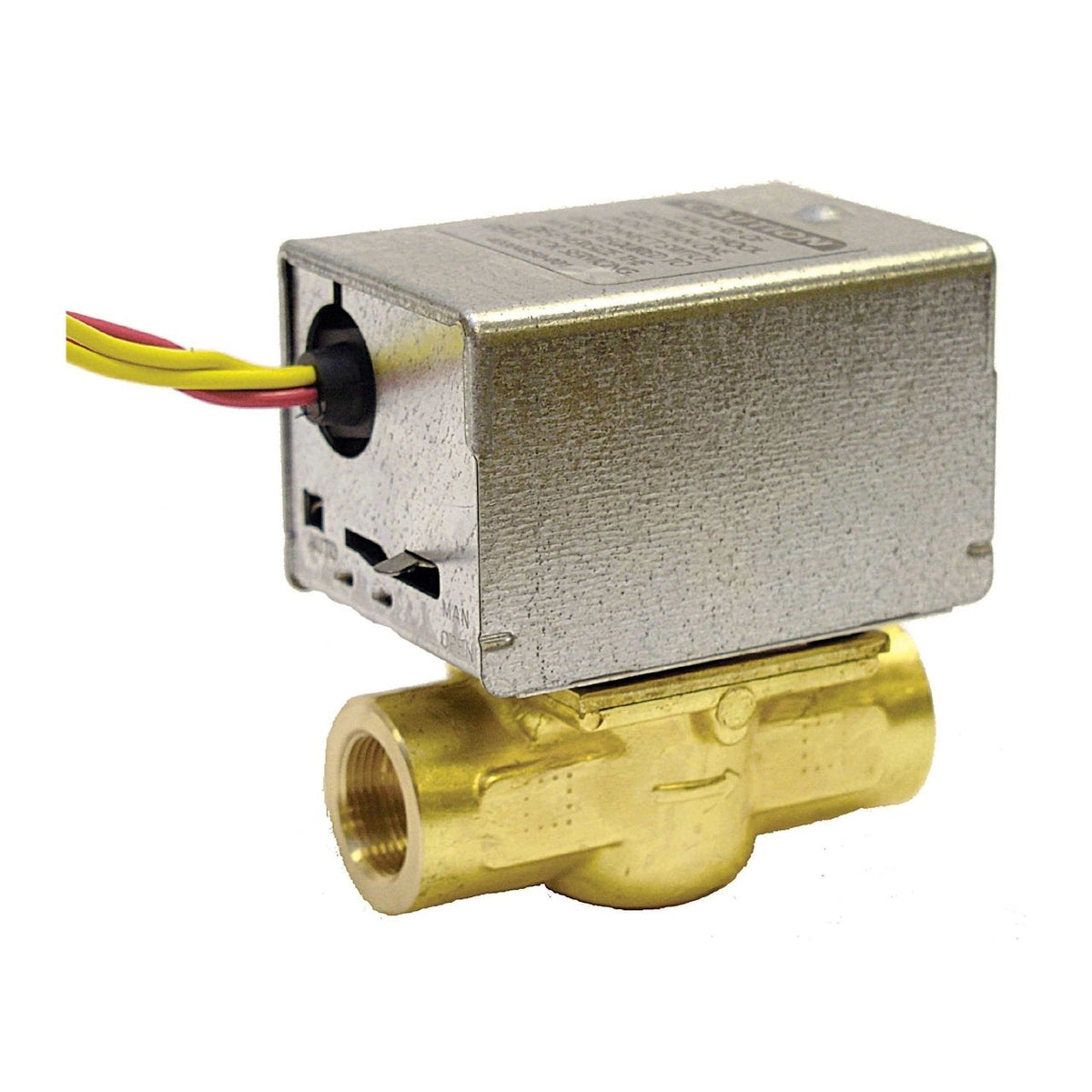

V8043G1125/U Zone Valve, 1/2 in Inverted Flare, 3.5 Cv, 24 VAC, End Switch

V8043G1125/U Zone Valve, 1/2 in Inverted Flare, 3.5 Cv, 24 VAC, End Switch

Part #
V8043G1125/U
UPC
085267810500
$145.40

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Material
Brass
Connection
Inverted Flare
Finish
Brass

Full specifications 5 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

V8043G1125/U — Zone Valve, 1/2 in Inverted Flare, 3.5 Cv, 24 VAC, End Switch.

Motorized 2-way and 3-way zone valves, replacement heads and actuators that let one boiler heat several zones independently.

Specifications

Part Number V8043G1125/U
Valve Ball Material Buna-N (NBR) Rubber
Approvals and Standards CSA Certified: File 1322
Color Brass
Includes Less Adapters, Manual Opener
Product Height 4 in, 102 mm
Product Length 2.38 in, 60 mm
Product Width 3.63 in, 92 mm
Manufacturer Warranty 5 years
Ambient Operating Temperature (Max) 125 °F, 52 °C
Connection Type Inverted Flare
Differential pressure for close-off (Max) 20 psi, 138 kPa
Fail-Safe Operation Type Spring return to close
Flow Coefficient 3.5 Cv; 3 Kvs
Media Temperature (Min) 50 °F, 10 °C
Media Temperature (Max) 200 °F, 93 °C
Actuator Control Signal Two position
Actuator Opening Time 15 seconds
Static Pressure Rating 125 psi, 862 kPa
Valve Body Material Brass
Valve Body Pattern Two-way, Straight Through
Valve Plug Material Buna-N (NBR) Rubber
Valve Seat Material Brass
Valve Start Position Closed
Valve Stem Material Stainless Steel
UPC 085267810500
Country of Origin HU
