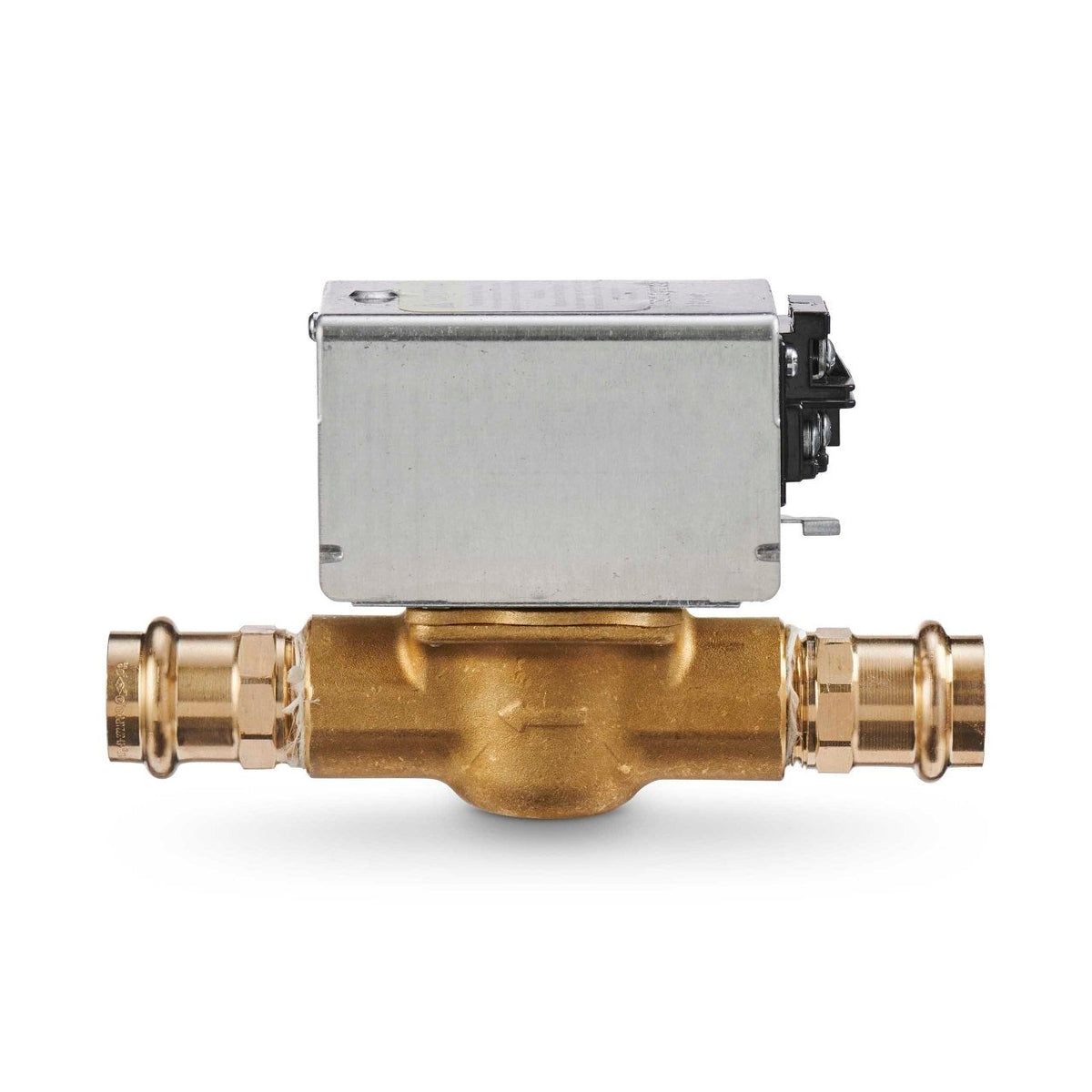

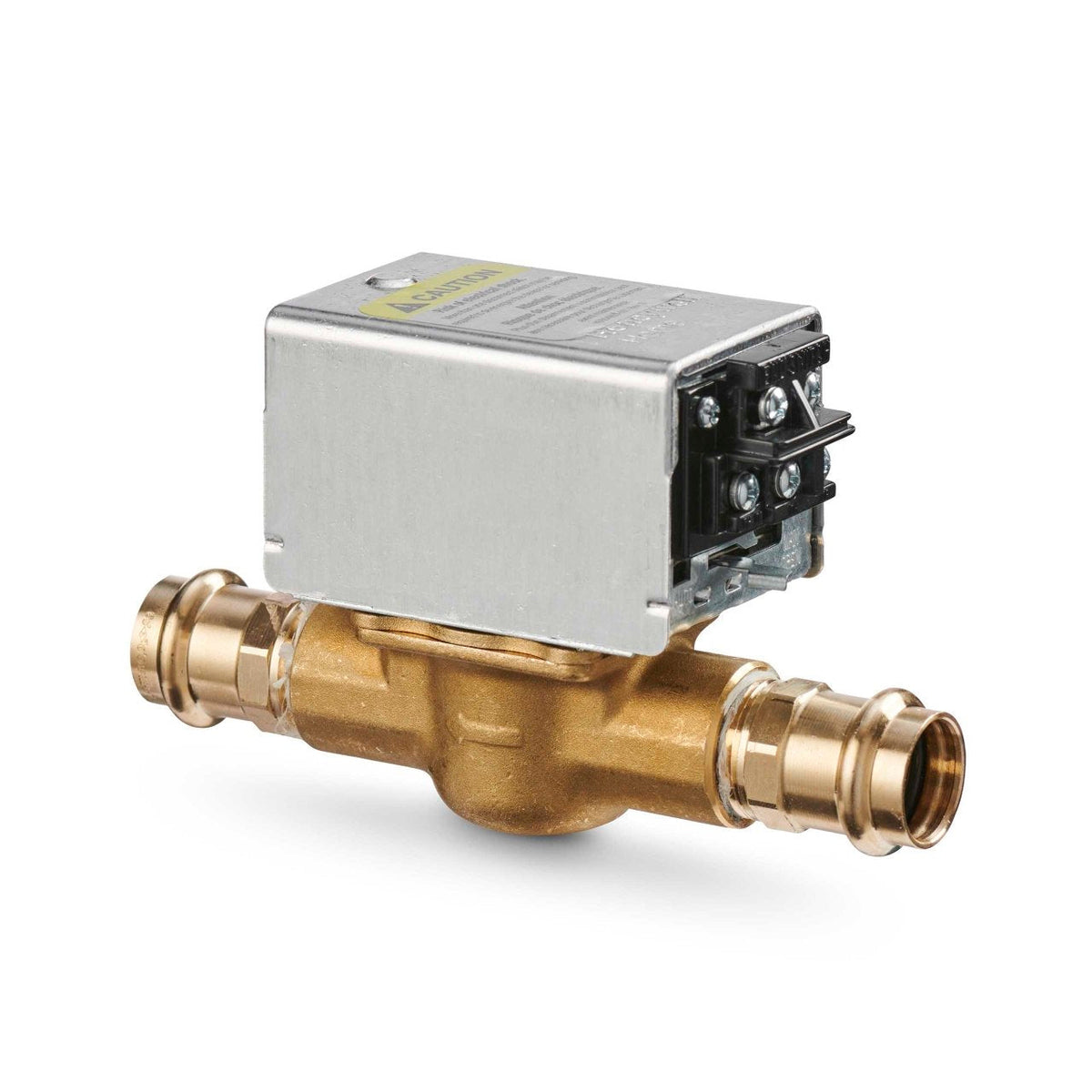

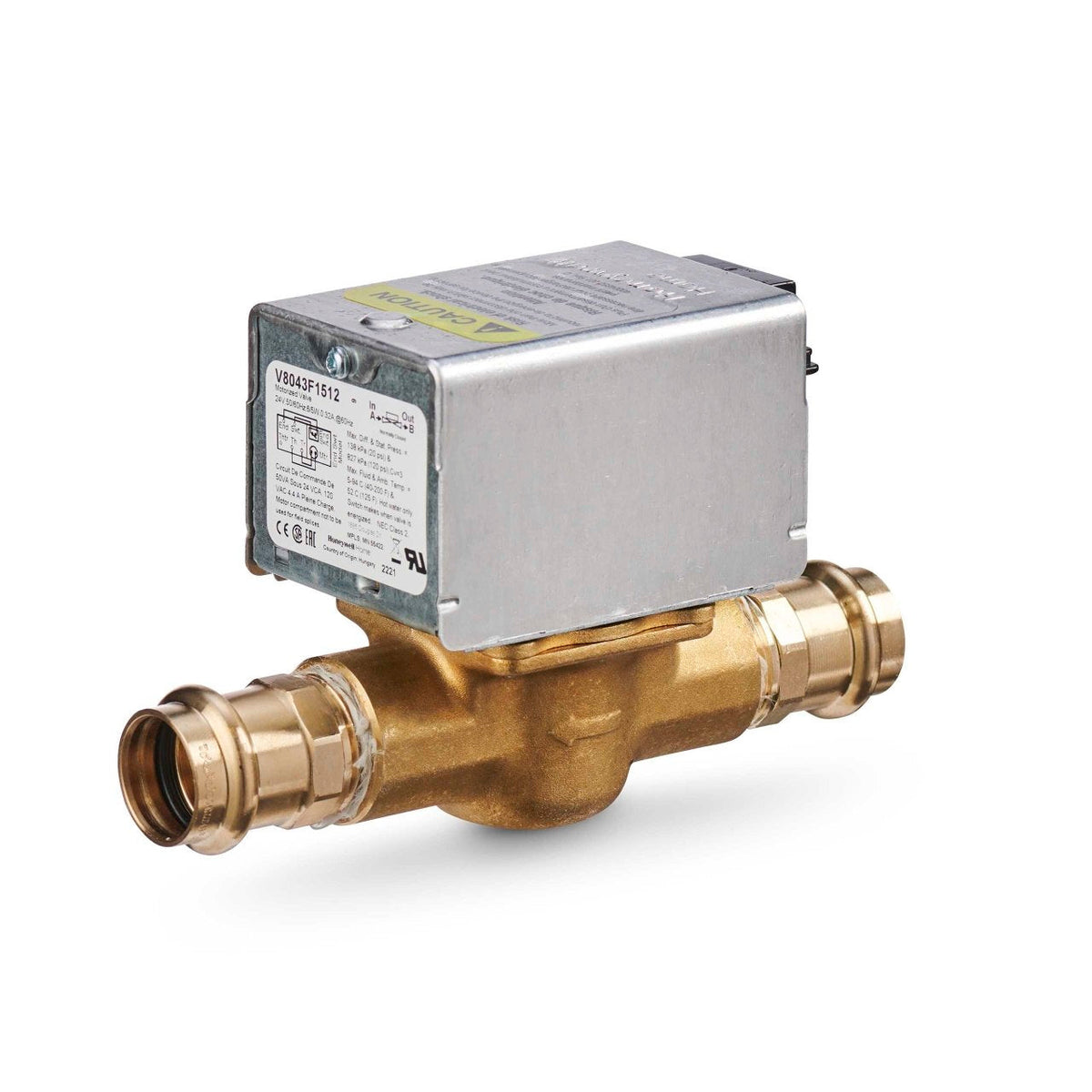

V8043F1513/U 1 in Press Zone Valve with Terminal Block and End Switch
V8043F1513/U 1 in Press Zone Valve with Terminal Block and End Switch
V8043F1513/U 1 in Press Zone Valve with Terminal Block and End Switch
V8043F1513/U 1 in Press Zone Valve with Terminal Block and End Switch

V8043F1513/U 1 in Press Zone Valve with Terminal Block and End Switch

Part #
V8043F1513/U
UPC
085267882446
$207.60

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Material
Brass
Connection
Pro Press
Finish
Brass, Black

Full specifications 8 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

V8043F1513/U — 1 in Press Zone Valve with Terminal Block and End Switch.

Motorized 2-way and 3-way zone valves, replacement heads and actuators that let one boiler heat several zones independently.

Specifications

Part Number V8043F1513/U
Power Loss Action Valve Closed
Valve Ball Material Buna-N (NBR) Rubber
Approvals and Standards UL Listed: File MH11826, CSA Certified: File 1322
Color Brass, Black
Includes End switch enclosure, Manual Opener
Product Height 4 in
Product Length 6.88 in
Product Width 2.34 in
Manufacturer Warranty 1 Year
Ambient Operating Temperature (Max) 125 °F, 52 °C
Connection Type Pro Press
Differential pressure for close-off (Max) 20 psi, 138 kPa
Fail-Safe Operation Type Spring return to close
Flow Coefficient 8.5 Cv, 8.5 Kvs
Media Temperature (Min) 40 °F, 4 °C
Media Temperature (Max) 200 °F, 93 °C
Actuator Control Signal Two position
Actuator Opening Time 15 seconds
Static Pressure Rating 120 PSI, 827 kPa
Valve Body Material Brass
Valve Body Pattern Two-way, Straight Through
Valve Plug Material Buna-N (NBR) Rubber
Valve Seat Material Brass
Valve Start Position Closed
Valve Stem Material Stainless Steel
UPC 085267882446
Country of Origin HU
