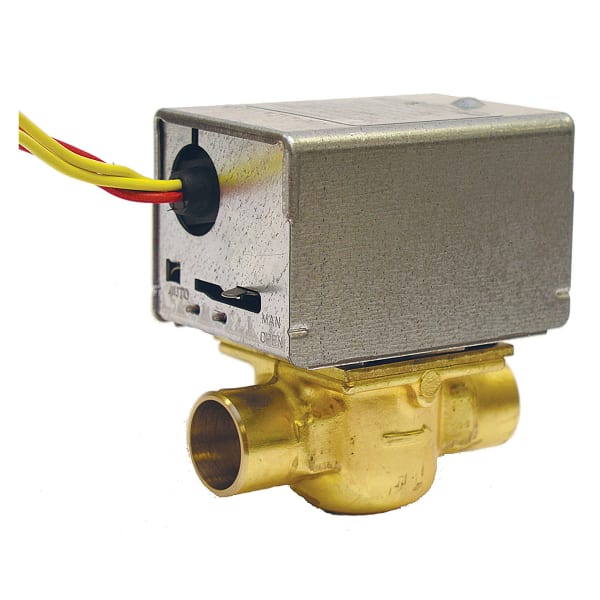

V8043E1020/U 24 Vac 1 in Sweat N.C. Zone Valve with 18 in Lead Wires

V8043E1020/U 24 Vac 1 in Sweat N.C. Zone Valve with 18 in Lead Wires

Part #
V8043E1020/U
UPC
085267990097
$161.96

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Size
1 in
Material
Brass
Connection
Sweat
Finish
Brass

Full specifications 6 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

V8043E1020/U — 24 Vac 1 in Sweat N.C. Zone Valve with 18 in Lead Wires.

Motorized 2-way and 3-way zone valves, replacement heads and actuators that let one boiler heat several zones independently.

Specifications

Part Number V8043E1020/U
Valve action Normally closed
Voltage 24 Vac
Connection size 1 in
Connection type Sweat
Lead wires 18 in
Max operating pressure 300 psi
Power Loss Action Valve Closed
Valve Ball Material Buna-N (NBR) Rubber
Approvals and Standards UL Listed: File MH11826
Color Brass
Includes End switch enclosure, Manual Opener
Product Height 4 in, 102 mm
Product Length 2.38 in, 60 mm
Product Width 3.69 in, 94 mm
Manufacturer Warranty 1 Year
Ambient Operating Temperature (Max) 125 °F, 52 °C
Differential pressure for close-off (Max) 20 psi, 138 kPa
Fail-Safe Operation Type Spring return to close
Flow Coefficient 3.5 Cv; 3 Kvs
Media Temperature (Min) 50 °F, 10 °C
Media Temperature (Max) 200 °F, 93 °C
Actuator Control Signal Two position
Actuator Opening Time 15 seconds
Static Pressure Rating 125 psi, 862 kPa
Valve Body Material Brass
Valve Body Pattern Two-way, Straight Through
Valve Plug Material Buna-N (NBR) Rubber
Valve Seat Material Brass
Valve Start Position Closed
Valve Stem Material Stainless Steel
