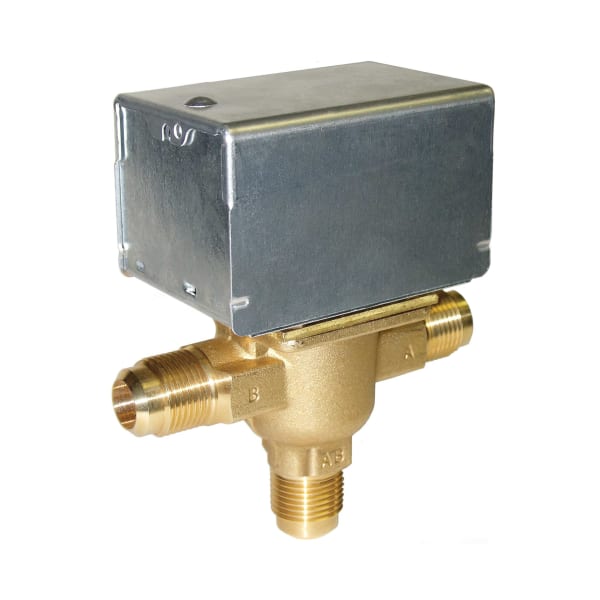

V4044A1001/U 120 Vac 1/2 in Flare Diverting QuickFit Zone Valve

V4044A1001/U 120 Vac 1/2 in Flare Diverting QuickFit Zone Valve

Part #
V4044A1001/U
UPC
085267103787
$157.23

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Size
1/2 in
Material
Brass
Connection
Flare
Finish
Brass

Full specifications 6 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

V4044A1001/U — 120 Vac 1/2 in Flare Diverting QuickFit Zone Valve.

Motorized 2-way and 3-way zone valves, replacement heads and actuators that let one boiler heat several zones independently.

Specifications

Part Number V4044A1001/U
Valve action Diverting
Voltage 120 Vac
Connection size 1/2 in
Connection type Flare
QuickFit actuator Yes
Max operating pressure 300 psi
Valve Ball Material Buna-N (NBR) Rubber
Approvals and Standards UL Listed: File MH11826
Color Brass
Includes Manual Opener
Product Height 5.38 in, 136 mm
Product Length 2.38 in, 60 mm
Product Weight 1.09 lb
Product Width 4.69 in, 118 mm
Manufacturer Warranty 1 Year
Ambient Operating Temperature (Max) 125 °F, 52 °C
Differential pressure for close-off (Max) 20 psi, 138 kPa
Fail-Safe Operation Type Spring return to port A
Flow Coefficient 4 Cv|3.4 Kvs
Media Temperature (Min) 40 °F, 5 °C
Media Temperature (Max) 200 °F, 93 °C
Actuator Control Signal Two position
Actuator Opening Time 30 seconds
Static Pressure Rating 125 psi, 862 kPa
Valve Body Material Brass
Valve Body Pattern Three-way, Diverting
Valve Plug Material Buna-N (NBR) Rubber
Valve Seat Material Brass
Valve Start Position Port A Closed
Valve Stem Material Stainless Steel
