V4043E1003/U Zone Valve, 1/2 in Sweat, 120 VAC
- Part #
- V4043E1003/U
- UPC
- 085267103732
- Type
- 2-Way Zone Valve
$162.03
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Material
- Brass
- Connection
- Sweat
- Finish
- Brass
Full specifications 2 manufacturer documents
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details

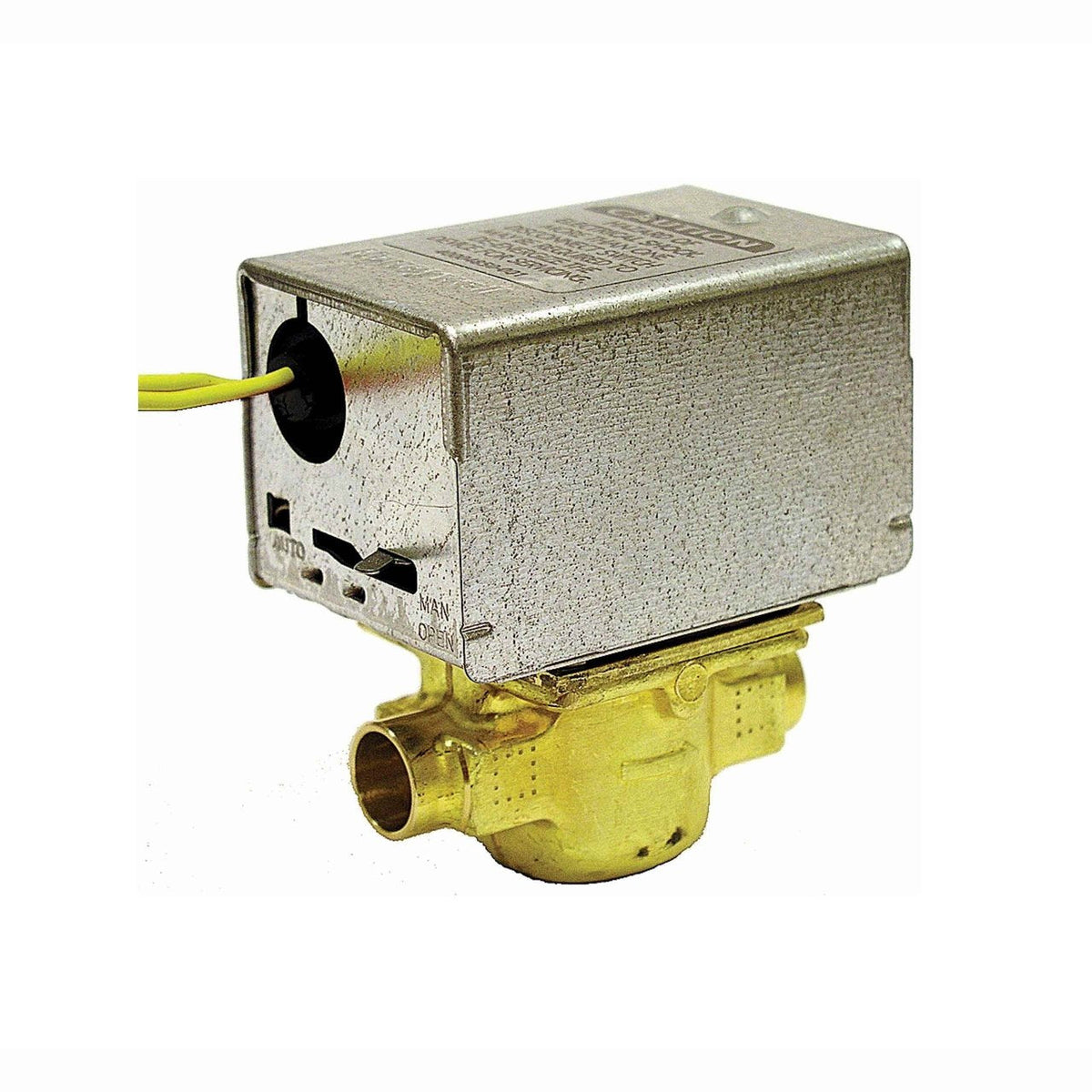

V4043E1003/U — Zone Valve, 1/2 in Sweat, 120 VAC.
Motorized 2-way and 3-way zone valves, replacement heads and actuators that let one boiler heat several zones independently.
Specifications
| Part Number | V4043E1003/U |
|---|---|
| Valve Ball Material | EPDM |
| Approvals and Standards | UL Listed: File MH11826 |
| Color | Brass |
| Includes | Manual Opener |
| Product Height | 4 in, 102 mm |
| Product Length | 2.38 in, 60 mm |
| Product Width | 3.69 in, 89 mm |
| Manufacturer Warranty | 1 Year |
| Ambient Operating Temperature (Max) | 125 °F, 52 °C |
| Connection Type | Sweat |
| Differential pressure for close-off (Max) | 20 psi, 138 kPa |
| Fail-Safe Operation Type | Spring return to close |
| Flow Coefficient | 3.5 Cv, 3 Kvs |
| Media Temperature (Min) | 40 °F, 5 °C |
| Media Temperature (Max) | 240 °F, 116 °C |
| Actuator Control Signal | Two position |
| Actuator Opening Time | 15 seconds |
| Static Pressure Rating | 125 psi, 862 kPa |
| Valve Body Material | Brass |
| Valve Body Pattern | Two-way, Straight Through |
| Valve Plug Material | EPDM Rubber Ball |
| Valve Seat Material | Brass |
| Valve Start Position | Closed |
| Valve Stem Material | Stainless Steel |
| UPC | 085267103732 |
| Country of Origin | HU |
