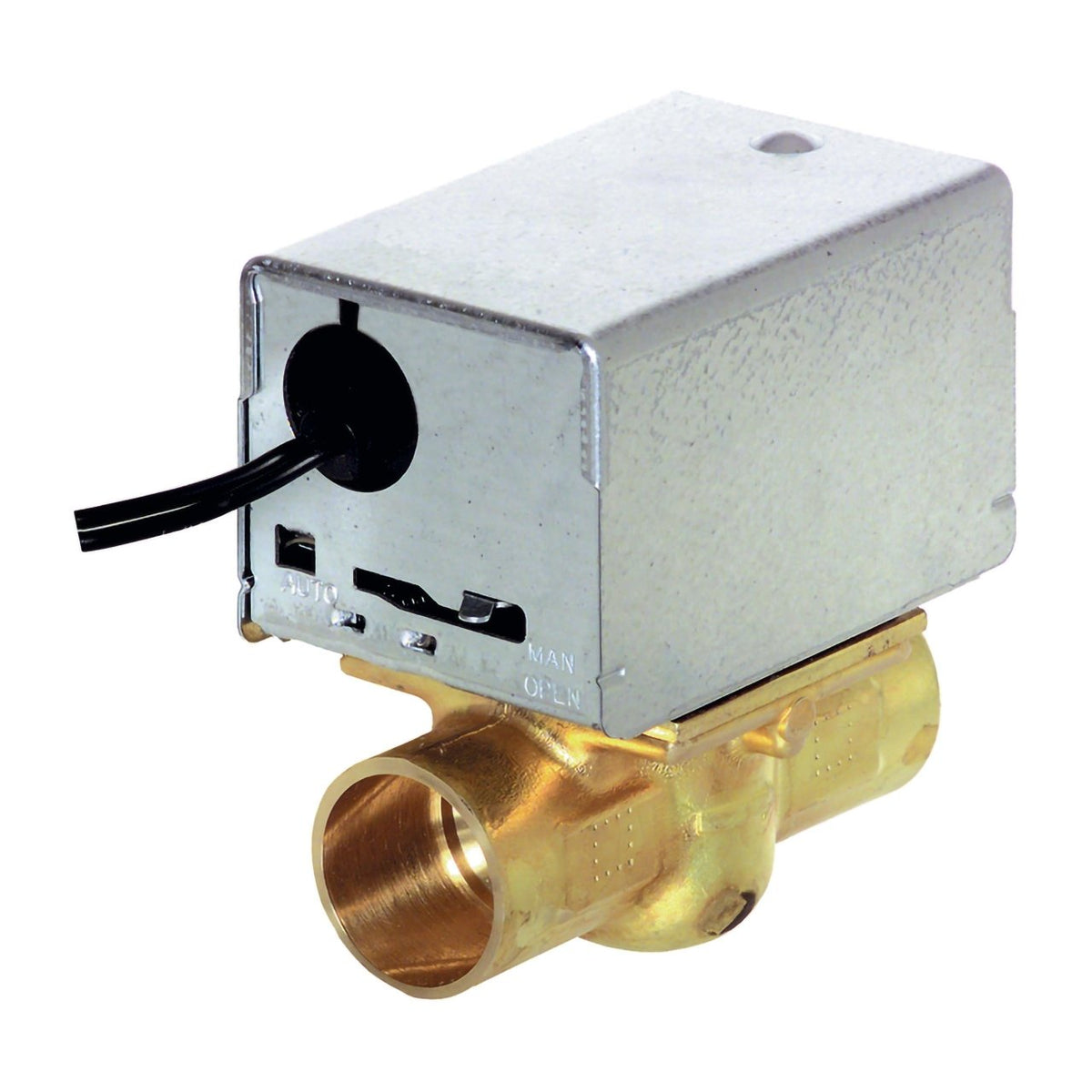

V4043A1317/U Zone Valve, 1 in Sweat, 8 Cv, 8 psi Close-Off, 120 VAC
- Part #
- V4043A1317/U
- UPC
- 085267103657
- Type
- 2-Way Zone Valve
$209.57
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Material
- Brass
- Connection
- Sweat
- Finish
- Brass
Full specifications 3 manufacturer documents
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
V4043A1317/U — Zone Valve, 1 in Sweat, 8 Cv, 8 psi Close-Off, 120 VAC.
Motorized 2-way and 3-way zone valves, replacement heads and actuators that let one boiler heat several zones independently.
Specifications
| Part Number | V4043A1317/U |
|---|---|
| Valve Ball Material | Buna-N (NBR) Rubber |
| Approvals and Standards | UL Listed: File MH11826 |
| Color | Brass |
| Includes | Manual Opener |
| Product Height | 4 in, 102 mm |
| Product Length | 2.38 in, 60 mm |
| Product Width | 3.69 in, 94 mm |
| Manufacturer Warranty | 1 Year |
| Ambient Operating Temperature (Max) | 125 °F, 52 °C |
| Connection Type | Sweat |
| Differential pressure for close-off (Max) | 8 psi, 55 kPa |
| Flow Coefficient | 8 Cv, 6.9 Kvs |
| Media Temperature (Min) | 40 °F, 5 °C |
| Media Temperature (Max) | 200 °F, 93 °C |
| Static Pressure Rating | 125 psi, 862 kPa |
| Valve Body Material | Brass |
| Valve Body Pattern | Two-way, Straight Through |
| Valve Plug Material | Buna-N (NBR) Rubber |
| Valve Seat Material | Brass |
| Valve Start Position | Closed |
| Valve Stem Material | Stainless Steel |
| UPC | 085267103657 |
| Country of Origin | HU |
