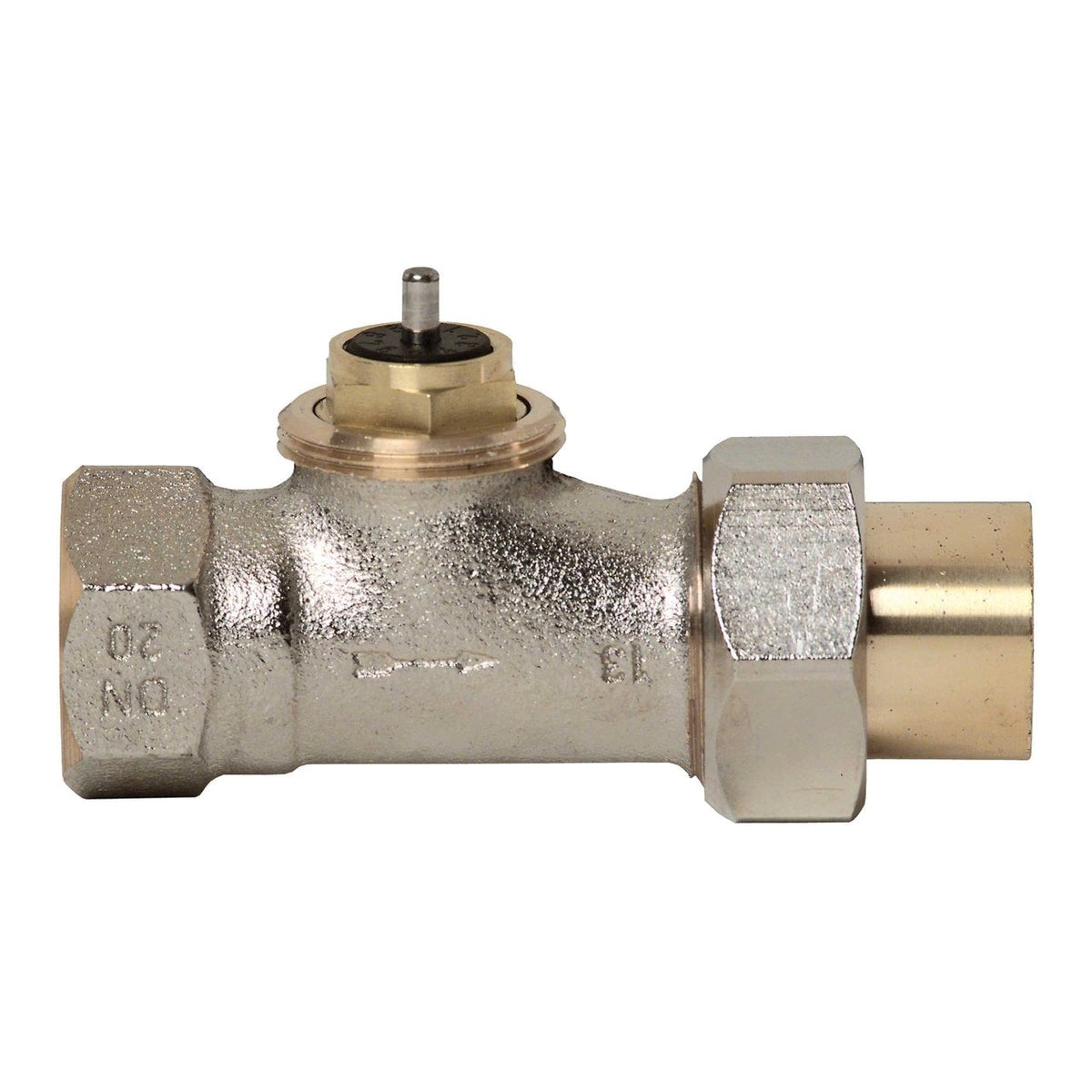

V2040DSL25 V2000 Valve Body with Adjustable Cartridge, 1 in Straight
- Part #
- V2040DSL25
- UPC
- 4029289040015
$97.41
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Size
- 1 in
- Material
- Nickel Plated Bronze
- Connection
- Inlet--NPT, Outlet--Threaded
- Finish
- Nickel, Bronze
Full specifications 3 manufacturer documents
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
V2040DSL25 — V2000 Valve Body with Adjustable Cartridge, 1 in Straight.
Manual and thermostatic radiator valves and heads for room-by-room control.
Specifications
| Part Number | V2040DSL25 |
|---|---|
| Valve Type | Thermostatic Radiator Valve |
| Application | Especially suited for base boards and straight runs where manual valves were not originally installed. |
| DN Size | DN25 |
| Connection Size | 1 in |
| Connection Type | Inlet--NPT, Outlet--Threaded |
| Steam Capacity | Yes |
| Color | Nickel, Bronze |
| Flow Coefficient | 2.7 Cv |
| Valve Body Material | Nickel Plated Bronze |
| Valve Body Pattern | Straight |
| Valve Capacity | Standard - 70,500 Btu/hr |
| Differential Pressure (Max) | 15 psi with T100 or T200, 36 psi with MV100: 36 psi, 3 psi for low noise |
| Compatible With | Hot Water, Steam |
| Manufacturer Warranty | 1 Year |
| Product Length | 9 in, 228 mm |
| UPC | 4029289040015 |
| Country of Origin | CZ |
Ratings & details
- TRV Selection Guide (English) (0.5MB PDF)
