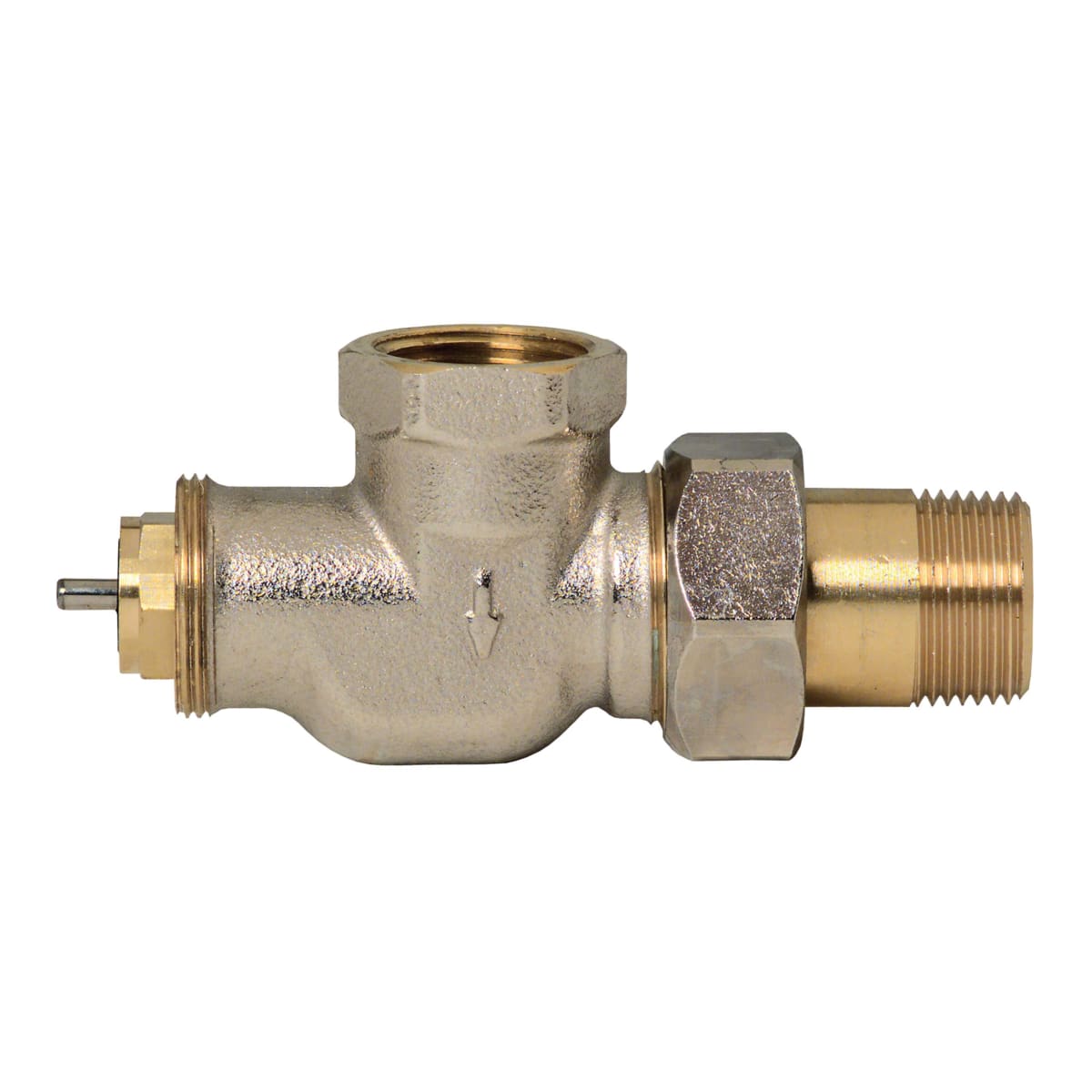

V2040ASL15 V2000 Valve Body with Adjustable Cartridge, 1/2 in Horizontal Angle

V2040ASL15 V2000 Valve Body with Adjustable Cartridge, 1/2 in Horizontal Angle

Part #
V2040ASL15
UPC
085267278997
$40.14

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Size
1/2 in
Material
Nickel Plated Bronze
Connection
Inlet--NPT, Outlet--Threaded
Finish
Nickel, Bronze

Full specifications 3 manufacturer documents

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

V2040ASL15 — V2000 Valve Body with Adjustable Cartridge, 1/2 in Horizontal Angle.

Manual and thermostatic radiator valves and heads for room-by-room control.

Specifications

Part Number V2040ASL15
Size 1/2 in
Pattern Horizontal angle
Inlet Female NPT
Outlet Male NPT tailpiece
Cartridge Adjustable
Replaces V100F1054
UPC 085267278997
Country of Origin CZ
Valve Type Thermostatic Radiator Valve
Application Replaces most manual valves with minimum piping changes.
DN Size DN15
Connection Size 1/2 in
Connection Type Inlet--NPT, Outlet--Threaded
Steam Capacity Yes
Color Nickel, Bronze
Flow Coefficient 2.5 Cv
Valve Body Material Nickel Plated Bronze
Valve Body Pattern Horizontal Angle
Valve Capacity Standard - 59,100 Btu/hr
Differential Pressure (Max) 15 psi with T100 or T200, 36 psi with MV100: 36 psi, 3 psi for low noise
Compatible With Hot Water, Steam
Manufacturer Warranty 1 Year
For Use With T100A, T100M, and T100V controls to conform to horizontal mounting requirements
Product Length 6.63 in, 169 mm

Ratings & details

  • TRV Selection Guide (English) (0.5MB PDF)

Manufacturer documents
