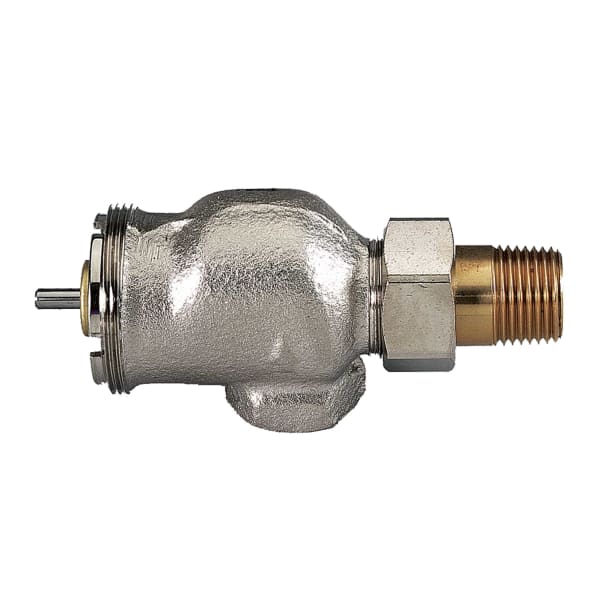

V110F1002/U Horizontal Angle Pattern 1/2 in High Capacity Valve
- Part #
- V110F1002/U
- UPC
- 085267103275
$94.43
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Size
- 1/2 in
- Material
- Bronze
- Connection
- Threaded
- Finish
- Nickel, Bronze
Full specifications 3 manufacturer documents
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
V110F1002/U — Horizontal Angle Pattern 1/2 in High Capacity Valve.
Manual and thermostatic radiator valves and heads for room-by-room control.
Specifications
| Part Number | V110F1002/U |
|---|---|
| Pattern | Horizontal angle |
| Connection size | 1/2 in |
| Cv | 4.6 |
| Series | High Capacity |
| Valve Type | Thermostatic Radiator Valve |
| DN Size | DN15 |
| Connection Type | Threaded |
| Steam Capacity | Yes |
| Color | Nickel, Bronze |
| Flow Coefficient | 4.6 Cv |
| Valve Body Material | Bronze |
| Valve Body Pattern | Horizontal Angle |
| Valve Capacity | High - 127,000 Btu/hr |
| Differential Pressure (Max) | 17 psi |
| Compatible With | Hot Water, Steam |
| For Use With | T104 Thermostatic Actuator |
| Product Length | 7.38 in, 187 mm |
