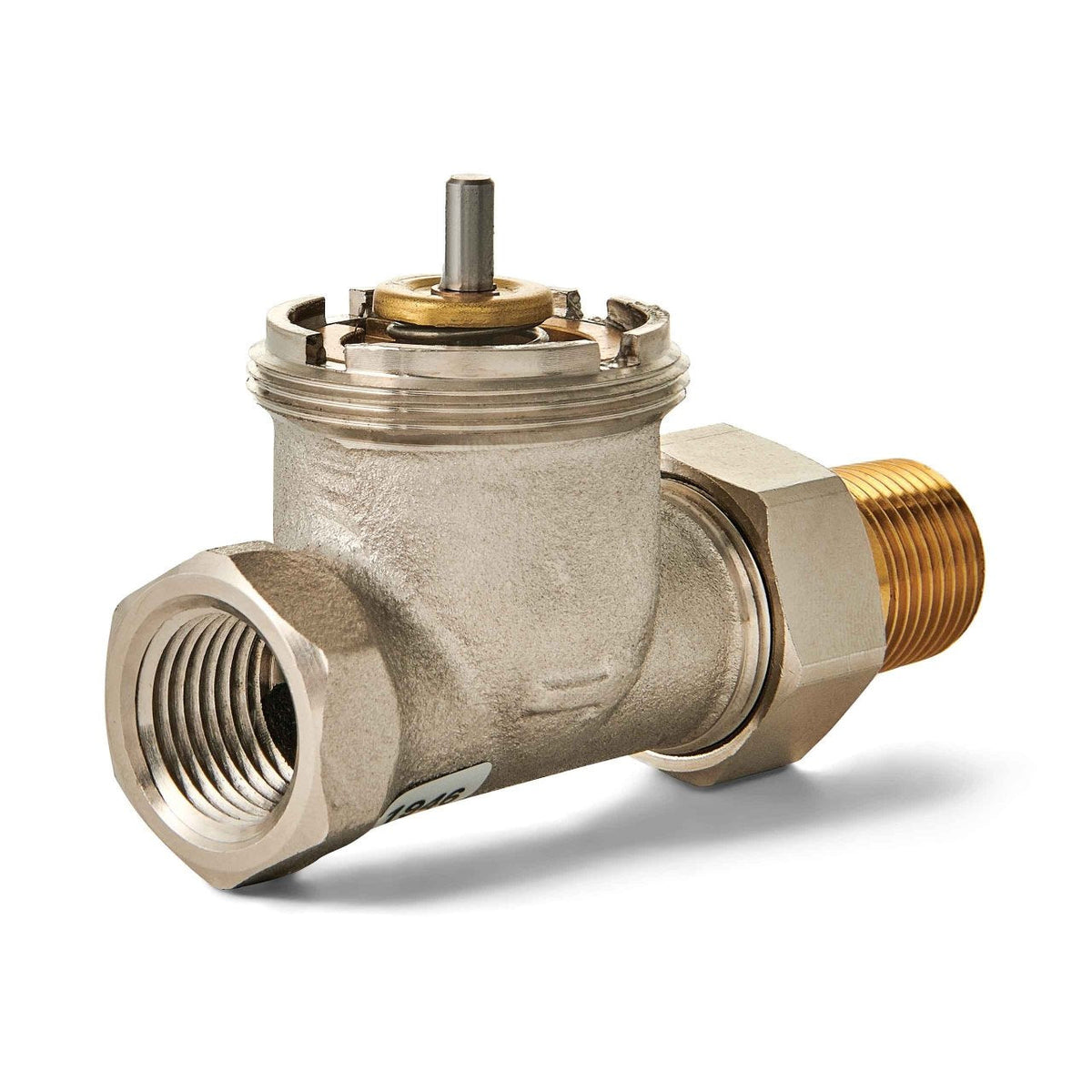

V110D1024/U V110 Valve Body, 1-1/4 in, Straight Pattern, MNPT Tailpiece Outlet
- Part #
- V110D1024/U
- UPC
- 085267103176
$184.90
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Size
- 1 1/4 in
- Material
- Nickel Plated Bronze
- Connection
- Threaded
- Finish
- Nickel, Bronze
Full specifications 3 manufacturer documents
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
V110D1024/U — V110 Valve Body, 1-1/4 in, Straight Pattern, MNPT Tailpiece Outlet.
Manual and thermostatic radiator valves and heads for room-by-room control.
Specifications
| Part Number | V110D1024/U |
|---|---|
| Valve Type | Thermostatic Radiator Valve |
| Application | Precise and automatic control of room temperature in two-pipe systems by modulating the flow of hot water or steam through high capacity heating units. |
| DN Size | DN32 |
| Connection Size | 1 1/4 in |
| Connection Type | Threaded |
| Steam Capacity | Yes |
| Color | Nickel, Bronze |
| Flow Coefficient | 8 Cv |
| Valve Body Material | Nickel Plated Bronze |
| Valve Body Pattern | Straight |
| Valve Capacity | High - 193,000 Btu/hr |
| Differential Pressure (Max) | 17 psi |
| Compatible With | Hot Water, Steam |
| For Use With | T104 Thermostatic Actuator |
| Product Length | 5.88 in, 149 mm |
| UPC | 085267103176 |
| Country of Origin | MX |
