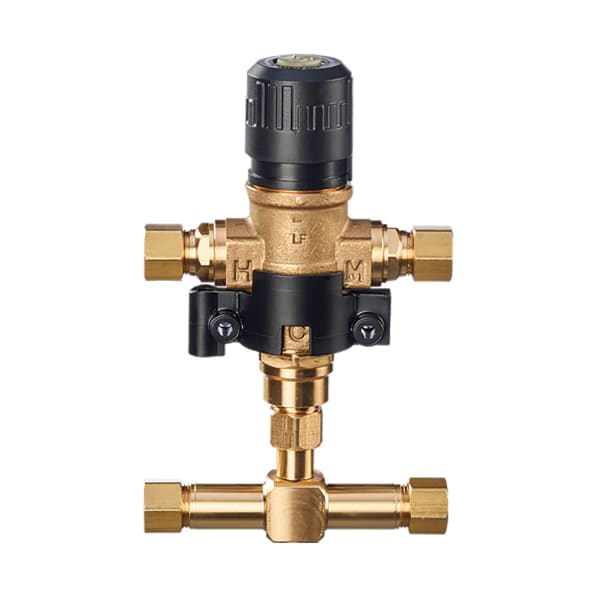

UMV500-LF/U 3/8 in Universal Undersink Mixing Valve for 3 or 4 Port LF

UMV500-LF/U 3/8 in Universal Undersink Mixing Valve for 3 or 4 Port LF

Part #
UMV500-LF/U
UPC
085267684224
$112.64

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Size
3/8 in
Material
Forged Brass
Connection
Compression
Finish
Metallic

Full specifications 5 manufacturer documents

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

UMV500-LF/U — 3/8 in Universal Undersink Mixing Valve for 3 or 4 Port LF.

Thermostatic mixing valves blend hot and cold to a set outlet temperature, protecting against scalding while letting you store water hotter. Lead-free models are for potable water; heating-only models are for hydronic loops.

Specifications

Part Number UMV500-LF/U
Type Thermostatic mixing valve
Size 3/8 in
Lead free Yes
UPC 085267684224
Controlled Media Potable Water, Non Potable Water
Re-Circulation Yes
Approvals and Standards ASSE 1017 Listed, CSA Certified/Listed, IAPMO/UPC Listed, NSF/ANSI/CAN 61/372 Compliant, NSF/ANSI/CAN 61: Q ≤ 1
Color Metallic
Includes Compression Nuts, Ferrules, Mounting Standoffs, Check Valves on Hot and Cold Inlets, Four Inlet Adapter
Product Height 5.97 in, 152 mm
Product Length 3.16 in
Product Weight 1.2 lb
Product Width 3.58 in
Manufacturer Warranty 18 Months
Adjustment Means Handwheel
Cold Inlet Temperature (Min) 41 °F, 5 °C
Cold Inlet Temperature (Max) 59 °F, 15 °C
Flex Connector Included No
Flow Coefficient 0.36 Cv
Flow Rate (Min) 0.52 gpm, 2.0lpm
Flow Rate (Max) 4.3 gpm, 16.5 lpm
Hot Inlet Temperature (Min) 140 °F, 60 °C
Hot Inlet Temperature (Max) 176 °F, 80 °C
Inlet Pressure (Min) 20 psi, 1.4 Bar
Inlet Pressure (Max) 125 psi, 8.6 Bar
Number of Check Valves 2
Operating Mixing Temperature (Min) 80 °F, 27 °C
Operating Mixing Temperature (Max) 120 °F, 49 °C
Operating Pressure (Max) 125 psi, 861 kPa
Seal Material EPDM Rubber
Valve Body Material Forged Brass
Connection Size 3/8 in
Connection Type Compression
Nominal Diameter DN10
Number of Connections 4
