TX-25V/U Potable Water Expansion Tank, 10.3 Gallon, 1 in Female NPT
- Part #
- TX-25V/U
- UPC
- 085267830140
$265.34
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Size
- 3/4 in
- Material
- Steel
- Connection
- NPT
- Finish
- White
Full specifications 1 manufacturer document
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details

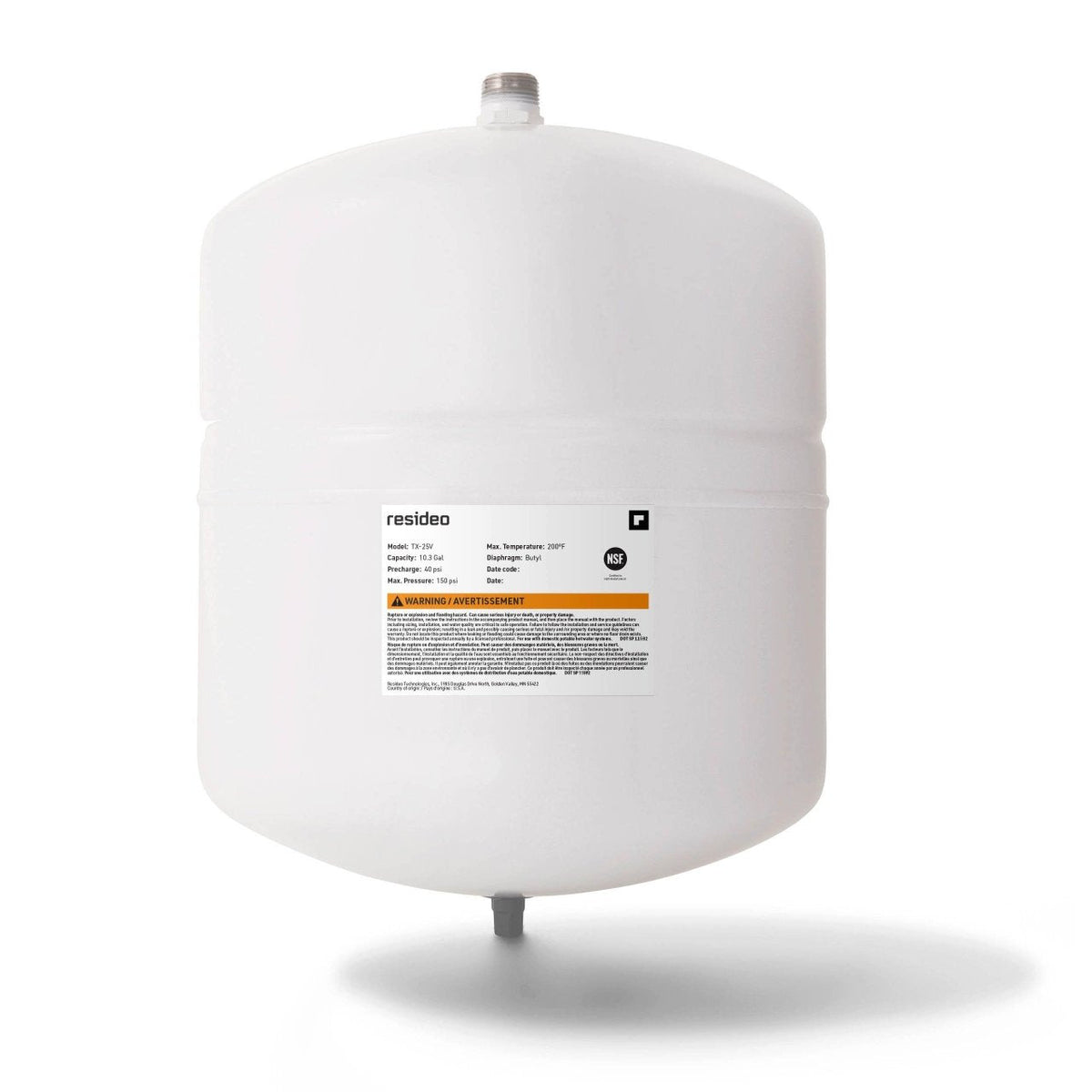

TX-25V/U — Potable Water Expansion Tank, 10.3 Gallon, 1 in Female NPT.
Air and dirt separators, hydraulic separators, magnetic filters, vents, expansion tanks, fill systems and system treatment that protect a hydronic loop.
Specifications
| Part Number | TX-25V/U |
|---|---|
| Application | Hydronic Volume Expansion |
| Approvals and Standards | SBCCI, NSF/ANSI 61, City of Los Angeles, IAPMO listed |
| Compatible With | Potable Hot Water Systems |
| Operating Temperature (Max) | 200 °F, 93 °C |
| Tank Safe Operating Pressure (Max) | 150 psi, 1034 kPa |
| Connection Size | 3/4 in |
| Connection Type | NPT |
| Connector Type | Male |
| Manufacturer Warranty | 7 Years |
| Color | White |
| Body Material | Steel |
| Diaphragm Material | Butyl/EPDM Compound |
| Surface Protection | Polypropylene |
| Maximum Acceptance Volume | 10.3 gal |
| Product Height | 19.25 in, 489 mm |
| Product Weight | 23 lb, 10.4 kg |
| Pre-Charge Pressure | 40 psi, 276 kPa |
| Hazmat Information | Dangerous Goods In Excepted Quantities |
| UPC | 085267830140 |
