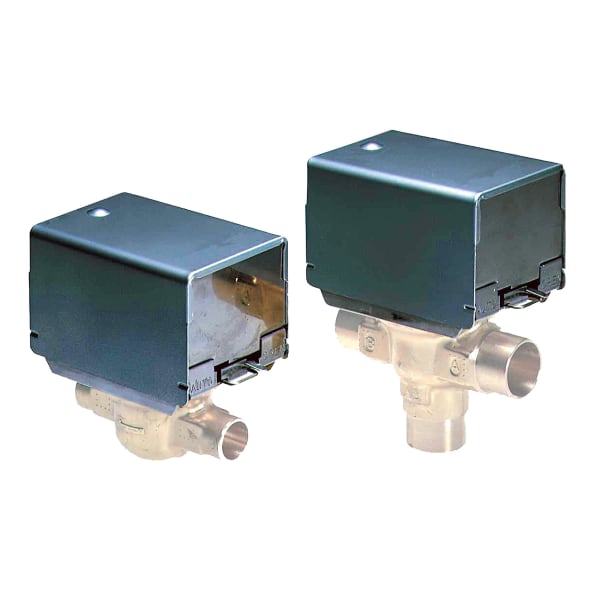

Two-Position Actuator for VU53 Normally Closed Valve Bodies, 24 V, 50/60 Hz VU843A1004/U
- Part #
- VU843A1004/U
- UPC
- 085267823197
$89.66
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Connection
- Leads
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
VU843A1004/U — Two-Position Actuator for VU53 Normally Closed Valve Bodies, 24 V, 50/60 Hz.
Motorized 2-way and 3-way zone valves, replacement heads and actuators that let one boiler heat several zones independently.
Specifications
| Part Number | VU843A1004/U |
|---|---|
| Series | VU |
| Control type | Two-position |
| Voltage | 24 Vac |
| Application | For controlling the flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors |
| For Use With | 2-Way NC VU Valve Body (VU53) |
| Compatible With | VU52, VU53, and VU54 Fan Coil Valves |
| Control Signal | Two position; SPST |
| Ambient Operating Temperature (Min) | 34 °F at 200 °F Fluid, 1 °C at 93 °C Fluid |
| Ambient Operating Temperature (Max) | 125 °F at 200 °F Fluid, 52 °C at 93 °C Fluid |
| Fail-Safe Operation Type | Spring Return |
| Spring Return Timing | 4 Sec |
| Supply Voltage | 24 V AC |
| Power Supply Frequency | 50 Hz, 60 Hz |
| Current Draw | 0.32 A |
| Number of Internal Auxiliary Switches | 0 |
| Fire and Smoke Rated | No |
| Manual Override Included | Yes |
| Connection Length | 6 in, 0.15 m |
| Connection Type | Leads |
| Stroke (Max) | 22 ° |
| Product Height | 2.38 in, 62 mm |
| Product Width | 3.5 in, 88 mm |
| Product Depth | 2 3/8 in, 60 mm |
| Housing Material | Stainless Steel Case, Aluminum Cover |
