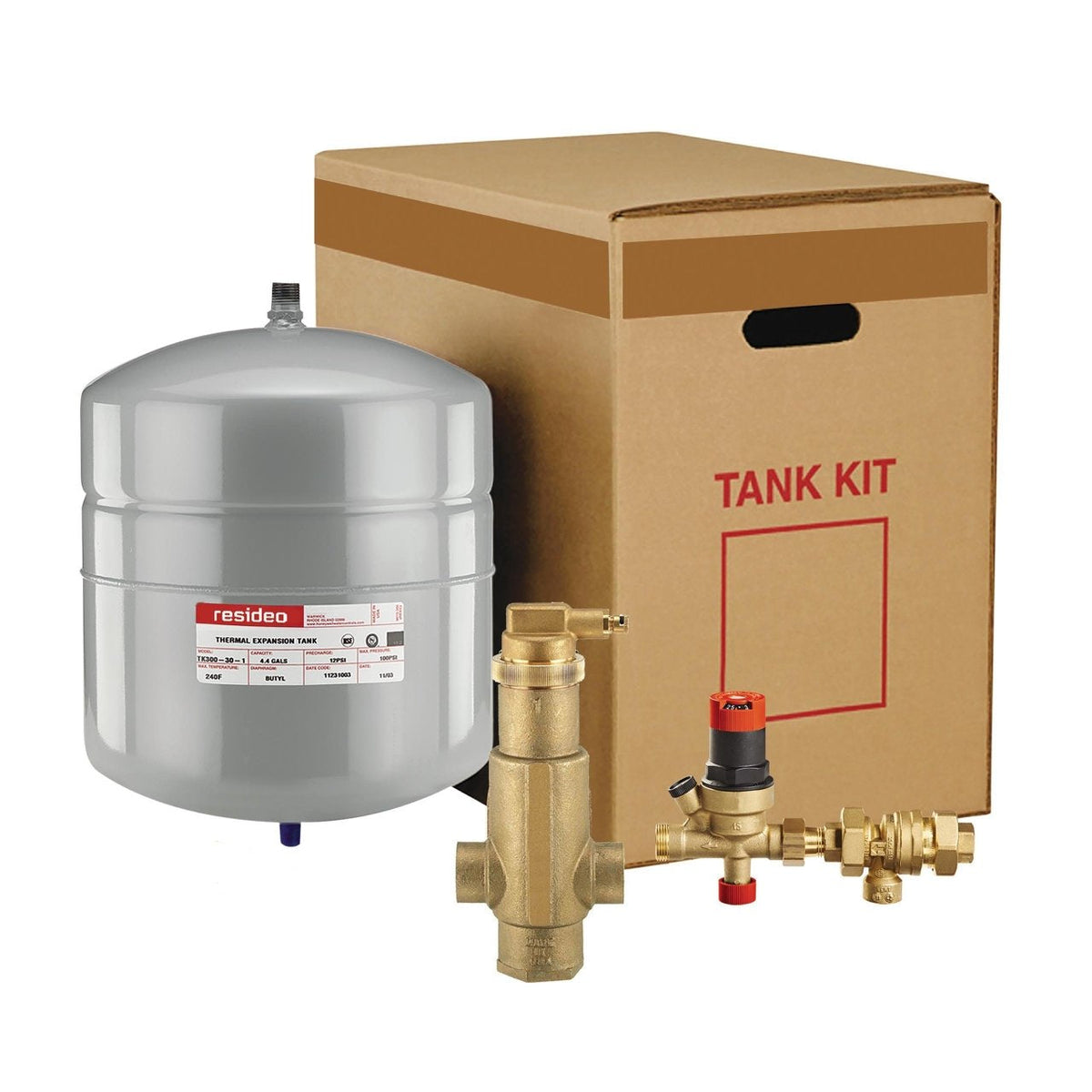

TK60PV125FMNC/U Boiler Trim Kit, TK300-60 Tank, PV125 1-1/4 in NPT Supervent, FM911 Fill Valve
- Part #
- TK60PV125FMNC/U
- UPC
- 085267117289
- Type
- Boiler Trim Kits
$434.11
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Finish
- Gray
Full specifications 4 manufacturer documents
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
TK60PV125FMNC/U — Boiler Trim Kit, TK300-60 Tank, PV125 1-1/4 in NPT Supervent, FM911 Fill Valve.
Igniters, sensors, blowers, trim kits, low water cut-offs and service parts. Check the boiler model and serial number before ordering.
Specifications
| Part Number | TK60PV125FMNC/U |
|---|---|
| Application | Boiler Installation |
| Compatible With | Hot Water, Solar |
| Includes | TK300-60, PV125, FM911 |
| Manufacturer Warranty | 1 Year |
| Operating Temperature (Max) | 240 °F, 115 °C |
| Connection Size-SuperVent | 1 1/4 in |
| Connection Size-Tank | 1/2 in |
| Connection Type-SuperVent | Female NPT |
| Operating Pressure (Max) | 100 psi, 689 kPa |
| Pre-Charge Pressure | 12 psi, 83 kPa |
| Tank Safe Operating Pressure (Max) | 100 psi, 689 kPa |
| Product Diameter | 11 in, 279 mm |
| Volume | 7.6 gal, 28.8 L |
| Maximum Acceptance Volume | 2.5 gal, 9.5 L |
| Box Height | 23 in, 584 mm |
| Box Weight | 17.5 lb, 7.95 kg |
| Product Height | 23 in, 584 mm |
| Product Weight | 17.5 lb, 7.95 kg |
| Color | Gray |
| Hazmat Information | Dangerous Goods In Excepted Quantities |
| UPC | 085267117289 |
