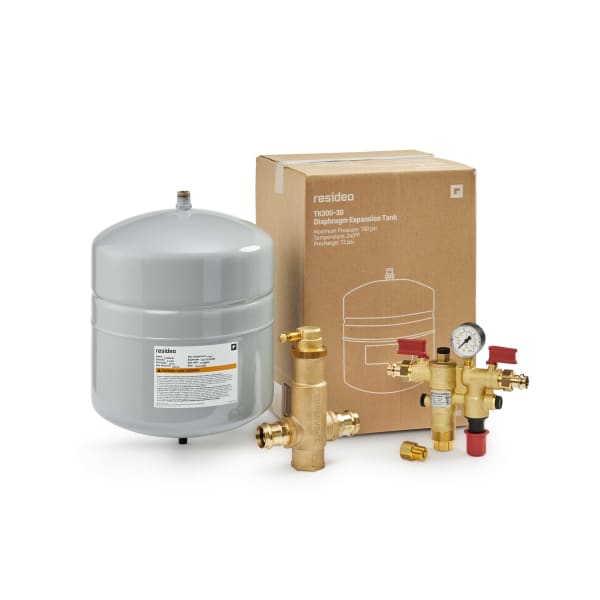

TK30PV100PNKP/U TK30 Boiler Trim Kit with 1" Press SuperVent®, Press NK300S Combo

TK30PV100PNKP/U TK30 Boiler Trim Kit with 1" Press SuperVent®, Press NK300S Combo

Part #
TK30PV100PNKP/U
UPC
194159005655
$437.81

Available · ships in 1–2 business days

Free shipping to the contiguous US. No minimum.

Connection
Tank: Male NPT; SuperVent: Press; Combo Valve: Press

Full specifications 4 manufacturer documents

Gas, electrical and venting work should be done by a licensed professional.

  • 30-day returnsWithin 30 days, in the original packaging
  • Help from real peopleCall or email us before or after you order
  • Secure checkoutCard details never touch our servers
Need help matching a part?Call +1 (219) 319-0174 · Mon–Fri, 8 am – 5 pm ET

Product details

TK30PV100PNKP/U — TK30 Boiler Trim Kit with 1" Press SuperVent®, Press NK300S Combo.

Igniters, sensors, blowers, trim kits, low water cut-offs and service parts. Check the boiler model and serial number before ordering.

Specifications

Part Number TK30PV100PNKP/U
Type TK30 boiler trim kit
Includes TK300-30, PV100P, NK300S-100UP
Tank volume 4.4 gal
Acceptance volume 2.5 gal
Tank diameter 11 in
Tank height 15 1/2 in
Connections Tank: Male NPT; SuperVent: Press; Combo Valve: Press
Connection sizes SuperVent: 1 in; Tank: 1/2 in
Maximum temperature 240 F
Maximum pressure 100 psi
UPC 194159005655
Application Boiler Installation
Compatible With Hot Water, Solar
Manufacturer Warranty 1 Year
Operating Temperature (Max) 240 °F, 115 °C
Connection Size-SuperVent 1 in
Connection Size-Tank 1/2 in
Connection Type-SuperVent Pro Press
Operating Pressure (Max) 100 psi, 689 kPa
Pre-Charge Pressure 12 psi, 83 kPa
Tank Safe Operating Pressure (Max) 100 psi|689 kPa
Product Diameter 11 in, 279 mm
Volume 4.4 gal, 16.7 L
Maximum Acceptance Volume 2.5 gal|9.5 L
Box Height 15.5 in, 394 mm
Box Weight 16.0 lb|7.3 kg

Ratings & details

  • Tank Kit Caution Sheet (English) (0.2MB PDF)

Manufacturer documents
