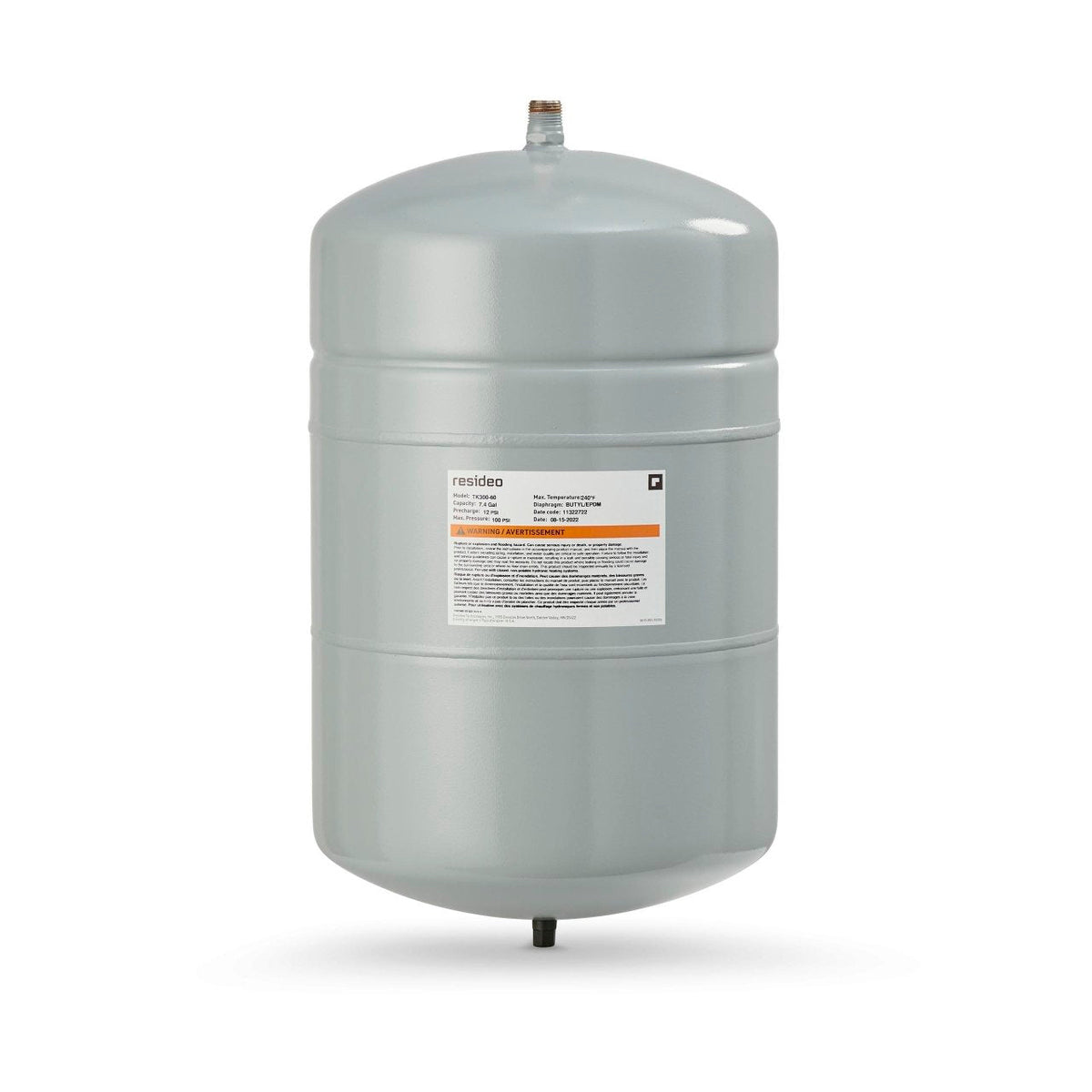

TK300-60/U Heating Expansion Tank, 7.6 Gallon, 1/2 in Male NPT
- Part #
- TK300-60/U
- UPC
- 642031396518
$151.90
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Size
- 1/2 in
- Material
- Steel
- Connection
- Male NPT
- Finish
- Gray
Full specifications 2 manufacturer documents
Gas, electrical and venting work should be done by a licensed professional.
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
TK300-60/U — Heating Expansion Tank, 7.6 Gallon, 1/2 in Male NPT.
Air and dirt separators, hydraulic separators, magnetic filters, vents, expansion tanks, fill systems and system treatment that protect a hydronic loop.
Specifications
| Part Number | TK300-60/U |
|---|---|
| Application | Thermal Expansion |
| Compatible With | Closed Heating Systems |
| Operating Temperature (Max) | 240 °F, 115 °C |
| Tank Safe Operating Pressure (Max) | 100 psi, 689 kPa |
| Connection Size | 1/2 in |
| Connection Type | Male NPT |
| Connector Type | Male |
| Manufacturer Warranty | 7 Years |
| Color | Gray |
| Body Material | Steel |
| Diaphragm Material | Butyl/EPDM Compound |
| Maximum Acceptance Volume | 2.7 gal, 10.2 L |
| Product Height | 23 in, 584 mm |
| Product Weight | 14 lb, 6.4 kg |
| Pre-Charge Pressure | 12 psi, 83 kPa |
| UPC | 642031396518 |
