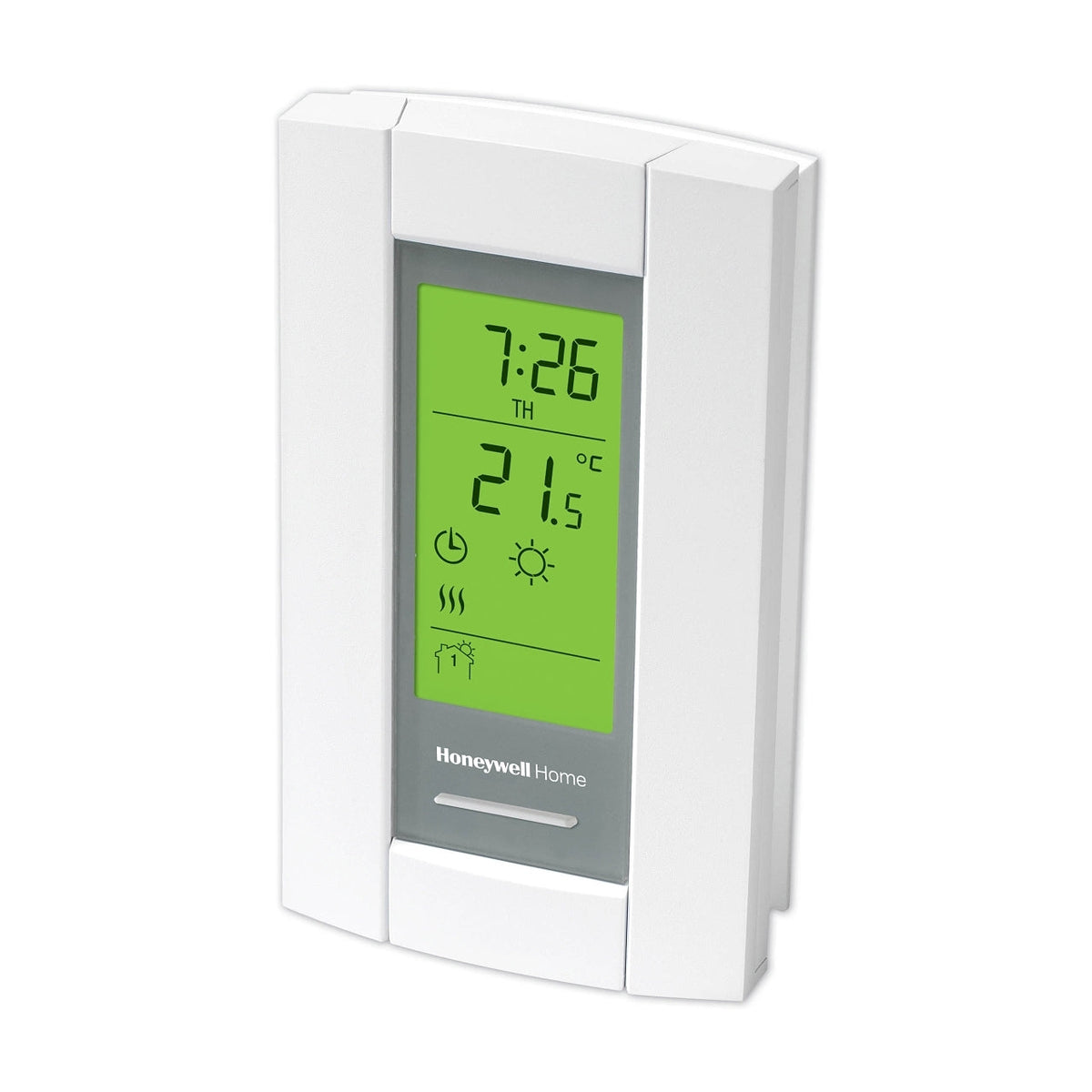

TH115-A-024T-15S/U Low Voltage 7-Day Programmable Thermostat, 24 V, 0.5 A, 15-Second Cycles
- Part #
- TH115-A-024T-15S/U
- UPC
- 775264115103
$141.33
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Finish
- White
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
TH115-A-024T-15S/U — Low Voltage 7-Day Programmable Thermostat, 24 V, 0.5 A, 15-Second Cycles.
Smart Wi-Fi, programmable, non-programmable and line-voltage thermostats. Check your system type (conventional, heat pump, millivolt or line voltage) and whether you have a C-wire.
Specifications
| Part Number | TH115-A-024T-15S/U |
|---|---|
| Application | Convector; Baseboard heater; Radiant ceiling; Electric Heating |
| Thermostat Type | Programmable, Low Voltage |
| Smart Home Integration | No |
| Display Type | LCD Screen |
| Display Time Format | 24 Hour, 12 Hour (AM/PM) |
| Displayed Information | Indoor Temperature, Time, Day, Mode Icons, Heating Intensity Indicator |
| Modes of Operation | Heat, Off |
| Program Type | 7-Day Programmable |
| Power Supply | Hardwired |
| Manufacturer Warranty | 3 Years |
| Includes | Includes mounting hardware |
| For Use With | Aube RT850T Series Solid State Relays |
| Z-Wave Specifications | Not Applicable |
| RedLINK | No |
| Color | White |
| Sensor Type | Thermistor |
| Ambient Operating Temperature (Max) | 120 °F, 49 °C |
| Ambient Operating Temperature (Min) | 32 °F, 0 °C |
| Differential Temperature | ± 1 °F, ± 0.5 °C |
| Backlight Options | Backlight Button |
| Clock Type | Year Clock |
| Mounting Type | Vertical Mount |
| Set point Temperature (Max) | 86 °F, 30 °C |
| Set point Temperature (Min) | 40 °F, 5 °C |
| Switch Type | External solid state relay |
| Product Height | 4.9 in, 2.8 mm |
| Product Length | 2.8 in, 70 mm |
| Product Width | 0.9 in, 23 mm |
| Product Depth | 1.5 in, 38 mm |
| UPC | 775264115103 |
| Country of Origin | CN |
