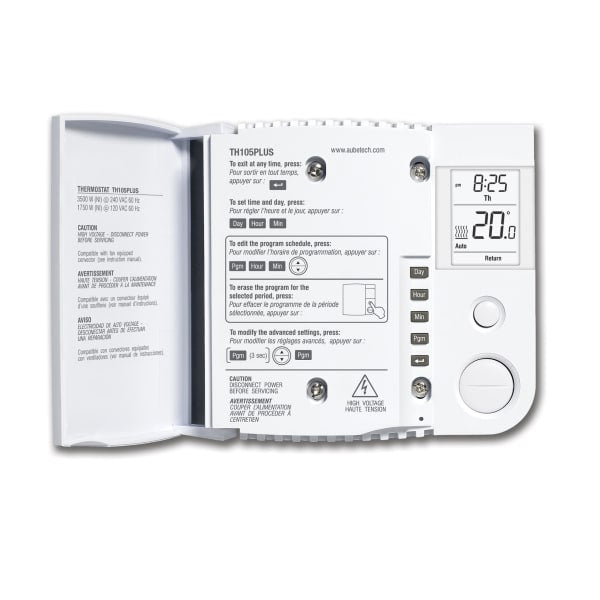

TH105PLUS/U Line Volt 5-2 Programmable Thermostat with TRIAC for Electric Heat
- Part #
- TH105PLUS/U
- UPC
- 775264105005
$83.10
Available · ships in 1–2 business days
Free shipping to the contiguous US. No minimum.
Delivery estimate
- Order
- Ships
- Arrives
Estimate for ground shipping within the contiguous US.
- Finish
- White
Full specifications 3 manufacturer documents
- 30-day returnsWithin 30 days, in the original packaging
- Help from real peopleCall or email us before or after you order
- Secure checkoutCard details never touch our servers
Product details
TH105PLUS/U — Line Volt 5-2 Programmable Thermostat with TRIAC for Electric Heat.
Smart Wi-Fi, programmable, non-programmable and line-voltage thermostats. Check your system type (conventional, heat pump, millivolt or line voltage) and whether you have a C-wire.
Specifications
| Part Number | TH105PLUS/U |
|---|---|
| Type | Line-voltage thermostat |
| Control | Programmable 5-2 |
| Switching | TRIAC |
| UPC | 775264105005 |
| Application | Electric Heating; Baseboard heater; Convector or Fan-forced Heater |
| Thermostat Type | Programmable, Line Voltage |
| Smart Home Integration | No |
| Display Type | LCD Screen |
| Display Size | 5.09 sq in |
| Displayed Information | Indoor Temperature, Time, Day, Fan, Heating Intensity Indicator, Mode |
| Modes of Operation | Heat, Auto |
| Programming Features | Temporary Override, Wake Mode, Leave Mode, Return Mode, Sleep Mode, Away Mode |
| Program Type | 5-2 Programmable |
| Energy Star Certified | No |
| Power Supply | Hardwired |
| Power Source | Line Voltage |
| Frequency | 60 Hz |
| Includes | 2 6-32 Mounting Screws, 2 Solderless connectors |
| Z-Wave Specifications | Not Applicable |
| RedLINK | No |
| Color | White |
| Sensor Type | Thermistor |
| Ambient Operating Temperature (Min) | 32 °F, 0 °C |
| Differential Temperature | 0.27 °F, 0.15 °C |
| Clock Type | Week Clock |
| Temperature Accuracy | 0.27 °F, 0.15 °C, Fan Forced Heaters: 0.9 °F, Fan Forced Heaters: 0.5 °C |
| Set point Temperature (Max) | 86 °F, 30 °C |
| Set point Temperature (Min) | 41 °F, 5 °C |
| Switch Action | SPST |
| Mounting Location | J-Box |
| Switch Type | Triac |
| Product Height | 4.9 in, 124 mm |
| Product Length | 5 in, 127 mm |
| Product Width | 1.4 in, 36 mm |
| Product Depth | 1.4 in, 36 mm |
